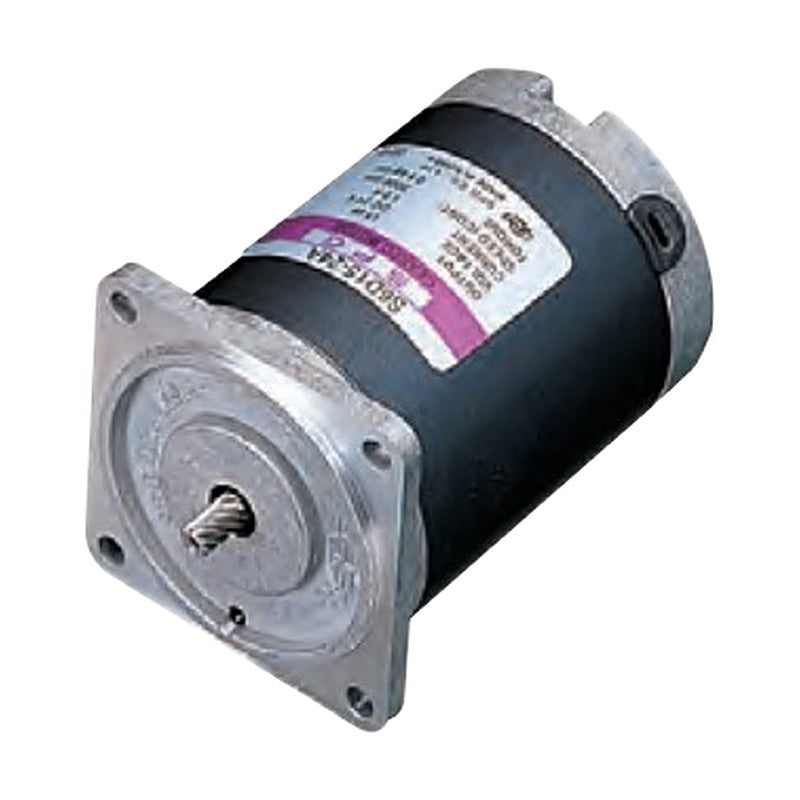

SPG S6D 60 mm Standard DC Motors (6-15 W)

SPG S6D 60 mm Standard DC Motors (6-15 W)

SPG S6D series 60 mm square-flange permanent-magnet DC motors, 6 W to 15 W, for 12/24/90 V DC.

Key features

  • Output range 6 W to 15 W in 60 mm square flange frame
  • Supply voltages 12, 24 and 90 V DC
  • Pinion (geared-type) shaft for S6 A-type gearheads (S6DA/S6SA/S6KA), sold separately
  • Straight, D-cut round shafts for direct drive
  • Rotation reversed by supply polarity (red/black leads)
  • Run duty 2000 h at rated voltage, no load

Specifications

Motor type Permanent magnet brushed DC motor
Frame size 60 mm square
Rated speed Approx. 2260-3100 rpm
Run duty 2000 h
Matching gearheads S6 A-type gearheads (S6DA/S6SA/S6KA) (separate)
Code example S6D06-24A
Source SPG DC Geared Motor catalog, p. 5, 16-19
S6D06-12A Output: 6 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-12S Output: 6 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-12D Output: 6 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-24A Output: 6 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-24S Output: 6 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-24D Output: 6 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-90A Output: 6 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D06-90S Output: 6 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D06-90D Output: 6 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D10-12A Output: 10 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-12S Output: 10 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-12D Output: 10 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-24A Output: 10 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-24S Output: 10 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-24D Output: 10 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-90A Output: 10 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D10-90S Output: 10 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D10-90D Output: 10 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D15-12A Output: 15 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-12S Output: 15 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-12D Output: 15 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-24A Output: 15 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-24S Output: 15 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-24D Output: 15 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-90A Output: 15 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
S6D15-90S Output: 15 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
S6D15-90D Output: 15 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
DC Geared MotorsSPG
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S6D 60 mm Standard DC Motors (6-15 W)

Brand SPG·DC Geared Motors

Available part numbers (27)

S6D06-12A, S6D06-12S, S6D06-12D, S6D06-24A, S6D06-24S, S6D06-24D, S6D06-90A, S6D06-90S, S6D06-90D, S6D10-12A + 17 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6D06-12AOutput: 6 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-12SOutput: 6 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-12DOutput: 6 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.021 N-m, 0.80 A
S6D06-24AOutput: 6 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-24SOutput: 6 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-24DOutput: 6 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2950 rpm, 0.020 N-m, 0.50 A
S6D06-90AOutput: 6 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D06-90SOutput: 6 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D06-90DOutput: 6 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.021 N-m, 0.15 A
S6D10-12AOutput: 10 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-12SOutput: 10 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-12DOutput: 10 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.032 N-m, 1.60 A
S6D10-24AOutput: 10 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-24SOutput: 10 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-24DOutput: 10 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.032 N-m, 0.80 A
S6D10-90AOutput: 10 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D10-90SOutput: 10 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D10-90DOutput: 10 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 3100 rpm, 0.030 N-m, 0.20 A
S6D15-12AOutput: 15 W | Voltage: 12 V DC | Shaft: Pinion for A gearhead | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-12SOutput: 15 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-12DOutput: 15 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2950 rpm, 0.049 N-m, 2.00 A
S6D15-24AOutput: 15 W | Voltage: 24 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-24SOutput: 15 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-24DOutput: 15 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.049 N-m, 1.00 A
S6D15-90AOutput: 15 W | Voltage: 90 V DC | Shaft: Pinion for A gearhead | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
S6D15-90SOutput: 15 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
S6D15-90DOutput: 15 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.049 N-m, 0.30 A
