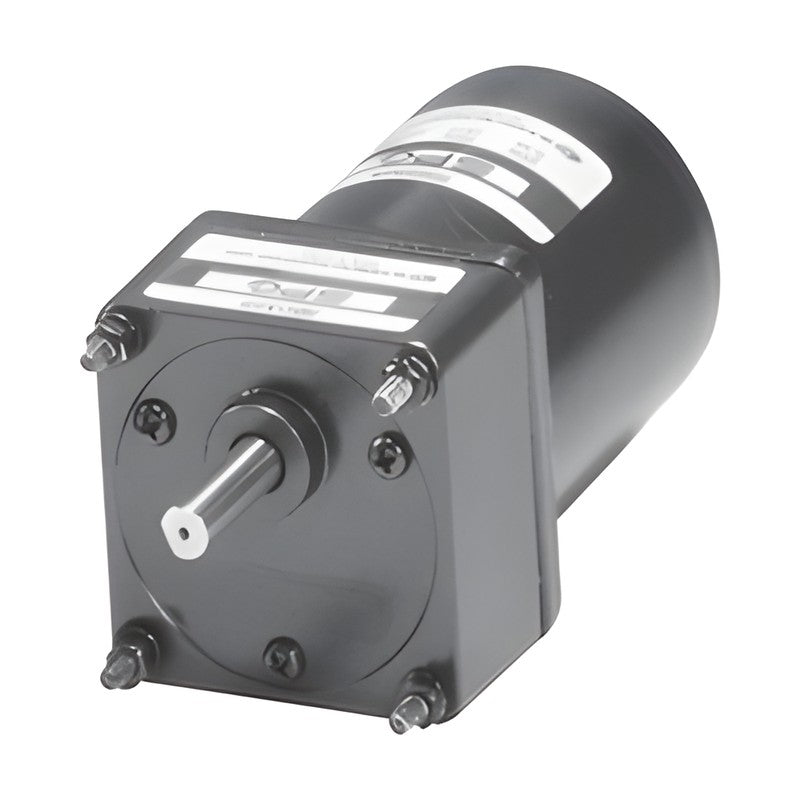

• SPG SG6KA 60 mm Gearheads (Key/D-cut/Straight, 1/5-1/360)
1 1

SPG S6SA/S6DA/S6KA 60 mm Gearheads (for 6 W Motors)

SPG S6SA/S6DA/S6KA 60 mm Gearheads (for 6 W Motors)

SPG 60 mm A-type parallel-shaft gearheads for 6 W S6I06G motors, 25 ratios from 1/3 to 1/250 in three bearing versions.

Key features

  • Code S6<shaft>A<ratio><bearing>: straight S, D-cut D or key K output shaft
  • Bearing letter: B1 all ball bearing, B ball + metal bearing, M metal bearing
  • Permissible torque of motor + gearhead up to 2.942 N·m (30 kg·cm)
  • S6GX10B inter-decimal gearhead (1/10) for ratios beyond 1/250

Specifications

Frame size 60 mm square
Gear type A (6-25 W)
Applicable motor S6I06G (6 W)
Output shaft dia. 8 mm
Weight 0.24-0.33 kg
Source SPG Standard AC Geared Motor catalog, p. 44-45
S6SA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA250B1 Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA250B Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA250M Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: Metal bearing
S6DA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA250B1 Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA250B Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA250M Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6KA3B1 Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA3M Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA3.6B1 Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA3.6M Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA5B1 Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA5M Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA6B1 Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA6M Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA7.5B1 Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA7.5M Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA9B1 Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA9M Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA10B1 Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA10M Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA12.5B1 Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA12.5M Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA15B1 Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA15M Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA18B1 Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA18M Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA20B1 Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA20M Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA25B1 Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA25M Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA30B1 Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA30M Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA36B1 Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA36M Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA40B1 Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA40M Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA50B1 Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA50M Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA60B1 Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA60M Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA75B1 Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA75M Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA90B1 Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA90M Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA100B1 Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA100M Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA120B1 Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA120M Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA150B1 Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA150M Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA180B1 Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA180M Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA200B1 Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA200M Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA250B1 Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA250B Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA250M Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: Metal bearing
GearheadsSPG
225 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S6SA/S6DA/S6KA 60 mm Gearheads (for 6 W Motors)

Brand SPG·Gearheads

Available part numbers (225)

S6SA3B1, S6SA3B, S6SA3M, S6SA3.6B1, S6SA3.6B, S6SA3.6M, S6SA5B1, S6SA5B, S6SA5M, S6SA6B1 + 215 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6SA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight | Bearing: Metal bearing
S6SA250B1Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: All ball bearing
S6SA250BRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: Ball + metal bearing
S6SA250MRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Straight | Bearing: Metal bearing
S6DA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6DA250B1Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: All ball bearing
S6DA250BRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: Ball + metal bearing
S6DA250MRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: D-cut | Bearing: Metal bearing
S6KA3B1Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA3BRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA3MRatio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA3.6B1Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA3.6BRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA3.6MRatio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA5B1Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA5BRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA5MRatio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA6B1Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA6BRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA6MRatio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA7.5B1Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA7.5BRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA7.5MRatio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA9B1Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA9BRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA9MRatio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA10B1Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA10BRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA10MRatio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA12.5B1Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA12.5BRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA12.5MRatio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA15B1Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA15BRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA15MRatio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA18B1Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA18BRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA18MRatio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA20B1Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA20BRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA20MRatio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA25B1Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA25BRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA25MRatio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA30B1Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA30BRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA30MRatio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA36B1Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA36BRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA36MRatio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA40B1Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA40BRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA40MRatio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA50B1Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA50BRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA50MRatio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA60B1Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA60BRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA60MRatio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA75B1Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA75BRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA75MRatio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA90B1Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA90BRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA90MRatio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA100B1Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA100BRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA100MRatio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA120B1Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA120BRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA120MRatio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA150B1Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA150BRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA150MRatio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA180B1Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA180BRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA180MRatio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA200B1Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA200BRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA200MRatio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key | Bearing: Metal bearing
S6KA250B1Ratio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: All ball bearing
S6KA250BRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: Ball + metal bearing
S6KA250MRatio: 1/250 | Speed 50/60 Hz: 6 / 7.2 rpm | Output shaft: Key | Bearing: Metal bearing

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
