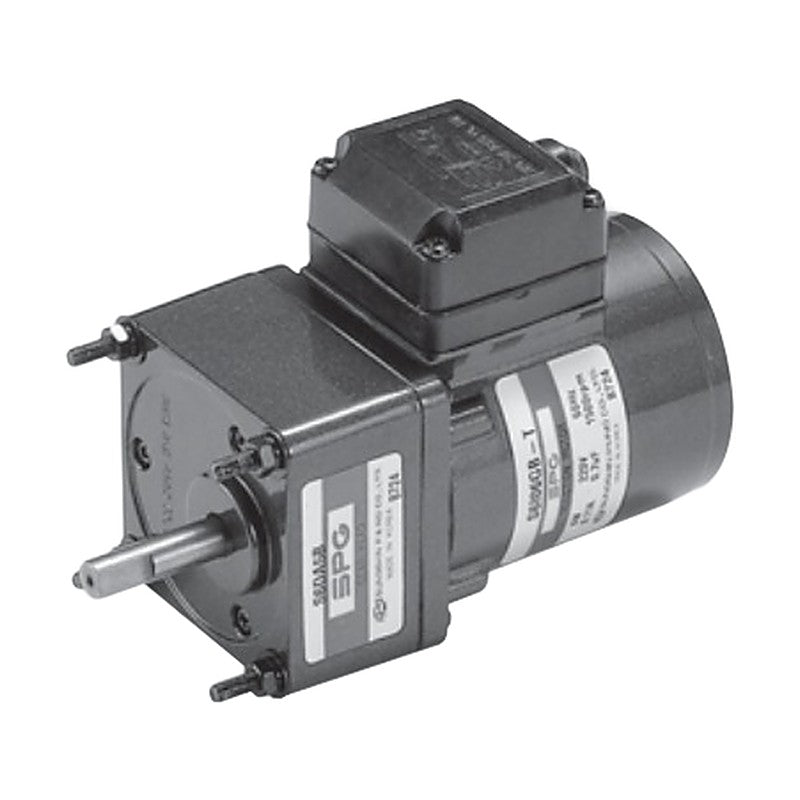

SPG 60 mm Terminal Box Induction Motors (6 W)

SPG 60 mm Terminal Box Induction Motors (6 W)

SPG 60 mm induction motors in terminal box construction, 6 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type terminal box with terminal block and cord bush, cable dia. 6.8-8.6 mm
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut round shafts per the catalog shaft table
  • CE suffix: CE certified model; Class B insulation, 4-pole
  • Continuous-rated induction motors; 3-phase versions for 200/220/380-440 V where listed

Specifications

Frame size 60 mm sq.
Output 6 W
Motor type Induction motor, terminal box type
Duty Continuous
Terminal box T: terminal block, cord bush (plastic)
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 124-126
S6I06GA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6I06SX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6I06DX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
AC Induction MotorsSPG
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 60 mm Terminal Box Induction Motors (6 W)

Brand SPG·AC Induction Motors

Available part numbers (21)

S6I06GA-T, S6I06SA-T, S6I06DA-T, S6I06GB-T, S6I06SB-T, S6I06DB-T, S6I06GC-T, S6I06SC-T, S6I06DC-T, S6I06GD-T + 11 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6I06GA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6I06SX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S6I06DX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S6I06GX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6I06SX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6I06DX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
