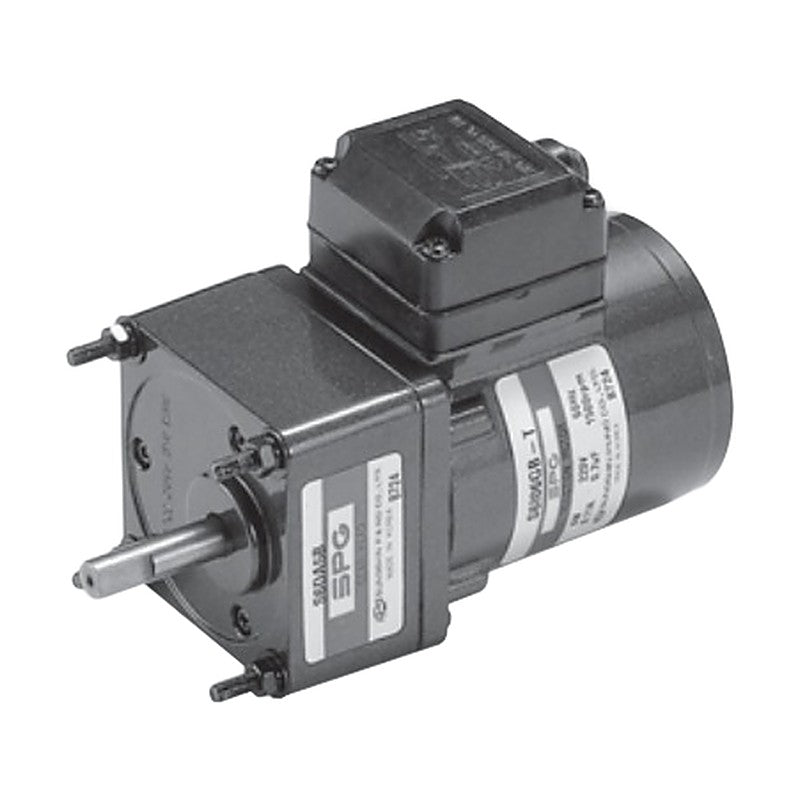

SPG 60 mm Terminal Box Reversible Motors (6 W)

SPG 60 mm Terminal Box Reversible Motors (6 W)

SPG 60 mm reversible motors in terminal box construction, 6 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type terminal box with terminal block and cord bush, cable dia. 6.8-8.6 mm
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut round shafts per the catalog shaft table
  • (TP) suffix: built-in automatic-return thermal protector; CE suffix: CE certified model
  • Reversible motors with built-in friction brake for instant CW/CCW reversal, 30 min rating

Specifications

Frame size 60 mm sq.
Output 6 W
Motor type Reversible motor, terminal box type
Duty 30 min rating
Terminal box T: terminal block, cord bush (plastic)
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 124-126
S6R06GA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
Reversible MotorsSPG
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 60 mm Terminal Box Reversible Motors (6 W)

Brand SPG·Reversible Motors

Available part numbers (36)

S6R06GA-T, S6R06SA-T, S6R06DA-T, S6R06GA-TCE, S6R06SA-TCE, S6R06DA-TCE, S6R06GB-T, S6R06SB-T, S6R06DB-T, S6R06GB-TCE + 26 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6R06GA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DA-TVoltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GA-TCEVoltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SA-TCEVoltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DA-TCEVoltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DB-TVoltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GB-TCEVoltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SB-TCEVoltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DB-TCEVoltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DC-TVoltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GC-TCEVoltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SC-TCEVoltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DC-TCEVoltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DD-TVoltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GD-TCEVoltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SD-TCEVoltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DD-TCEVoltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DE-TVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GE-TCEVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SE-TCEVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DE-TCEVoltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S6R06GX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S6R06SX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S6R06DX-TVoltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S6R06GX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S6R06SX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S6R06DX-TCEVoltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
