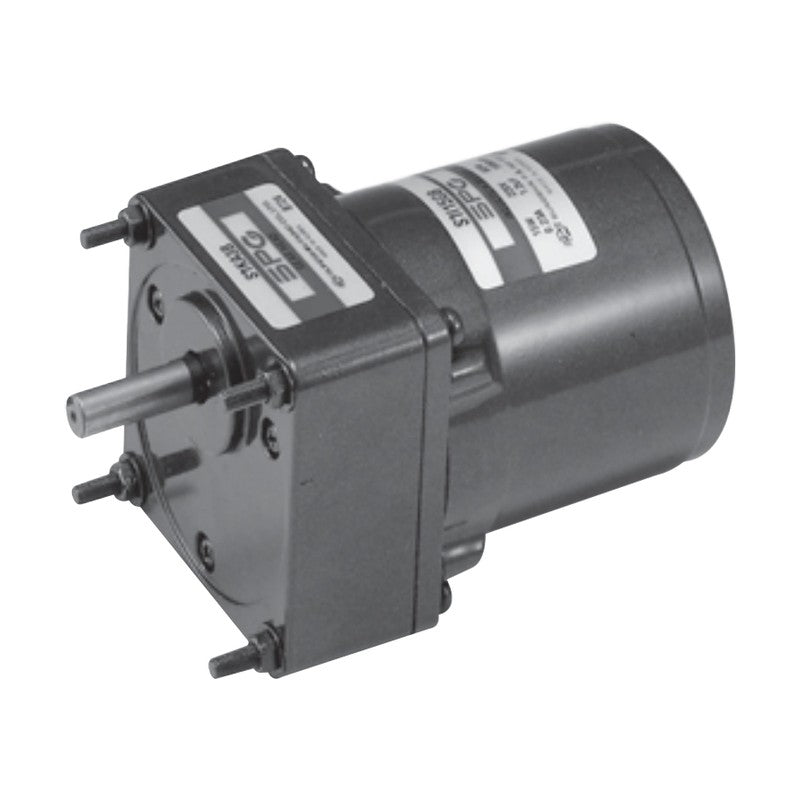

SPG S7I 70 mm Induction Motors (Lead Wire Type, 15 W)

SPG S7I 70 mm Induction Motors (Lead Wire Type, 15 W)

SPG S7I series 70 mm square, 4-pole 15 W induction motors for continuous unidirectional duty, single-phase and three-phase.

Key features

  • Pinion (gear) shaft G for S7A gearheads (1/3-1/200); round S and D-cut D shafts for direct drive
  • Voltage letter: A 110 V, B 220 V, C 100 V, D 200 V, E 100/115 V, X 220/240 V single-phase; T 220 V three-phase
  • (TP) suffix: standard motor with thermal protector; CE suffix: CE certified with built-in thermal protector
  • S7I15GE is UL recognized (UL file E172720), thermally protected; S7I15GE and S7I15GX have built-in TP
  • Inter-decimal gearhead S7GX10B (1/10) available for higher reduction

Specifications

Frame size 70 mm square
Motor type Single/three-phase induction motor
Poles 4
Duty Continuous
Connection Lead wire, 300 mm
Rated torque 0.089-0.125 N·m
Motor weight 1.04 kg
Output 15 W
Source SPG Standard AC Geared Motor catalog, p. 46-47
S7I15GA Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15GA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: Thermal protector (TP)
S7I15GACE Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GB Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15GB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: Thermal protector (TP)
S7I15GBCE Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GC Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15GC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: Thermal protector (TP)
S7I15GCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GD Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15GD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: Thermal protector (TP)
S7I15GDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: UL recognized (GE type)
S7I15GECE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GX Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15GXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear) shaft | Variant: CE marked
S7I15GT Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear) shaft | Variant: Standard
S7I15SA Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Variant: Standard
S7I15SA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Variant: Thermal protector (TP)
S7I15SACE Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15SB Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Variant: Standard
S7I15SB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Variant: Thermal protector (TP)
S7I15SBCE Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15SC Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Variant: Standard
S7I15SC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Variant: Thermal protector (TP)
S7I15SCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15SD Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Variant: Standard
S7I15SD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Variant: Thermal protector (TP)
S7I15SDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15SE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: Round (straight) | Variant: UL recognized (GE type)
S7I15SECE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15SX Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Variant: Standard
S7I15SXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Variant: CE marked
S7I15ST Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Variant: Standard
S7I15DA Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Variant: Standard
S7I15DA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Variant: Thermal protector (TP)
S7I15DACE Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Variant: CE marked
S7I15DB Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Variant: Standard
S7I15DB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Variant: Thermal protector (TP)
S7I15DBCE Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Variant: CE marked
S7I15DC Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Variant: Standard
S7I15DC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Variant: Thermal protector (TP)
S7I15DCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Variant: CE marked
S7I15DD Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Variant: Standard
S7I15DD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Variant: Thermal protector (TP)
S7I15DDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Variant: CE marked
S7I15DE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: D-cut | Variant: UL recognized (GE type)
S7I15DECE Voltage: 1-ph 100 V 50/60 Hz, 115 V 60 Hz | Shaft: D-cut | Variant: CE marked
S7I15DX Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Variant: Standard
S7I15DXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Variant: CE marked
S7I15DT Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Variant: Standard
