• SPG 70 mm Terminal Box Induction Motors (15 W)
1 1

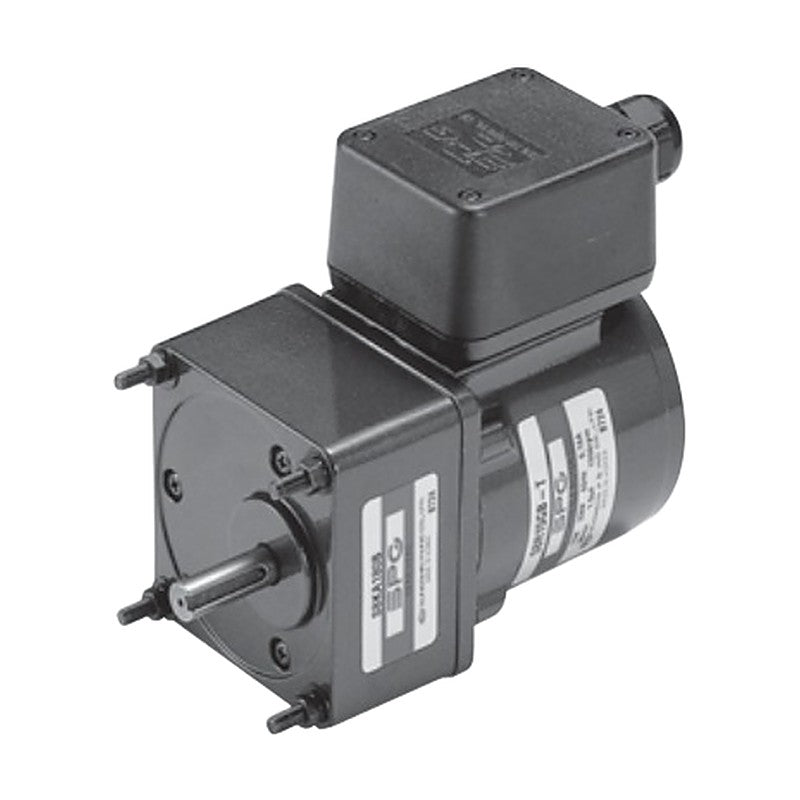

SPG 70 mm Terminal Box Induction Motors (15 W)

SPG 70 mm Terminal Box Induction Motors (15 W)

SPG 70 mm induction motors in terminal box construction, 15 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type terminal box with terminal block and cord bush, cable dia. 6.8-8.6 mm
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut round shafts per the catalog shaft table
  • CE suffix: CE certified model; Class B insulation, 4-pole
  • Continuous-rated induction motors; 3-phase versions for 200/220/380-440 V where listed

Specifications

Frame size 70 mm sq.
Output 15 W
Motor type Induction motor, terminal box type
Duty Continuous
Terminal box T: terminal block, cord bush (plastic)
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 127-129
S7I15GA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7I15SA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S7I15DA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7I15GB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7I15SB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S7I15DB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7I15GC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7I15SC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S7I15DC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7I15GD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7I15SD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S7I15DD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7I15GX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7I15SX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S7I15DX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S7I15GX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7I15SX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7I15DX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
AC Induction MotorsSPG
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 70 mm Terminal Box Induction Motors (15 W)

Brand SPG·AC Induction Motors

Available part numbers (18)

S7I15GA-T, S7I15SA-T, S7I15DA-T, S7I15GB-T, S7I15SB-T, S7I15DB-T, S7I15GC-T, S7I15SC-T, S7I15DC-T, S7I15GD-T + 8 more — see full table ↓
