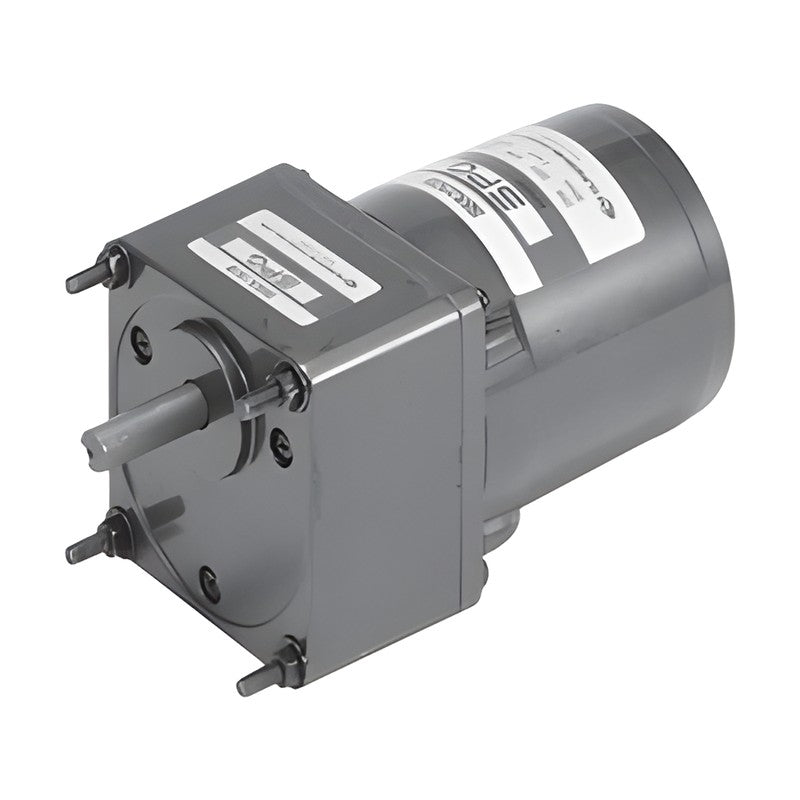

SPG 70 mm Reversible Motors (Lead Wire Type, 15 W)

SPG 70 mm Reversible Motors (Lead Wire Type, 15 W)

SPG S7R series 70 mm square single-phase reversible motors, 15 W, lead wire type, for frequent forward/reverse operation with a gearhead.

Key features

  • Capacitor-run single-phase motor with a built-in friction brake for quick reversing and reduced overrun
  • Rated for 30-minute duty; CW/CCW switching via capacitor connection
  • Output shaft types by code letter: Pinion (gear type), Round (straight), D-cut
  • (TP) models carry a built-in thermal protector; CE models are thermally/impedance protected with rear cover
  • Matching S7xA gearheads (1:3-1:200) and S7GX10B 1:10 decimal gearhead sold separately

Specifications

Frame size 70 mm sq.
Output 15 W
Motor type Reversible (capacitor-run, single-phase)
Poles 4
Duty 30 min
Built-in brake Friction brake (brake block + spring)
Lead wire 300 mm lead wire type
Compatible gearheads S7xA 1:3-1:200, S7GX10B decimal
Motor weight 1.04 kg
Source SPG Standard AC Geared Motor catalog, p. 78-79
S7R15GA Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Version: Standard
S7R15GA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Version: Thermally protected (TP)
S7R15GACE Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SA Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Version: Standard
S7R15SA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Version: Thermally protected (TP)
S7R15SACE Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DA Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Version: Standard
S7R15DA(TP) Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Version: Thermally protected (TP)
S7R15DACE Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Version: CE, thermally protected
S7R15GB Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Version: Standard
S7R15GB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Version: Thermally protected (TP)
S7R15GBCE Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SB Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Version: Standard
S7R15SB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Version: Thermally protected (TP)
S7R15SBCE Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DB Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Version: Standard
S7R15DB(TP) Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Version: Thermally protected (TP)
S7R15DBCE Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Version: CE, thermally protected
S7R15GC Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Version: Standard
S7R15GC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Version: Thermally protected (TP)
S7R15GCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SC Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Version: Standard
S7R15SC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Version: Thermally protected (TP)
S7R15SCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DC Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Version: Standard
S7R15DC(TP) Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Version: Thermally protected (TP)
S7R15DCCE Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Version: CE, thermally protected
S7R15GD Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Version: Standard
S7R15GD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Version: Thermally protected (TP)
S7R15GDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SD Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Version: Standard
S7R15SD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Version: Thermally protected (TP)
S7R15SDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DD Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Version: Standard
S7R15DD(TP) Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Version: Thermally protected (TP)
S7R15DDCE Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Version: CE, thermally protected
S7R15GE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Version: UL, thermally protected
S7R15GECE Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Version: UL, thermally protected
S7R15SECE Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Version: UL, thermally protected
S7R15DECE Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Version: CE, thermally protected
S7R15GX Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Version: Thermally protected
S7R15GXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Version: CE, thermally protected
S7R15SX Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Version: Thermally protected
S7R15SXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Version: CE, thermally protected
S7R15DX Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Version: Thermally protected
S7R15DXCE Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Version: CE, thermally protected
