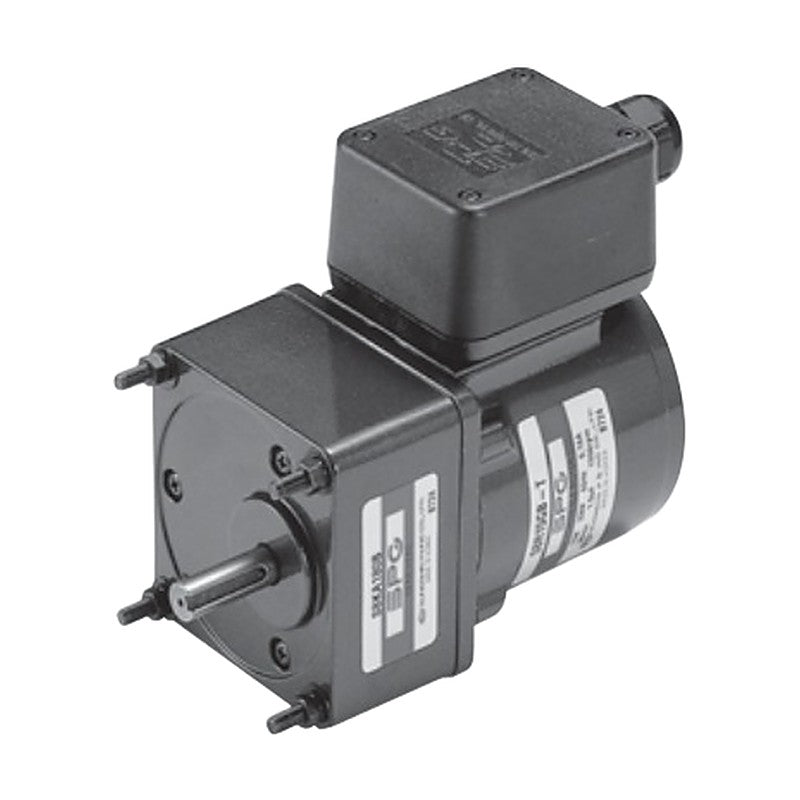

SPG 70 mm Terminal Box Reversible Motors (15 W)

SPG 70 mm Terminal Box Reversible Motors (15 W)

SPG 70 mm reversible motors in terminal box construction, 15 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type terminal box with terminal block and cord bush, cable dia. 6.8-8.6 mm
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut round shafts per the catalog shaft table
  • (TP) suffix: built-in automatic-return thermal protector; CE suffix: CE certified model
  • Reversible motors with built-in friction brake for instant CW/CCW reversal, 30 min rating

Specifications

Frame size 70 mm sq.
Output 15 W
Motor type Reversible motor, terminal box type
Duty 30 min rating
Terminal box T: terminal block, cord bush (plastic)
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 127-129
S7R15GA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DA-T Voltage: 1-ph 110 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GA-T(TP) Voltage: 1-ph 110 V 60 Hz | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7R15SA-T(TP) Voltage: 1-ph 110 V 60 Hz | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7R15DA-T(TP) Voltage: 1-ph 110 V 60 Hz | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7R15GA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DA-TCE Voltage: 1-ph 110 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S7R15GB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DB-T Voltage: 1-ph 220 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GB-T(TP) Voltage: 1-ph 220 V 60 Hz | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7R15SB-T(TP) Voltage: 1-ph 220 V 60 Hz | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7R15DB-T(TP) Voltage: 1-ph 220 V 60 Hz | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7R15GB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DB-TCE Voltage: 1-ph 220 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S7R15GC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DC-T Voltage: 1-ph 100 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GC-T(TP) Voltage: 1-ph 100 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7R15SC-T(TP) Voltage: 1-ph 100 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7R15DC-T(TP) Voltage: 1-ph 100 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7R15GC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DC-TCE Voltage: 1-ph 100 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S7R15GD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DD-T Voltage: 1-ph 200 V 50/60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GD-T(TP) Voltage: 1-ph 200 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: Pinion (gear type)
S7R15SD-T(TP) Voltage: 1-ph 200 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: Straight round shaft
S7R15DD-T(TP) Voltage: 1-ph 200 V 50/60 Hz | Protection: Thermal protector (TP) | Shaft: D-cut round shaft
S7R15GD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DD-TCE Voltage: 1-ph 200 V 50/60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S7R15GE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DE-T Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DE-TCE Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Protection: CE certified type | Shaft: D-cut round shaft
S7R15GX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Pinion (gear type)
S7R15SX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: Straight round shaft
S7R15DX-T Voltage: 1-ph 220/240 V 50 Hz | Protection: Standard | Shaft: D-cut round shaft
S7R15GX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Pinion (gear type)
S7R15SX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: Straight round shaft
S7R15DX-TCE Voltage: 1-ph 220/240 V 50 Hz | Protection: CE certified type | Shaft: D-cut round shaft
