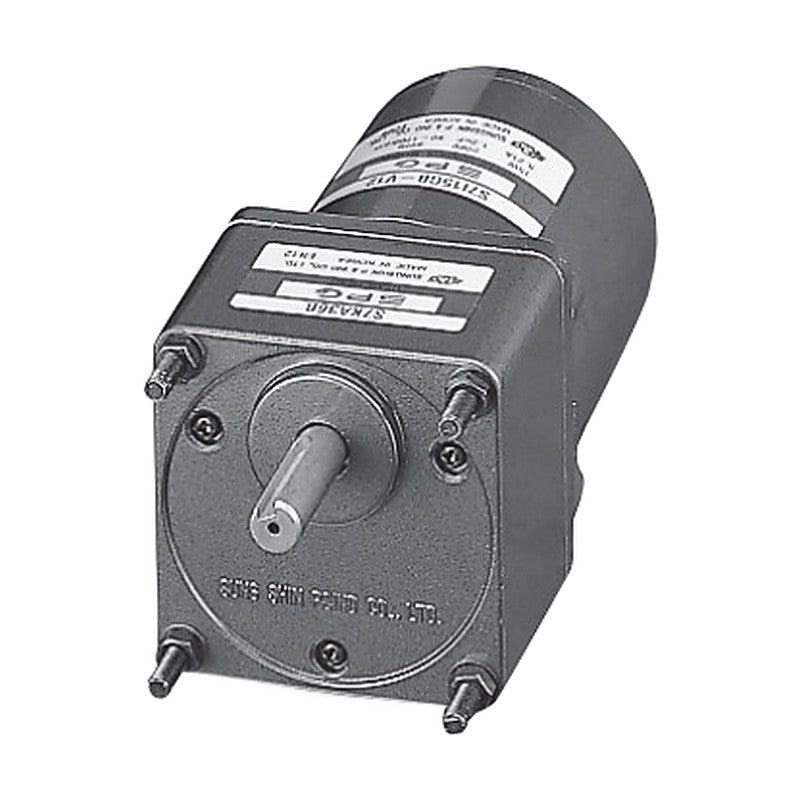

SPG 70 mm Speed Control Reversible Motors (15 W, SR/SS Control)

SPG 70 mm Speed Control Reversible Motors (15 W, SR/SS Control)

SPG 70 mm square single-phase reversible speed control motors (15 W), lead wire type, with built-in tachogenerator for use with SR or SS speed controllers.

Key features

  • Variable speed 90-1700 rpm at 60 Hz, 90-1400 rpm at 50 Hz with matching speed controller
  • -S12 motors (T.G. 12 V) pair with SR pack controllers (slow run / slow stop); -S24 motors (T.G. 24 V) pair with SS socket controllers (run/stop)
  • Pinion (G) shaft for SPG gearheads; straight (S), D-cut (D) round shafts available
  • Thermal protector (TP) and CE-certified, thermally protected (CE suffix) versions

Specifications

Motor type Speed Control Reversible Motors
Frame size 70 mm square
Output 15 W
Phase / poles Single phase, 4 poles
Duty 30 min. rating
Speed range 90-1700 rpm (60 Hz), 90-1400 rpm (50 Hz)
Permissible torque at 1200 rpm 15 W: 0.080-0.110 N.m
Capacitor 15 W: 6.0/1.5/1.2 uF (110-100 V / 200-220 V / 220-240 V X)
Lead wire length 300 mm
Matching gearheads (sold separately) S7A3 to S7A200; decimal S7GX10B
Source SPG Standard AC Geared Motor catalog, p. 265-267
S7R15GA-S12 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15GA-S12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15GA-S12CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15GB-S12 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15GB-S12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15GB-S12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15GC-S12 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15GC-S12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15GC-S12CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15GD-S12 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15GD-S12(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15GD-S12CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15GX-S12 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15GX-S12CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15SA-S12 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15SA-S12(TP) Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15SA-S12CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15SB-S12 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15SB-S12(TP) Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15SB-S12CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15SC-S12 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15SC-S12(TP) Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15SC-S12CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15SD-S12 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15SD-S12(TP) Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15SD-S12CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15SX-S12 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15SX-S12CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15DA-S12 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S7R15DA-S12(TP) Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S7R15DA-S12CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S7R15DB-S12 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S7R15DB-S12(TP) Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S7R15DB-S12CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S7R15DC-S12 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S7R15DC-S12(TP) Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S7R15DC-S12CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S7R15DD-S12 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S7R15DD-S12(TP) Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S7R15DD-S12CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S7R15DX-S12 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S7R15DX-S12CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S7R15GA-S24 Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15GA-S24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15GA-S24CE Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15GB-S24 Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15GB-S24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15GB-S24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15GC-S24 Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15GC-S24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15GC-S24CE Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15GD-S24 Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15GD-S24(TP) Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15GD-S24CE Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15GX-S24 Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15GX-S24CE Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S7R15SA-S24 Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15SA-S24(TP) Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15SA-S24CE Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15SB-S24 Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15SB-S24(TP) Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15SB-S24CE Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15SC-S24 Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15SC-S24(TP) Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15SC-S24CE Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15SD-S24 Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15SD-S24(TP) Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15SD-S24CE Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15SX-S24 Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15SX-S24CE Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S7R15DA-S24 Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S7R15DA-S24(TP) Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S7R15DA-S24CE Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S7R15DB-S24 Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S7R15DB-S24(TP) Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S7R15DB-S24CE Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S7R15DC-S24 Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S7R15DC-S24(TP) Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S7R15DC-S24CE Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S7R15DD-S24 Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S7R15DD-S24(TP) Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S7R15DD-S24CE Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S7R15DX-S24 Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S7R15DX-S24CE Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
Speed Control MotorsSPG
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 70 mm Speed Control Reversible Motors (15 W, SR/SS Control)

Brand SPG·Speed Control Motors

Available part numbers (84)

S7R15GA-S12, S7R15GA-S12(TP), S7R15GA-S12CE, S7R15GB-S12, S7R15GB-S12(TP), S7R15GB-S12CE, S7R15GC-S12, S7R15GC-S12(TP), S7R15GC-S12CE, S7R15GD-S12 + 74 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
