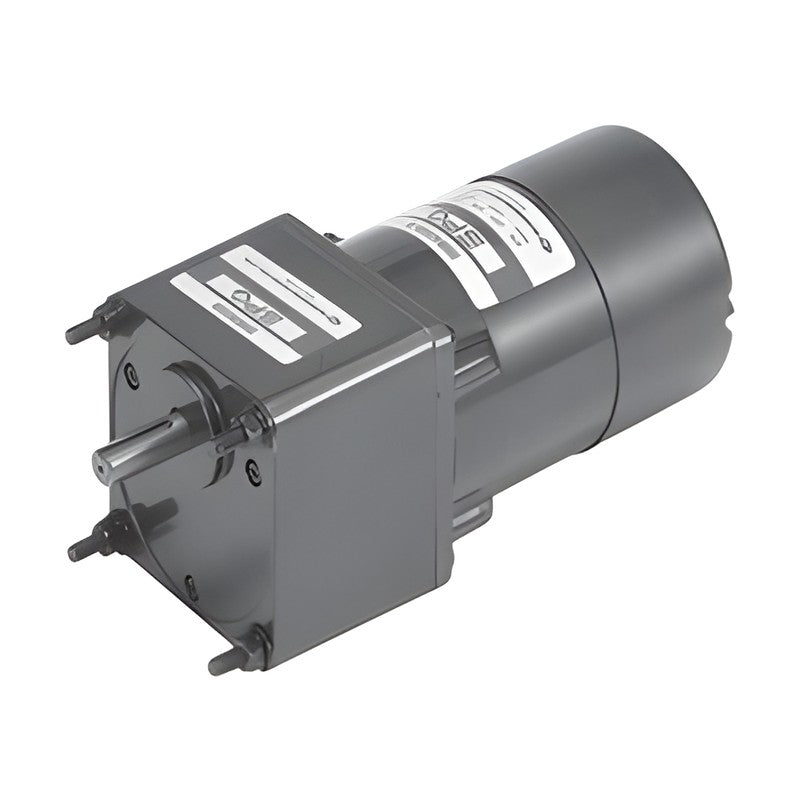

SPG 90 mm Electromagnetic Brake Motors (Lead Wire Type, 40–200 W)

SPG 90 mm Electromagnetic Brake Motors (Lead Wire Type, 40–200 W)

SPG 90 mm square electromagnetic brake motors (-E type), 40–200 W, lead wire type, with a fail-safe brake that stops instantly and holds the load at power-off.

Key features

  • Fail-safe electromagnetic brake on the motor rear holds the load when power is off
  • Brake runs from the motor's AC supply via a built-in rectifier circuit
  • Single-phase versions are reversible motors (30 min duty); three-phase versions are induction motors (continuous)
  • (TP) models carry a built-in thermal protector; CE models are thermally/impedance protected
  • Output shaft: pinion (G, with H/L pinion for 40-90 W), round (S), D-cut (D) or key (K)
  • 150-200 W three-phase models are H-type only and thermally protected

Specifications

Frame size 90 mm sq.
Motor type 1-ph reversible (30 min) / 3-ph induction (cont.)
Brake AC non-excitation (fail-safe) electromagnetic
Poles 4
Brake supply Same AC supply as motor (built-in rectifier)
Insulation class B (130 C)
Lead wire 300 mm lead wire type
Compatible gearheads 40 W: S9xB; 60/90 W: S9xC; 150-200 W: S9xH
Source SPG Standard AC Geared Motor catalog, p. 106-119
S9R40GAH-E Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GAH-E(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GAH-ECE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GAL-E Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GAL-E(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GAL-ECE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SA-E Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SA-E(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SA-ECE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DA-E Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DA-E(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DA-ECE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KA-E Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KA-E(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KA-ECE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GBH-E Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GBH-E(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GBH-ECE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GBL-E Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GBL-E(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GBL-ECE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SB-E Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SB-E(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SB-ECE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DB-E Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DB-E(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DB-ECE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KB-E Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KB-E(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KB-ECE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GCH-E Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GCH-E(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GCH-ECE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GCL-E Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GCL-E(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GCL-ECE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SC-E Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SC-E(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SC-ECE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DC-E Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DC-E(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DC-ECE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KC-E Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KC-E(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KC-ECE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GDH-E Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GDH-E(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GDH-ECE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GDL-E Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GDL-E(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GDL-ECE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SD-E Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SD-E(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SD-ECE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DD-E Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DD-E(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DD-ECE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KD-E Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KD-E(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KD-ECE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEH-E Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEH-ECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEL-E Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEL-ECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SE-E Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40SE-ECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DE-E Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40DE-ECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KE-E Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40KE-ECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GXH-E Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40GXH-ECE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GXL-E Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40GXL-ECE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SX-E Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40SX-ECE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DX-E Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40DX-ECE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KX-E Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40KX-ECE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9I40GUH-E Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GUH-ECE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GUL-E Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GUL-ECE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40SU-E Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40SU-ECE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DU-E Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DU-ECE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KU-E Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KU-ECE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GTH-E Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GTH-ECE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GTL-E Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GTL-ECE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40ST-E Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40ST-ECE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DT-E Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DT-ECE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KT-E Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KT-ECE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GSH-E Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GSH-ECE Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GSL-E Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GSL-ECE Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40SS-E Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40SS-ECE Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DS-E Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DS-ECE Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KS-E Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KS-ECE Output: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GAH-E Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GAH-E(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GAH-ECE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GAL-E Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GAL-E(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GAL-ECE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SA-E Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SA-E(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SA-ECE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DA-E Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DA-E(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DA-ECE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KA-E Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KA-E(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KA-ECE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GBH-E Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GBH-E(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GBH-ECE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GBL-E Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GBL-E(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GBL-ECE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SB-E Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SB-E(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SB-ECE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DB-E Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DB-E(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DB-ECE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KB-E Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KB-E(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KB-ECE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GCH-E Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GCH-E(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GCH-ECE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GCL-E Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GCL-E(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GCL-ECE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SC-E Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SC-E(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SC-ECE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DC-E Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DC-E(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DC-ECE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KC-E Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KC-E(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KC-ECE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GDH-E Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GDH-E(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GDH-ECE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GDL-E Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GDL-E(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GDL-ECE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SD-E Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SD-E(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SD-ECE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DD-E Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DD-E(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DD-ECE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KD-E Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KD-E(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KD-ECE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEH-E Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEH-ECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEL-E Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEL-ECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SE-E Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60SE-ECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DE-E Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60DE-ECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KE-E Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60KE-ECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GXH-E Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60GXH-ECE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GXL-E Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60GXL-ECE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SX-E Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60SX-ECE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DX-E Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60DX-ECE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KX-E Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60KX-ECE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GUH-E Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GUH-ECE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GUL-E Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GUL-ECE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60SU-E Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60SU-ECE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DU-E Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DU-ECE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KU-E Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KU-ECE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GTH-E Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GTH-ECE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GTL-E Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GTL-ECE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60ST-E Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60ST-ECE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DT-E Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DT-ECE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KT-E Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KT-ECE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GSH-E Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GSH-ECE Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GSL-E Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GSL-ECE Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60SS-E Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60SS-ECE Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DS-E Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DS-ECE Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KS-E Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KS-ECE Output: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GAH-E Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GAH-E(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GAH-ECE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GAL-E Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GAL-E(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GAL-ECE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SA-E Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SA-E(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SA-ECE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DA-E Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DA-E(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DA-ECE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KA-E Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KA-E(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KA-ECE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GBH-E Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GBH-E(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GBH-ECE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GBL-E Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GBL-E(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GBL-ECE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SB-E Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SB-E(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SB-ECE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DB-E Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DB-E(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DB-ECE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KB-E Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KB-E(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KB-ECE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GCH-E Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GCH-E(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GCH-ECE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GCL-E Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GCL-E(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GCL-ECE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SC-E Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SC-E(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SC-ECE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DC-E Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DC-E(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DC-ECE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KC-E Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KC-E(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KC-ECE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GDH-E Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GDH-E(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GDH-ECE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GDL-E Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GDL-E(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GDL-ECE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SD-E Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SD-E(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SD-ECE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DD-E Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DD-E(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DD-ECE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KD-E Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KD-E(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KD-ECE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEH-E Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEH-ECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEL-E Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEL-ECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SE-E Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90SE-ECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DE-E Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90DE-ECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KE-E Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90KE-ECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GXH-E Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90GXH-ECE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GXL-E Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90GXL-ECE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SX-E Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90SX-ECE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DX-E Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90DX-ECE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KX-E Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90KX-ECE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I90GUH-E Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GUH-ECE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GUL-E Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GUL-ECE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90SU-E Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90SU-ECE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DU-E Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DU-ECE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KU-E Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KU-ECE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GTH-E Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GTH-ECE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GTL-E Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GTL-ECE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90ST-E Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90ST-ECE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DT-E Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DT-ECE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KT-E Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KT-ECE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GSH-E Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GSH-ECE Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GSL-E Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GSL-ECE Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90SS-E Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90SS-ECE Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DS-E Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DS-ECE Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KS-E Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KS-ECE Output: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I150GU-E Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GU-ECE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150SU-E Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150SU-ECE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DU-E Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DU-ECE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KU-E Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KU-ECE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150GT-E Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GT-ECE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150ST-E Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150ST-ECE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DT-E Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DT-ECE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KT-E Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KT-ECE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150GS-E Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GS-ECE Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150SS-E Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150SS-ECE Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DS-E Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DS-ECE Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KS-E Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KS-ECE Output: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180GT-ECE Output: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I180ST-ECE Output: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180DT-ECE Output: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180KT-ECE Output: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180GS-ECE Output: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I180SS-ECE Output: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180DS-ECE Output: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180KS-ECE Output: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I200GT-E Output: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I200ST-E Output: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200DT-E Output: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200KT-E Output: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200GS-E Output: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I200SS-E Output: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200DS-E Output: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200KS-E Output: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
Brake MotorsSPG
370 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 90 mm Electromagnetic Brake Motors (Lead Wire Type, 40–200 W)

Brand SPG·Brake Motors

Available part numbers (370)

S9R40GAH-E, S9R40GAH-E(TP), S9R40GAH-ECE, S9R40GAL-E, S9R40GAL-E(TP), S9R40GAL-ECE, S9R40SA-E, S9R40SA-E(TP), S9R40SA-ECE, S9R40DA-E + 360 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S9R40GAH-EOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GAH-E(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GAH-ECEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GAL-EOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GAL-E(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GAL-ECEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SA-EOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SA-E(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SA-ECEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DA-EOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DA-E(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DA-ECEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KA-EOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KA-E(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KA-ECEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GBH-EOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GBH-E(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GBH-ECEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GBL-EOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GBL-E(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GBL-ECEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SB-EOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SB-E(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SB-ECEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DB-EOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DB-E(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DB-ECEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KB-EOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KB-E(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KB-ECEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GCH-EOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GCH-E(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GCH-ECEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GCL-EOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GCL-E(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GCL-ECEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SC-EOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SC-E(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SC-ECEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DC-EOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DC-E(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DC-ECEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KC-EOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KC-E(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KC-ECEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GDH-EOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GDH-E(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GDH-ECEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GDL-EOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40GDL-E(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40GDL-ECEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SD-EOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40SD-E(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40SD-ECEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DD-EOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40DD-E(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40DD-ECEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KD-EOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 3.0 kg-cm
S9R40KD-E(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 3.0 kg-cm
S9R40KD-ECEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEH-EOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEH-ECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEL-EOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40GEL-ECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SE-EOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40SE-ECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DE-EOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40DE-ECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KE-EOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 3.0 kg-cm
S9R40KE-ECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GXH-EOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40GXH-ECEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40GXL-EOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40GXL-ECEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40SX-EOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40SX-ECEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40DX-EOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40DX-ECEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9R40KX-EOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 3.0 kg-cm
S9R40KX-ECEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 3.0 kg-cm
S9I40GUH-EOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GUH-ECEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GUL-EOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GUL-ECEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40SU-EOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40SU-ECEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DU-EOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DU-ECEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KU-EOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KU-ECEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GTH-EOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GTH-ECEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GTL-EOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GTL-ECEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40ST-EOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40ST-ECEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DT-EOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DT-ECEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KT-EOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KT-ECEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GSH-EOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GSH-ECEOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40GSL-EOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40GSL-ECEOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40SS-EOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40SS-ECEOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40DS-EOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40DS-ECEOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I40KS-EOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I40KS-ECEOutput: 40 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GAH-EOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GAH-E(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GAH-ECEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GAL-EOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GAL-E(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GAL-ECEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SA-EOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SA-E(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SA-ECEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DA-EOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DA-E(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DA-ECEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KA-EOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KA-E(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KA-ECEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GBH-EOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GBH-E(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GBH-ECEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GBL-EOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GBL-E(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GBL-ECEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SB-EOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SB-E(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SB-ECEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DB-EOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DB-E(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DB-ECEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KB-EOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KB-E(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KB-ECEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GCH-EOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GCH-E(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GCH-ECEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GCL-EOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GCL-E(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GCL-ECEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SC-EOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SC-E(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SC-ECEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DC-EOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DC-E(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DC-ECEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KC-EOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KC-E(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KC-ECEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GDH-EOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GDH-E(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GDH-ECEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GDL-EOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60GDL-E(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60GDL-ECEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SD-EOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60SD-E(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60SD-ECEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DD-EOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60DD-E(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60DD-ECEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KD-EOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R60KD-E(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R60KD-ECEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEH-EOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEH-ECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEL-EOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60GEL-ECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SE-EOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60SE-ECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DE-EOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60DE-ECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KE-EOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R60KE-ECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GXH-EOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60GXH-ECEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60GXL-EOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60GXL-ECEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60SX-EOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60SX-ECEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60DX-EOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60DX-ECEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R60KX-EOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R60KX-ECEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GUH-EOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GUH-ECEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GUL-EOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GUL-ECEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60SU-EOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60SU-ECEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DU-EOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DU-ECEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KU-EOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KU-ECEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GTH-EOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GTH-ECEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GTL-EOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GTL-ECEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60ST-EOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60ST-ECEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DT-EOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DT-ECEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KT-EOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KT-ECEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GSH-EOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GSH-ECEOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60GSL-EOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60GSL-ECEOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60SS-EOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60SS-ECEOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60DS-EOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60DS-ECEOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I60KS-EOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9I60KS-ECEOutput: 60 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GAH-EOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GAH-E(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GAH-ECEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GAL-EOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GAL-E(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GAL-ECEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SA-EOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SA-E(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SA-ECEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DA-EOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DA-E(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DA-ECEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KA-EOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KA-E(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KA-ECEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GBH-EOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GBH-E(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GBH-ECEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GBL-EOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GBL-E(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GBL-ECEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SB-EOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SB-E(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SB-ECEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DB-EOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DB-E(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DB-ECEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KB-EOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KB-E(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KB-ECEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GCH-EOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GCH-E(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GCH-ECEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GCL-EOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GCL-E(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GCL-ECEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SC-EOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SC-E(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SC-ECEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DC-EOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DC-E(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DC-ECEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KC-EOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KC-E(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KC-ECEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GDH-EOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GDH-E(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GDH-ECEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GDL-EOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90GDL-E(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90GDL-ECEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SD-EOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90SD-E(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90SD-ECEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DD-EOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90DD-E(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90DD-ECEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KD-EOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 5.0 kg-cm
S9R90KD-E(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP) | Brake torque: 5.0 kg-cm
S9R90KD-ECEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEH-EOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEH-ECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEL-EOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90GEL-ECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SE-EOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90SE-ECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DE-EOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90DE-ECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KE-EOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected | Brake torque: 5.0 kg-cm
S9R90KE-ECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GXH-EOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90GXH-ECEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90GXL-EOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90GXL-ECEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90SX-EOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90SX-ECEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90DX-EOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90DX-ECEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9R90KX-EOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: 5.0 kg-cm
S9R90KX-ECEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 5.0 kg-cm
S9I90GUH-EOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GUH-ECEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GUL-EOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GUL-ECEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90SU-EOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90SU-ECEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DU-EOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DU-ECEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KU-EOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KU-ECEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GTH-EOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GTH-ECEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GTL-EOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GTL-ECEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90ST-EOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90ST-ECEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DT-EOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DT-ECEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KT-EOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KT-ECEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GSH-EOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GSH-ECEOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90GSL-EOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90GSL-ECEOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90SS-EOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90SS-ECEOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90DS-EOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90DS-ECEOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I90KS-EOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard | Brake torque: 10.0 kg-cm
S9I90KS-ECEOutput: 90 W | Voltage: 3-ph 380/400/415/440 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: 10.0 kg-cm
S9I150GU-EOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GU-ECEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150SU-EOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150SU-ECEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DU-EOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DU-ECEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KU-EOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KU-ECEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150GT-EOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GT-ECEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150ST-EOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150ST-ECEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DT-EOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DT-ECEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KT-EOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KT-ECEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150GS-EOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I150GS-ECEOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I150SS-EOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150SS-ECEOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150DS-EOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150DS-ECEOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I150KS-EOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I150KS-ECEOutput: 150 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180GT-ECEOutput: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I180ST-ECEOutput: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180DT-ECEOutput: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180KT-ECEOutput: 180 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180GS-ECEOutput: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: CE, thermally protected | Brake torque: Not listed
S9I180SS-ECEOutput: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180DS-ECEOutput: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I180KS-ECEOutput: 180 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected | Brake torque: Not listed
S9I200GT-EOutput: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I200ST-EOutput: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200DT-EOutput: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200KT-EOutput: 200 W | Voltage: 3-ph 220 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200GS-EOutput: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (not shown in code) | Version: Thermally protected | Brake torque: Not listed
S9I200SS-EOutput: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200DS-EOutput: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed
S9I200KS-EOutput: 200 W | Voltage: 3-ph 380/400 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected | Brake torque: Not listed

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
