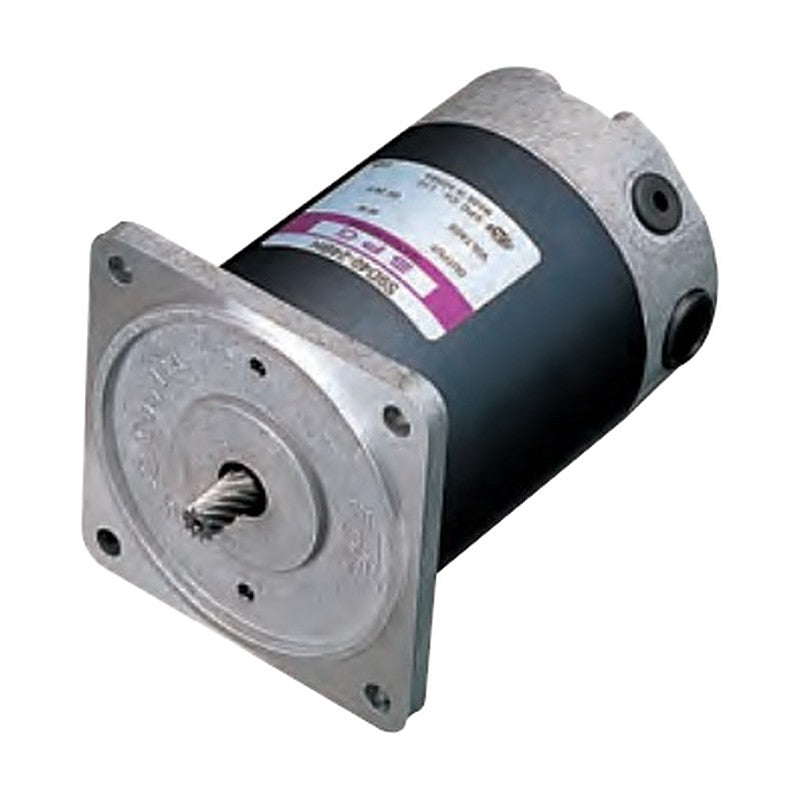

SPG S9D 90 mm Standard DC Motors (40-300 W)

SPG S9D 90 mm Standard DC Motors (40-300 W)

SPG S9D series 90 mm square-flange permanent-magnet DC motors, 40 W to 300 W, for 12/24/90 V DC.

Key features

  • Output range 40 W to 300 W in 90 mm square flange frame
  • Supply voltages 12, 24 and 90 V DC
  • Pinion (geared-type) shaft for S9 B/C/D/H-type gearheads, sold separately
  • Straight, D-cut and key round shafts for direct drive
  • Rotation reversed by supply polarity (red/black leads)
  • Run duty 2000 h at rated voltage, no load

Specifications

Motor type Permanent magnet brushed DC motor
Frame size 90 mm square
Rated speed Approx. 2260-3100 rpm
Run duty 2000 h
Matching gearheads S9 B/C/D/H-type gearheads (separate)
Code example S9D40-24BH
Source SPG DC Geared Motor catalog, p. 5, 22-33
S9D40-12BH Output: 40 W | Voltage: 12 V DC | Shaft: Pinion for B gearhead | Rated load: 2800 rpm, 0.137 N-m, 6.0 A
S9D40-12S Output: 40 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.137 N-m, 6.0 A
S9D40-12D Output: 40 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.137 N-m, 6.0 A
S9D40-12K Output: 40 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2800 rpm, 0.137 N-m, 6.0 A
S9D40-24BH Output: 40 W | Voltage: 24 V DC | Shaft: Pinion for B gearhead | Rated load: 2900 rpm, 0.132 N-m, 3.0 A
S9D40-24S Output: 40 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2900 rpm, 0.132 N-m, 3.0 A
S9D40-24D Output: 40 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2900 rpm, 0.132 N-m, 3.0 A
S9D40-24K Output: 40 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2900 rpm, 0.132 N-m, 3.0 A
S9D40-90BH Output: 40 W | Voltage: 90 V DC | Shaft: Pinion for B gearhead | Rated load: 3000 rpm, 0.127 N-m, 0.7 A
S9D40-90S Output: 40 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 3000 rpm, 0.127 N-m, 0.7 A
S9D40-90D Output: 40 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 3000 rpm, 0.127 N-m, 0.7 A
S9D40-90K Output: 40 W | Voltage: 90 V DC | Shaft: Key | Rated load: 3000 rpm, 0.127 N-m, 0.7 A
S9D60-12CH Output: 60 W | Voltage: 12 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2650 rpm, 0.216 N-m, 7.9 A
S9D60-12S Output: 60 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2650 rpm, 0.216 N-m, 7.9 A
S9D60-12D Output: 60 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2650 rpm, 0.216 N-m, 7.9 A
S9D60-12K Output: 60 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2650 rpm, 0.216 N-m, 7.9 A
S9D60-24CH Output: 60 W | Voltage: 24 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2800 rpm, 0.206 N-m, 3.6 A
S9D60-24S Output: 60 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.206 N-m, 3.6 A
S9D60-24D Output: 60 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.206 N-m, 3.6 A
S9D60-24K Output: 60 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2800 rpm, 0.206 N-m, 3.6 A
S9D60-90CH Output: 60 W | Voltage: 90 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2900 rpm, 0.196 N-m, 1.0 A
S9D60-90S Output: 60 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2900 rpm, 0.196 N-m, 1.0 A
S9D60-90D Output: 60 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2900 rpm, 0.196 N-m, 1.0 A
S9D60-90K Output: 60 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2900 rpm, 0.196 N-m, 1.0 A
S9D90-12CH Output: 90 W | Voltage: 12 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2750 rpm, 0.314 N-m, 10.5 A
S9D90-12S Output: 90 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2750 rpm, 0.314 N-m, 10.5 A
S9D90-12D Output: 90 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2750 rpm, 0.314 N-m, 10.5 A
S9D90-12K Output: 90 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2750 rpm, 0.314 N-m, 10.5 A
S9D90-24CH Output: 90 W | Voltage: 24 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2920 rpm, 0.304 N-m, 5.6 A
S9D90-24S Output: 90 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2920 rpm, 0.304 N-m, 5.6 A
S9D90-24D Output: 90 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2920 rpm, 0.304 N-m, 5.6 A
S9D90-24K Output: 90 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2920 rpm, 0.304 N-m, 5.6 A
S9D90-90CH Output: 90 W | Voltage: 90 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2800 rpm, 0.314 N-m, 1.4 A
S9D90-90S Output: 90 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.314 N-m, 1.4 A
S9D90-90D Output: 90 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.314 N-m, 1.4 A
S9D90-90K Output: 90 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2800 rpm, 0.314 N-m, 1.4 A
S9D120-12CH Output: 120 W | Voltage: 12 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2800 rpm, 0.412 N-m, 14.9 A
S9D120-12S Output: 120 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2800 rpm, 0.412 N-m, 14.9 A
S9D120-12D Output: 120 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2800 rpm, 0.412 N-m, 14.9 A
S9D120-12K Output: 120 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2800 rpm, 0.412 N-m, 14.9 A
S9D120-24CH Output: 120 W | Voltage: 24 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2920 rpm, 0.392 N-m, 7.1 A
S9D120-24S Output: 120 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2920 rpm, 0.392 N-m, 7.1 A
S9D120-24D Output: 120 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2920 rpm, 0.392 N-m, 7.1 A
S9D120-24K Output: 120 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2920 rpm, 0.392 N-m, 7.1 A
S9D120-90CH Output: 120 W | Voltage: 90 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2600 rpm, 0.441 N-m, 2.0 A
S9D120-90S Output: 120 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2600 rpm, 0.441 N-m, 2.0 A
S9D120-90D Output: 120 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2600 rpm, 0.441 N-m, 2.0 A
S9D120-90K Output: 120 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2600 rpm, 0.441 N-m, 2.0 A
S9D150-12CH Output: 150 W | Voltage: 12 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2560 rpm, 0.559 N-m, 20 A
S9D150-12S Output: 150 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2560 rpm, 0.559 N-m, 20 A
S9D150-12D Output: 150 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2560 rpm, 0.559 N-m, 20 A
S9D150-12K Output: 150 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2560 rpm, 0.559 N-m, 20 A
S9D150-24CH Output: 150 W | Voltage: 24 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2650 rpm, 0.539 N-m, 8.5 A
S9D150-24S Output: 150 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2650 rpm, 0.539 N-m, 8.5 A
S9D150-24D Output: 150 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2650 rpm, 0.539 N-m, 8.5 A
S9D150-24K Output: 150 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2650 rpm, 0.539 N-m, 8.5 A
S9D150-90CH Output: 150 W | Voltage: 90 V DC | Shaft: Pinion for C/D gearhead | Rated load: 2650 rpm, 0.539 N-m, 2.2 A
S9D150-90S Output: 150 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2650 rpm, 0.539 N-m, 2.2 A
S9D150-90D Output: 150 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2650 rpm, 0.539 N-m, 2.2 A
S9D150-90K Output: 150 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2650 rpm, 0.539 N-m, 2.2 A
S9D200-12HH Output: 200 W | Voltage: 12 V DC | Shaft: Pinion for H gearhead | Rated load: 2260 rpm, 0.843 N-m, 27.0 A
S9D200-12S Output: 200 W | Voltage: 12 V DC | Shaft: Straight | Rated load: 2260 rpm, 0.843 N-m, 27.0 A
S9D200-12D Output: 200 W | Voltage: 12 V DC | Shaft: D-cut | Rated load: 2260 rpm, 0.843 N-m, 27.0 A
S9D200-12K Output: 200 W | Voltage: 12 V DC | Shaft: Key | Rated load: 2260 rpm, 0.843 N-m, 27.0 A
S9D200-24HH Output: 200 W | Voltage: 24 V DC | Shaft: Pinion for H gearhead | Rated load: 2600 rpm, 0.735 N-m, 12.0 A
S9D200-24S Output: 200 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2600 rpm, 0.735 N-m, 12.0 A
S9D200-24D Output: 200 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2600 rpm, 0.735 N-m, 12.0 A
S9D200-24K Output: 200 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2600 rpm, 0.735 N-m, 12.0 A
S9D200-90HH Output: 200 W | Voltage: 90 V DC | Shaft: Pinion for H gearhead | Rated load: 2670 rpm, 0.715 N-m, 2.8 A
S9D200-90S Output: 200 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2670 rpm, 0.715 N-m, 2.8 A
S9D200-90D Output: 200 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2670 rpm, 0.715 N-m, 2.8 A
S9D200-90K Output: 200 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2670 rpm, 0.715 N-m, 2.8 A
S9D300-24HH Output: 300 W | Voltage: 24 V DC | Shaft: Pinion for H gearhead | Rated load: 2520 rpm, 1.137 N-m, 13.9 A
S9D300-24S Output: 300 W | Voltage: 24 V DC | Shaft: Straight | Rated load: 2520 rpm, 1.137 N-m, 13.9 A
S9D300-24D Output: 300 W | Voltage: 24 V DC | Shaft: D-cut | Rated load: 2520 rpm, 1.137 N-m, 13.9 A
S9D300-24K Output: 300 W | Voltage: 24 V DC | Shaft: Key | Rated load: 2520 rpm, 1.137 N-m, 13.9 A
S9D300-90HH Output: 300 W | Voltage: 90 V DC | Shaft: Pinion for H gearhead | Rated load: 2700 rpm, 1.058 N-m, 4.2 A
S9D300-90S Output: 300 W | Voltage: 90 V DC | Shaft: Straight | Rated load: 2700 rpm, 1.058 N-m, 4.2 A
S9D300-90D Output: 300 W | Voltage: 90 V DC | Shaft: D-cut | Rated load: 2700 rpm, 1.058 N-m, 4.2 A
S9D300-90K Output: 300 W | Voltage: 90 V DC | Shaft: Key | Rated load: 2700 rpm, 1.058 N-m, 4.2 A
DC Geared MotorsSPG
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S9D 90 mm Standard DC Motors (40-300 W)

Brand SPG·DC Geared Motors

Available part numbers (80)

S9D40-12BH, S9D40-12S, S9D40-12D, S9D40-12K, S9D40-24BH, S9D40-24S, S9D40-24D, S9D40-24K, S9D40-90BH, S9D40-90S + 70 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
