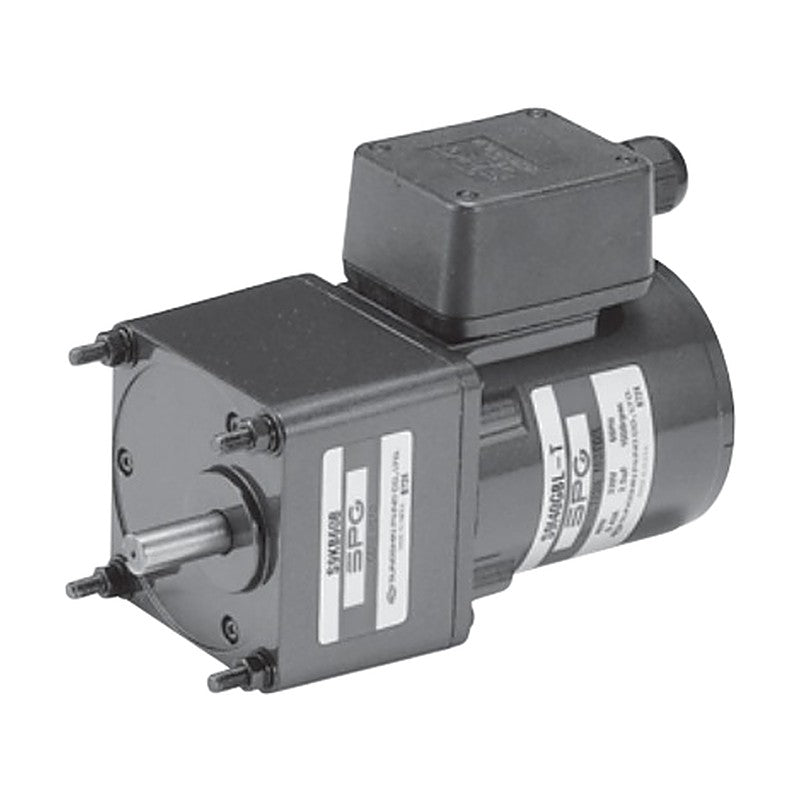

SPG 90 mm Terminal Box Induction Motors (40–150 W)

SPG 90 mm Terminal Box Induction Motors (40–150 W)

SPG 90 mm induction motors in terminal box construction, 40–150 W, for use with SPG K-type gearheads.

Key features

  • Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
  • T type: terminal block box with VDE-certified terminal block; T1 type: PCB terminal block box (80 mm 15 W and up)
  • Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut and key round shafts per the catalog shaft table
  • (TP) suffix: built-in automatic-return thermal protector; CE suffix: CE certified model
  • H/L code letter after the voltage letter matches the gearhead H (heavy impact) or L (light impact) type
  • Continuous-rated induction motors; 3-phase versions for 200/220/380-440 V where listed

Specifications

Frame size 90 mm sq.
Motor type Induction motor, terminal box type
Duty Continuous
Poles 4
Insulation class Class B (130°C)
Temperature rise 80 K max. after rated operation
Thermal protector (TP) Auto return: open 120±5°C, close 76±15°C
Source SPG Standard AC Geared Motor catalog, p. 138-157
S9I40GAH-T Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GAL-T Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SA-T Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DA-T Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KA-T Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GAH-T1 Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GAL-T1 Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SA-T1 Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DA-T1 Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KA-T1 Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GBH-T Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GBL-T Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SB-T Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DB-T Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KB-T Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GBH-T1 Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GBL-T1 Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SB-T1 Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DB-T1 Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KB-T1 Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GCH-T Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GCL-T Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SC-T Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DC-T Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KC-T Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GCH-T1 Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GCL-T1 Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SC-T1 Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DC-T1 Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KC-T1 Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GDH-T Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GDL-T Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SD-T Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DD-T Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KD-T Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GDH-T1 Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GDL-T1 Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SD-T1 Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DD-T1 Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KD-T1 Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-T Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GXL-T Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SX-T Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DX-T Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KX-T Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-T1 Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GXL-T1 Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SX-T1 Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DX-T1 Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KX-T1 Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-TCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GXL-TCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SX-TCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DX-TCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KX-TCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GXH-T1CE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GXL-T1CE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SX-T1CE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DX-T1CE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KX-T1CE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GUH-T Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GUL-T Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SU-T Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DU-T Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KU-T Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GUH-T1 Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GUL-T1 Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SU-T1 Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DU-T1 Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KU-T1 Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GUH-TCE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GUL-TCE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SU-TCE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DU-TCE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KU-TCE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GUH-T1CE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GUL-T1CE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SU-T1CE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DU-T1CE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KU-T1CE Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GTH-T Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GTL-T Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40ST-T Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DT-T Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KT-T Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GTH-T1 Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GTL-T1 Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40ST-T1 Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DT-T1 Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KT-T1 Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GTH-TCE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GTL-TCE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40ST-TCE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DT-TCE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KT-TCE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GTH-T1CE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GTL-T1CE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40ST-T1CE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DT-T1CE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KT-T1CE Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GSH-T Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GSL-T Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SS-T Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DS-T Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KS-T Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GSH-T1 Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GSL-T1 Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SS-T1 Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DS-T1 Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KS-T1 Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GSH-TCE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GSL-TCE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SS-TCE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DS-TCE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KS-TCE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GSH-T1CE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GSL-T1CE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SS-T1CE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DS-T1CE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KS-T1CE Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GAH-T Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GAL-T Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SA-T Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DA-T Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KA-T Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GAH-T1 Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GAL-T1 Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SA-T1 Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DA-T1 Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KA-T1 Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GBH-T Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GBL-T Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SB-T Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DB-T Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KB-T Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GBH-T1 Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GBL-T1 Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SB-T1 Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DB-T1 Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KB-T1 Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GCH-T Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GCL-T Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SC-T Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DC-T Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KC-T Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GCH-T1 Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GCL-T1 Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SC-T1 Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DC-T1 Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KC-T1 Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GDH-T Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GDL-T Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SD-T Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DD-T Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KD-T Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GDH-T1 Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GDL-T1 Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SD-T1 Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DD-T1 Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KD-T1 Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-T Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GXL-T Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SX-T Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DX-T Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KX-T Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-T1 Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GXL-T1 Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SX-T1 Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DX-T1 Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KX-T1 Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-TCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GXL-TCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SX-TCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DX-TCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KX-TCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GXH-T1CE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GXL-T1CE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SX-T1CE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DX-T1CE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KX-T1CE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GUH-T Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GUL-T Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SU-T Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DU-T Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KU-T Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GUH-T1 Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GUL-T1 Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SU-T1 Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DU-T1 Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KU-T1 Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GUH-TCE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GUL-TCE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SU-TCE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DU-TCE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KU-TCE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GUH-T1CE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GUL-T1CE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SU-T1CE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DU-T1CE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KU-T1CE Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GTH-T Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GTL-T Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60ST-T Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DT-T Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KT-T Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GTH-T1 Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GTL-T1 Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60ST-T1 Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DT-T1 Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KT-T1 Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GTH-TCE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GTL-TCE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60ST-TCE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DT-TCE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KT-TCE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GTH-T1CE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GTL-T1CE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60ST-T1CE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DT-T1CE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KT-T1CE Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GSH-T Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GSL-T Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SS-T Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DS-T Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KS-T Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GSH-T1 Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GSL-T1 Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SS-T1 Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DS-T1 Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KS-T1 Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GSH-TCE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GSL-TCE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SS-TCE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DS-TCE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KS-TCE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GSH-T1CE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GSL-T1CE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SS-T1CE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DS-T1CE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KS-T1CE Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GAH-T Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GAL-T Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SA-T Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DA-T Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KA-T Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GAH-T1 Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GAL-T1 Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SA-T1 Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DA-T1 Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KA-T1 Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GBH-T Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GBL-T Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SB-T Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DB-T Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KB-T Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GBH-T1 Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GBL-T1 Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SB-T1 Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DB-T1 Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KB-T1 Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GCH-T Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GCL-T Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SC-T Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DC-T Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KC-T Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GCH-T1 Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GCL-T1 Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SC-T1 Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DC-T1 Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KC-T1 Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GDH-T Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GDL-T Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SD-T Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DD-T Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KD-T Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GDH-T1 Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GDL-T1 Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SD-T1 Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DD-T1 Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KD-T1 Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-T Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GXL-T Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SX-T Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DX-T Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KX-T Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-T1 Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GXL-T1 Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SX-T1 Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DX-T1 Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KX-T1 Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-TCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GXL-TCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SX-TCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DX-TCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KX-TCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GXH-T1CE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GXL-T1CE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SX-T1CE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DX-T1CE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KX-T1CE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GUH-T Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GUL-T Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SU-T Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DU-T Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KU-T Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GUH-T1 Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GUL-T1 Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SU-T1 Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DU-T1 Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KU-T1 Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GUH-TCE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GUL-TCE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SU-TCE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DU-TCE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KU-TCE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GUH-T1CE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GUL-T1CE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SU-T1CE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DU-T1CE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KU-T1CE Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GTH-T Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GTL-T Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90ST-T Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DT-T Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KT-T Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GTH-T1 Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GTL-T1 Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90ST-T1 Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DT-T1 Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KT-T1 Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GTH-TCE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GTL-TCE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90ST-TCE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DT-TCE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KT-TCE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GTH-T1CE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GTL-T1CE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90ST-T1CE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DT-T1CE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KT-T1CE Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GSH-T Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GSL-T Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SS-T Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DS-T Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KS-T Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GSH-T1 Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GSL-T1 Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SS-T1 Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DS-T1 Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KS-T1 Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GSH-TCE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GSL-TCE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SS-TCE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DS-TCE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KS-TCE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GSH-T1CE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GSL-T1CE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SS-T1CE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DS-T1CE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KS-T1CE Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GU-T Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SU-T Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DU-T Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KU-T Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GU-T1 Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SU-T1 Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DU-T1 Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KU-T1 Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GU-TCE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SU-TCE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DU-TCE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KU-TCE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GU-T1CE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SU-T1CE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DU-T1CE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KU-T1CE Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GT-T Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150ST-T Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DT-T Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KT-T Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GT-T1 Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150ST-T1 Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DT-T1 Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KT-T1 Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GT-TCE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150ST-TCE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DT-TCE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KT-TCE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GT-T1CE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150ST-T1CE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DT-T1CE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KT-T1CE Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GS-T Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SS-T Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DS-T Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KS-T Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GS-T1 Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SS-T1 Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DS-T1 Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KS-T1 Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GS-TCE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SS-TCE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DS-TCE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KS-TCE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GS-T1CE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SS-T1CE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DS-T1CE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KS-T1CE Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
AC Induction MotorsSPG
408 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 90 mm Terminal Box Induction Motors (40–150 W)

Brand SPG·AC Induction Motors

Available part numbers (408)

S9I40GAH-T, S9I40GAL-T, S9I40SA-T, S9I40DA-T, S9I40KA-T, S9I40GAH-T1, S9I40GAL-T1, S9I40SA-T1, S9I40DA-T1, S9I40KA-T1 + 398 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S9I40GAH-TOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GAL-TOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SA-TOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DA-TOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KA-TOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GAH-T1Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GAL-T1Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SA-T1Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DA-T1Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KA-T1Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GBH-TOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GBL-TOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SB-TOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DB-TOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KB-TOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GBH-T1Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GBL-T1Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SB-T1Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DB-T1Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KB-T1Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GCH-TOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GCL-TOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SC-TOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DC-TOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KC-TOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GCH-T1Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GCL-T1Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SC-T1Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DC-T1Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KC-T1Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GDH-TOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GDL-TOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SD-TOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DD-TOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KD-TOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GDH-T1Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GDL-T1Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SD-T1Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DD-T1Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KD-T1Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-TOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GXL-TOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SX-TOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DX-TOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KX-TOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-T1Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GXL-T1Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SX-T1Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DX-T1Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KX-T1Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GXH-TCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GXL-TCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SX-TCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DX-TCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KX-TCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GXH-T1CEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GXL-T1CEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SX-T1CEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DX-T1CEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KX-T1CEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GUH-TOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GUL-TOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SU-TOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DU-TOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KU-TOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GUH-T1Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GUL-T1Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SU-T1Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DU-T1Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KU-T1Output: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GUH-TCEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GUL-TCEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SU-TCEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DU-TCEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KU-TCEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GUH-T1CEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GUL-T1CEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SU-T1CEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DU-T1CEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KU-T1CEOutput: 40 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GTH-TOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GTL-TOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40ST-TOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DT-TOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KT-TOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GTH-T1Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GTL-T1Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40ST-T1Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DT-T1Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KT-T1Output: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GTH-TCEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GTL-TCEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40ST-TCEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DT-TCEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KT-TCEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GTH-T1CEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GTL-T1CEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40ST-T1CEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DT-T1CEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KT-T1CEOutput: 40 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GSH-TOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GSL-TOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SS-TOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DS-TOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KS-TOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GSH-T1Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I40GSL-T1Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I40SS-T1Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I40DS-T1Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I40KS-T1Output: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I40GSH-TCEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GSL-TCEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SS-TCEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DS-TCEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KS-TCEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I40GSH-T1CEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I40GSL-T1CEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I40SS-T1CEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I40DS-T1CEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I40KS-T1CEOutput: 40 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GAH-TOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GAL-TOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SA-TOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DA-TOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KA-TOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GAH-T1Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GAL-T1Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SA-T1Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DA-T1Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KA-T1Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GBH-TOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GBL-TOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SB-TOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DB-TOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KB-TOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GBH-T1Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GBL-T1Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SB-T1Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DB-T1Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KB-T1Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GCH-TOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GCL-TOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SC-TOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DC-TOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KC-TOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GCH-T1Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GCL-T1Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SC-T1Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DC-T1Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KC-T1Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GDH-TOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GDL-TOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SD-TOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DD-TOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KD-TOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GDH-T1Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GDL-T1Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SD-T1Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DD-T1Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KD-T1Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-TOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GXL-TOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SX-TOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DX-TOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KX-TOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-T1Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GXL-T1Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SX-T1Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DX-T1Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KX-T1Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GXH-TCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GXL-TCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SX-TCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DX-TCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KX-TCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GXH-T1CEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GXL-T1CEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SX-T1CEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DX-T1CEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KX-T1CEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GUH-TOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GUL-TOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SU-TOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DU-TOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KU-TOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GUH-T1Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GUL-T1Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SU-T1Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DU-T1Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KU-T1Output: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GUH-TCEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GUL-TCEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SU-TCEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DU-TCEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KU-TCEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GUH-T1CEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GUL-T1CEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SU-T1CEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DU-T1CEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KU-T1CEOutput: 60 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GTH-TOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GTL-TOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60ST-TOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DT-TOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KT-TOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GTH-T1Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GTL-T1Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60ST-T1Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DT-T1Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KT-T1Output: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GTH-TCEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GTL-TCEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60ST-TCEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DT-TCEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KT-TCEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GTH-T1CEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GTL-T1CEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60ST-T1CEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DT-T1CEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KT-T1CEOutput: 60 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GSH-TOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GSL-TOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SS-TOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DS-TOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KS-TOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GSH-T1Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I60GSL-T1Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I60SS-T1Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I60DS-T1Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I60KS-T1Output: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I60GSH-TCEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GSL-TCEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SS-TCEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DS-TCEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KS-TCEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I60GSH-T1CEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I60GSL-T1CEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I60SS-T1CEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I60DS-T1CEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I60KS-T1CEOutput: 60 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GAH-TOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GAL-TOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SA-TOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DA-TOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KA-TOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GAH-T1Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GAL-T1Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SA-T1Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DA-T1Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KA-T1Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GBH-TOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GBL-TOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SB-TOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DB-TOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KB-TOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GBH-T1Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GBL-T1Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SB-T1Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DB-T1Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KB-T1Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GCH-TOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GCL-TOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SC-TOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DC-TOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KC-TOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GCH-T1Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GCL-T1Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SC-T1Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DC-T1Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KC-T1Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GDH-TOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GDL-TOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SD-TOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DD-TOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KD-TOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GDH-T1Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GDL-T1Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SD-T1Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DD-T1Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KD-T1Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-TOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GXL-TOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SX-TOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DX-TOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KX-TOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-T1Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GXL-T1Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SX-T1Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DX-T1Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KX-T1Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GXH-TCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GXL-TCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SX-TCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DX-TCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KX-TCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GXH-T1CEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GXL-T1CEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SX-T1CEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DX-T1CEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KX-T1CEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GUH-TOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GUL-TOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SU-TOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DU-TOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KU-TOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GUH-T1Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GUL-T1Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SU-T1Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DU-T1Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KU-T1Output: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GUH-TCEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GUL-TCEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SU-TCEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DU-TCEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KU-TCEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GUH-T1CEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GUL-T1CEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SU-T1CEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DU-T1CEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KU-T1CEOutput: 90 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GTH-TOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GTL-TOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90ST-TOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DT-TOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KT-TOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GTH-T1Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GTL-T1Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90ST-T1Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DT-T1Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KT-T1Output: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GTH-TCEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GTL-TCEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90ST-TCEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DT-TCEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KT-TCEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GTH-T1CEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GTL-T1CEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90ST-T1CEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DT-T1CEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KT-T1CEOutput: 90 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GSH-TOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GSL-TOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SS-TOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DS-TOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KS-TOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GSH-T1Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, H type (heavy)
S9I90GSL-T1Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion, L type (light)
S9I90SS-T1Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I90DS-T1Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I90KS-T1Output: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I90GSH-TCEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GSL-TCEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SS-TCEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DS-TCEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KS-TCEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I90GSH-T1CEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, H type (heavy)
S9I90GSL-T1CEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion, L type (light)
S9I90SS-T1CEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I90DS-T1CEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I90KS-T1CEOutput: 90 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GU-TOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SU-TOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DU-TOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KU-TOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GU-T1Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SU-T1Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DU-T1Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KU-T1Output: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GU-TCEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SU-TCEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DU-TCEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KU-TCEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GU-T1CEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SU-T1CEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DU-T1CEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KU-T1CEOutput: 150 W | Voltage: 3-ph 200 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GT-TOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150ST-TOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DT-TOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KT-TOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GT-T1Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150ST-T1Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DT-T1Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KT-T1Output: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GT-TCEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150ST-TCEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DT-TCEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KT-TCEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GT-T1CEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150ST-T1CEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DT-T1CEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KT-T1CEOutput: 150 W | Voltage: 3-ph 220 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GS-TOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SS-TOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DS-TOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KS-TOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GS-T1Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Pinion (gear type)
S9I150SS-T1Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Straight round shaft
S9I150DS-T1Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: D-cut round shaft
S9I150KS-T1Output: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: Standard | Shaft: Key round shaft
S9I150GS-TCEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SS-TCEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DS-TCEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KS-TCEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T: terminal block | Protection: CE certified type | Shaft: Key round shaft
S9I150GS-T1CEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Pinion (gear type)
S9I150SS-T1CEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Straight round shaft
S9I150DS-T1CEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: D-cut round shaft
S9I150KS-T1CEOutput: 150 W | Voltage: 3-ph 380-440 V 50/60 Hz | Terminal box: T1: PCB terminal block | Protection: CE certified type | Shaft: Key round shaft

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
