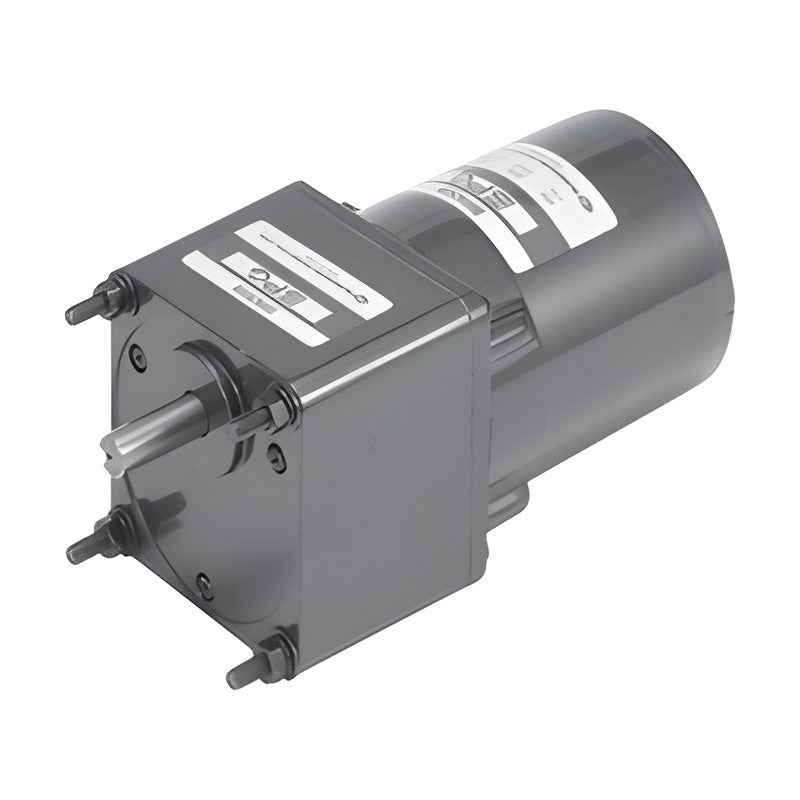

SPG S9SB/S9DB/S9KB 90 mm Gearheads (for 40 W Motors)

SPG 90 mm B-type parallel-shaft gearheads for 40 W S9I40G motors, 24 ratios from 1/3 to 1/200, three bearing versions and L/H impact types.

Key features

Code S9<shaft>B<ratio><bearing><impact>: straight S, D-cut D or key K output shaft
Bearing letter: B1 all ball bearing, B ball + metal bearing, M metal bearing (heat-treated gears)
Impact letter L (light) or H (heavy) must match the motor pinion type (S9I40GL / S9I40GH)
Permissible torque of motor + gearhead up to 9.8 N·m (100 kg·cm)
S9GX10BH / S9GX10BL inter-decimal gearhead (1/10) for higher reduction

Specifications

Frame size	90 mm square
Gear type	B (40 W)
Applicable motor	S9I40GL / S9I40GH (40 W)
Output shaft dia.	12 mm
Weight	0.73-1.13 kg
Source	SPG Standard AC Geared Motor catalog, p. 52-53

S9SB3B1H		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB3B1L		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB3BH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB3BL		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB3MH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB3ML		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB3.6B1H		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB3.6B1L		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB3.6BH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB3.6BL		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB3.6MH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB3.6ML		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB5B1H		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB5B1L		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB5BH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB5BL		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB5MH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB5ML		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB6B1H		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB6B1L		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB6BH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB6BL		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB6MH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB6ML		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB7.5B1H		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB7.5B1L		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB7.5BH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB7.5BL		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB7.5MH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB7.5ML		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB9B1H		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB9B1L		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB9BH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB9BL		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB9MH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB9ML		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB10B1H		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB10B1L		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB10BH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB10BL		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB10MH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB10ML		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB12.5B1H		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB12.5B1L		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB12.5BH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB12.5BL		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB12.5MH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB12.5ML		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB15B1H		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB15B1L		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB15BH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB15BL		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB15MH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB15ML		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB18B1H		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB18B1L		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB18BH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB18BL		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB18MH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB18ML		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB20B1H		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB20B1L		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB20BH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB20BL		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB20MH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB20ML		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB25B1H		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB25B1L		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB25BH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB25BL		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB25MH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB25ML		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB30B1H		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB30B1L		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB30BH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB30BL		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB30MH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB30ML		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB36B1H		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB36B1L		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB36BH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB36BL		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB36MH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB36ML		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB40B1H		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB40B1L		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB40BH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB40BL		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB40MH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB40ML		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB50B1H		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB50B1L		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB50BH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB50BL		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB50MH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB50ML		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB60B1H		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB60B1L		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB60BH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB60BL		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB60MH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB60ML		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB75B1H		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB75B1L		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB75BH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB75BL		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB75MH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB75ML		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB90B1H		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB90B1L		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB90BH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB90BL		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB90MH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB90ML		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB100B1H		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB100B1L		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB100BH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB100BL		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB100MH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB100ML		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB120B1H		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB120B1L		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB120BH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB120BL		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB120MH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB120ML		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB150B1H		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB150B1L		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB150BH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB150BL		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB150MH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB150ML		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB180B1H		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB180B1L		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB180BH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB180BL		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB180MH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB180ML		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9SB200B1H		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9SB200B1L		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
S9SB200BH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9SB200BL		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9SB200MH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9SB200ML		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB3B1H		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB3B1L		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB3BH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB3BL		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB3MH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB3ML		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB3.6B1H		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB3.6B1L		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB3.6BH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB3.6BL		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB3.6MH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB3.6ML		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB5B1H		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB5B1L		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB5BH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB5BL		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB5MH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB5ML		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB6B1H		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB6B1L		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB6BH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB6BL		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB6MH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB6ML		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB7.5B1H		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB7.5B1L		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB7.5BH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB7.5BL		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB7.5MH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB7.5ML		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB9B1H		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB9B1L		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB9BH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB9BL		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB9MH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB9ML		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB10B1H		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB10B1L		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB10BH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB10BL		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB10MH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB10ML		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB12.5B1H		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB12.5B1L		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB12.5BH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB12.5BL		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB12.5MH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB12.5ML		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB15B1H		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB15B1L		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB15BH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB15BL		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB15MH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB15ML		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB18B1H		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB18B1L		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB18BH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB18BL		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB18MH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB18ML		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB20B1H		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB20B1L		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB20BH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB20BL		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB20MH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB20ML		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB25B1H		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB25B1L		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB25BH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB25BL		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB25MH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB25ML		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB30B1H		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB30B1L		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB30BH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB30BL		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB30MH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB30ML		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB36B1H		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB36B1L		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB36BH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB36BL		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB36MH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB36ML		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB40B1H		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB40B1L		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB40BH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB40BL		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB40MH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB40ML		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB50B1H		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB50B1L		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB50BH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB50BL		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB50MH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB50ML		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB60B1H		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB60B1L		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB60BH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB60BL		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB60MH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB60ML		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB75B1H		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB75B1L		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB75BH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB75BL		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB75MH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB75ML		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB90B1H		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB90B1L		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB90BH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB90BL		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB90MH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB90ML		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB100B1H		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB100B1L		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB100BH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB100BL		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB100MH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB100ML		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB120B1H		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB120B1L		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB120BH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB120BL		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB120MH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB120ML		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB150B1H		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB150B1L		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB150BH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB150BL		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB150MH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB150ML		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB180B1H		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB180B1L		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB180BH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB180BL		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB180MH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB180ML		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9DB200B1H		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9DB200B1L		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
S9DB200BH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9DB200BL		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9DB200MH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9DB200ML		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB3B1H		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB3B1L		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB3BH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB3BL		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB3MH		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB3ML		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB3.6B1H		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB3.6B1L		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB3.6BH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB3.6BL		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB3.6MH		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB3.6ML		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB5B1H		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB5B1L		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB5BH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB5BL		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB5MH		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB5ML		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB6B1H		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB6B1L		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB6BH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB6BL		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB6MH		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB6ML		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB7.5B1H		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB7.5B1L		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB7.5BH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB7.5BL		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB7.5MH		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB7.5ML		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB9B1H		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB9B1L		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB9BH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB9BL		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB9MH		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB9ML		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB10B1H		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB10B1L		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB10BH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB10BL		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB10MH		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB10ML		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB12.5B1H		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB12.5B1L		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB12.5BH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB12.5BL		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB12.5MH		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB12.5ML		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB15B1H		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB15B1L		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB15BH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB15BL		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB15MH		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB15ML		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB18B1H		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB18B1L		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB18BH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB18BL		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB18MH		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB18ML		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB20B1H		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB20B1L		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB20BH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB20BL		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB20MH		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB20ML		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB25B1H		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB25B1L		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB25BH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB25BL		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB25MH		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB25ML		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB30B1H		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB30B1L		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB30BH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB30BL		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB30MH		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB30ML		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB36B1H		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB36B1L		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB36BH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB36BL		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB36MH		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB36ML		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB40B1H		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB40B1L		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB40BH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB40BL		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB40MH		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB40ML		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB50B1H		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB50B1L		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB50BH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB50BL		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB50MH		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB50ML		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB60B1H		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB60B1L		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB60BH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB60BL		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB60MH		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB60ML		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB75B1H		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB75B1L		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB75BH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB75BL		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB75MH		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB75ML		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB90B1H		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB90B1L		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB90BH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB90BL		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB90MH		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB90ML		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB100B1H		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB100B1L		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB100BH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB100BL		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB100MH		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB100ML		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB120B1H		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB120B1L		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB120BH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB120BL		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB120MH		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB120ML		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB150B1H		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB150B1L		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB150BH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB150BL		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB150MH		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB150ML		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB180B1H		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB180B1L		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB180BH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB180BL		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB180MH		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB180ML		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB200B1H		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
S9KB200B1L		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
S9KB200BH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
S9KB200BL		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
S9KB200MH		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
S9KB200ML		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
S9KB3B		Legacy code, now ordered as S9KB3B[H\|L] (B1/M variants also) \| Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB3.6B		Legacy code, now ordered as S9KB3.6B[H\|L] (B1/M variants also) \| Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB5B		Legacy code, now ordered as S9KB5B[H\|L] (B1/M variants also) \| Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB6B		Legacy code, now ordered as S9KB6B[H\|L] (B1/M variants also) \| Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB7.5B		Legacy code, now ordered as S9KB7.5B[H\|L] (B1/M variants also) \| Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB9B		Legacy code, now ordered as S9KB9B[H\|L] (B1/M variants also) \| Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB10B		Legacy code, now ordered as S9KB10B[H\|L] (B1/M variants also) \| Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB12.5B		Legacy code, now ordered as S9KB12.5B[H\|L] (B1/M variants also) \| Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB15B		Legacy code, now ordered as S9KB15B[H\|L] (B1/M variants also) \| Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB18B		Legacy code, now ordered as S9KB18B[H\|L] (B1/M variants also) \| Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB20B		Legacy code, now ordered as S9KB20B[H\|L] (B1/M variants also) \| Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB25B		Legacy code, now ordered as S9KB25B[H\|L] (B1/M variants also) \| Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB30B		Legacy code, now ordered as S9KB30B[H\|L] (B1/M variants also) \| Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB36B		Legacy code, now ordered as S9KB36B[H\|L] (B1/M variants also) \| Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB40B		Legacy code, now ordered as S9KB40B[H\|L] (B1/M variants also) \| Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB50B		Legacy code, now ordered as S9KB50B[H\|L] (B1/M variants also) \| Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB60B		Legacy code, now ordered as S9KB60B[H\|L] (B1/M variants also) \| Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB75B		Legacy code, now ordered as S9KB75B[H\|L] (B1/M variants also) \| Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB90B		Legacy code, now ordered as S9KB90B[H\|L] (B1/M variants also) \| Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB100B		Legacy code, now ordered as S9KB100B[H\|L] (B1/M variants also) \| Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB120B		Legacy code, now ordered as S9KB120B[H\|L] (B1/M variants also) \| Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB150B		Legacy code, now ordered as S9KB150B[H\|L] (B1/M variants also) \| Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB180B		Legacy code, now ordered as S9KB180B[H\|L] (B1/M variants also) \| Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
S9KB200B		Legacy code, now ordered as S9KB200B[H\|L] (B1/M variants also) \| Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified

GearheadsSPG

456 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG S9SB/S9DB/S9KB 90 mm Gearheads (for 40 W Motors)

Brand SPG·Gearheads

Available part numbers (456)

S9SB3B1H, S9SB3B1L, S9SB3BH, S9SB3BL, S9SB3MH, S9SB3ML, S9SB3.6B1H, S9SB3.6B1L, S9SB3.6BH, S9SB3.6BL + 446 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S9SB3B1H	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB3B1L	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB3BH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB3BL	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB3MH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB3ML	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB3.6B1H	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB3.6B1L	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB3.6BH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB3.6BL	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB3.6MH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB3.6ML	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB5B1H	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB5B1L	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB5BH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB5BL	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB5MH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB5ML	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB6B1H	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB6B1L	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB6BH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB6BL	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB6MH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB6ML	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB7.5B1H	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB7.5B1L	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB7.5BH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB7.5BL	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB7.5MH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB7.5ML	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB9B1H	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB9B1L	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB9BH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB9BL	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB9MH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB9ML	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB10B1H	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB10B1L	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB10BH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB10BL	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB10MH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB10ML	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB12.5B1H	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB12.5B1L	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB12.5BH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB12.5BL	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB12.5MH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB12.5ML	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB15B1H	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB15B1L	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB15BH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB15BL	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB15MH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB15ML	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB18B1H	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB18B1L	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB18BH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB18BL	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB18MH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB18ML	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB20B1H	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB20B1L	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB20BH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB20BL	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB20MH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB20ML	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB25B1H	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB25B1L	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB25BH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB25BL	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB25MH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB25ML	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB30B1H	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB30B1L	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB30BH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB30BL	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB30MH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB30ML	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB36B1H	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB36B1L	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB36BH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB36BL	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB36MH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB36ML	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB40B1H	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB40B1L	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB40BH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB40BL	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB40MH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB40ML	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB50B1H	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB50B1L	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB50BH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB50BL	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB50MH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB50ML	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB60B1H	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB60B1L	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB60BH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB60BL	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB60MH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB60ML	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB75B1H	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB75B1L	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB75BH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB75BL	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB75MH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB75ML	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB90B1H	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB90B1L	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB90BH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB90BL	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB90MH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB90ML	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB100B1H	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB100B1L	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB100BH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB100BL	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB100MH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB100ML	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB120B1H	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB120B1L	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB120BH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB120BL	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB120MH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB120ML	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB150B1H	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB150B1L	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB150BH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB150BL	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB150MH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB150ML	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB180B1H	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB180B1L	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB180BH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB180BL	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB180MH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB180ML	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9SB200B1H	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9SB200B1L	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9SB200BH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9SB200BL	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9SB200MH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9SB200ML	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB3B1H	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB3B1L	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB3BH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB3BL	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB3MH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB3ML	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB3.6B1H	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB3.6B1L	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB3.6BH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB3.6BL	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB3.6MH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB3.6ML	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB5B1H	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB5B1L	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB5BH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB5BL	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB5MH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB5ML	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB6B1H	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB6B1L	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB6BH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB6BL	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB6MH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB6ML	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB7.5B1H	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB7.5B1L	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB7.5BH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB7.5BL	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB7.5MH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB7.5ML	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB9B1H	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB9B1L	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB9BH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB9BL	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB9MH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB9ML	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB10B1H	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB10B1L	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB10BH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB10BL	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB10MH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB10ML	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB12.5B1H	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB12.5B1L	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB12.5BH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB12.5BL	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB12.5MH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB12.5ML	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB15B1H	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB15B1L	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB15BH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB15BL	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB15MH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB15ML	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB18B1H	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB18B1L	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB18BH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB18BL	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB18MH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB18ML	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB20B1H	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB20B1L	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB20BH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB20BL	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB20MH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB20ML	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB25B1H	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB25B1L	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB25BH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB25BL	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB25MH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB25ML	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB30B1H	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB30B1L	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB30BH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB30BL	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB30MH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB30ML	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB36B1H	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB36B1L	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB36BH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB36BL	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB36MH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB36ML	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB40B1H	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB40B1L	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB40BH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB40BL	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB40MH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB40ML	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB50B1H	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB50B1L	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB50BH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB50BL	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB50MH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB50ML	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB60B1H	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB60B1L	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB60BH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB60BL	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB60MH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB60ML	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB75B1H	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB75B1L	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB75BH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB75BL	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB75MH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB75ML	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB90B1H	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB90B1L	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB90BH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB90BL	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB90MH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB90ML	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB100B1H	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB100B1L	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB100BH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB100BL	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB100MH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB100ML	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB120B1H	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB120B1L	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB120BH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB120BL	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB120MH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB120ML	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB150B1H	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB150B1L	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB150BH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB150BL	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB150MH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB150ML	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB180B1H	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB180B1L	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB180BH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB180BL	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB180MH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB180ML	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9DB200B1H	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9DB200B1L	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9DB200BH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9DB200BL	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9DB200MH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9DB200ML	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB3B1H	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB3B1L	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB3BH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB3BL	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB3MH	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB3ML	Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB3.6B1H	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB3.6B1L	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB3.6BH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB3.6BL	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB3.6MH	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB3.6ML	Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB5B1H	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB5B1L	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB5BH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB5BL	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB5MH	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB5ML	Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB6B1H	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB6B1L	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB6BH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB6BL	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB6MH	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB6ML	Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB7.5B1H	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB7.5B1L	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB7.5BH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB7.5BL	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB7.5MH	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB7.5ML	Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB9B1H	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB9B1L	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB9BH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB9BL	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB9MH	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB9ML	Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB10B1H	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB10B1L	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB10BH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB10BL	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB10MH	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB10ML	Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB12.5B1H	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB12.5B1L	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB12.5BH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB12.5BL	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB12.5MH	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB12.5ML	Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB15B1H	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB15B1L	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB15BH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB15BL	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB15MH	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB15ML	Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB18B1H	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB18B1L	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB18BH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB18BL	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB18MH	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB18ML	Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB20B1H	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB20B1L	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB20BH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB20BL	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB20MH	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB20ML	Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB25B1H	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB25B1L	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB25BH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB25BL	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB25MH	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB25ML	Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB30B1H	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB30B1L	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB30BH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB30BL	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB30MH	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB30ML	Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB36B1H	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB36B1L	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB36BH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB36BL	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB36MH	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB36ML	Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB40B1H	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB40B1L	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB40BH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB40BL	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB40MH	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB40ML	Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB50B1H	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB50B1L	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB50BH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB50BL	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB50MH	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB50ML	Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB60B1H	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB60B1L	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB60BH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB60BL	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB60MH	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB60ML	Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB75B1H	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB75B1L	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB75BH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB75BL	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB75MH	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB75ML	Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB90B1H	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB90B1L	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB90BH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB90BL	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB90MH	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB90ML	Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB100B1H	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB100B1L	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB100BH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB100BL	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB100MH	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB100ML	Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB120B1H	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB120B1L	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB120BH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB120BL	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB120MH	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB120ML	Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB150B1H	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB150B1L	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB150BH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB150BL	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB150MH	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB150ML	Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB180B1H	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB180B1L	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB180BH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB180BL	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB180MH	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB180ML	Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB200B1H	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: H (heavy impact)
	S9KB200B1L	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: All ball bearing \| Impact type: L (light impact)
	S9KB200BH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: H (heavy impact)
	S9KB200BL	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: L (light impact)
	S9KB200MH	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: H (heavy impact)
	S9KB200ML	Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Metal bearing \| Impact type: L (light impact)
	S9KB3B	Legacy code, now ordered as S9KB3B[H\|L] (B1/M variants also) \| Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB3.6B	Legacy code, now ordered as S9KB3.6B[H\|L] (B1/M variants also) \| Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB5B	Legacy code, now ordered as S9KB5B[H\|L] (B1/M variants also) \| Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB6B	Legacy code, now ordered as S9KB6B[H\|L] (B1/M variants also) \| Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB7.5B	Legacy code, now ordered as S9KB7.5B[H\|L] (B1/M variants also) \| Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB9B	Legacy code, now ordered as S9KB9B[H\|L] (B1/M variants also) \| Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB10B	Legacy code, now ordered as S9KB10B[H\|L] (B1/M variants also) \| Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB12.5B	Legacy code, now ordered as S9KB12.5B[H\|L] (B1/M variants also) \| Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB15B	Legacy code, now ordered as S9KB15B[H\|L] (B1/M variants also) \| Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB18B	Legacy code, now ordered as S9KB18B[H\|L] (B1/M variants also) \| Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB20B	Legacy code, now ordered as S9KB20B[H\|L] (B1/M variants also) \| Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB25B	Legacy code, now ordered as S9KB25B[H\|L] (B1/M variants also) \| Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB30B	Legacy code, now ordered as S9KB30B[H\|L] (B1/M variants also) \| Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB36B	Legacy code, now ordered as S9KB36B[H\|L] (B1/M variants also) \| Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB40B	Legacy code, now ordered as S9KB40B[H\|L] (B1/M variants also) \| Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB50B	Legacy code, now ordered as S9KB50B[H\|L] (B1/M variants also) \| Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB60B	Legacy code, now ordered as S9KB60B[H\|L] (B1/M variants also) \| Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB75B	Legacy code, now ordered as S9KB75B[H\|L] (B1/M variants also) \| Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB90B	Legacy code, now ordered as S9KB90B[H\|L] (B1/M variants also) \| Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB100B	Legacy code, now ordered as S9KB100B[H\|L] (B1/M variants also) \| Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB120B	Legacy code, now ordered as S9KB120B[H\|L] (B1/M variants also) \| Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB150B	Legacy code, now ordered as S9KB150B[H\|L] (B1/M variants also) \| Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB180B	Legacy code, now ordered as S9KB180B[H\|L] (B1/M variants also) \| Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified
	S9KB200B	Legacy code, now ordered as S9KB200B[H\|L] (B1/M variants also) \| Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Key \| Bearing: Ball + metal bearing \| Impact type: Not specified

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG S9SB/S9DB/S9KB 90 mm Gearheads (for 40 W Motors)
