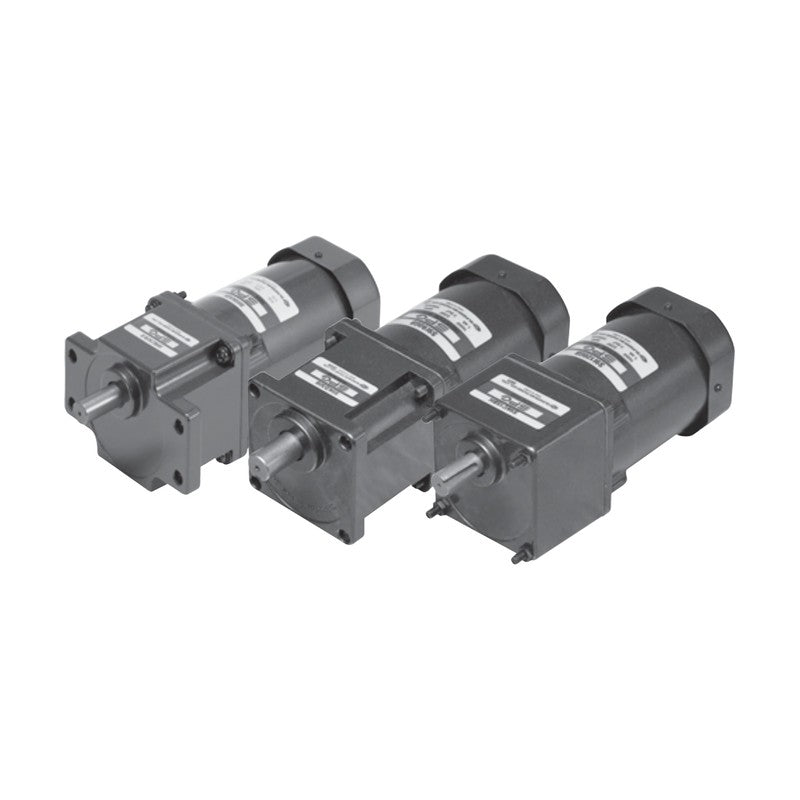

• SPG S9SD/S9DD/S9KD 90 mm Gearheads (for 60-120 W H Motors)
1 1

SPG S9SD/S9DD/S9KD 90 mm Gearheads (for 60-120 W H Motors)

SPG S9SD/S9DD/S9KD 90 mm Gearheads (for 60-120 W H Motors)

SPG 90 mm D-type heavy-duty parallel-shaft gearheads for 60-120 W S9I H-type motors, 24 ratios from 1/3 to 1/200, with higher permissible torque.

Key features

  • Code S9<shaft>D<ratio>B: straight S, D-cut D or key K output shaft
  • H type only; H is not marked in the gearhead code - use with H-type motors
  • Permissible torque of motor + gearhead up to 29.42 N·m (300 kg·cm)
  • Heat-treated gears, ball bearing construction, flange with mounting holes

Specifications

Frame size 90 mm square
Gear type D (60-120 W)
Bearing All ball bearing
Applicable motor S9I60GH, S9I90GH, S9I120G
Output shaft dia. 18 mm
Weight 1.65-1.95 kg
Source SPG Standard AC Geared Motor catalog, p. 56-62
S9SD3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Straight
S9SD3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Straight
S9SD5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Straight
S9SD6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Straight
S9SD7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Straight
S9SD9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Straight
S9SD10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Straight
S9SD12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Straight
S9SD15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Straight
S9SD18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Straight
S9SD20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Straight
S9SD25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Straight
S9SD30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Straight
S9SD36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Straight
S9SD40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Straight
S9SD50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Straight
S9SD60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Straight
S9SD75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Straight
S9SD90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Straight
S9SD100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Straight
S9SD120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Straight
S9SD150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Straight
S9SD180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Straight
S9SD200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Straight
S9DD3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: D-cut
S9DD3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: D-cut
S9DD5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: D-cut
S9DD6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: D-cut
S9DD7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: D-cut
S9DD9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: D-cut
S9DD10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: D-cut
S9DD12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: D-cut
S9DD15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: D-cut
S9DD18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: D-cut
S9DD20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: D-cut
S9DD25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: D-cut
S9DD30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: D-cut
S9DD36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: D-cut
S9DD40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: D-cut
S9DD50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: D-cut
S9DD60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: D-cut
S9DD75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: D-cut
S9DD90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: D-cut
S9DD100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: D-cut
S9DD120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: D-cut
S9DD150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: D-cut
S9DD180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: D-cut
S9DD200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: D-cut
S9KD3B Ratio: 1/3 | Speed 50/60 Hz: 500 / 600 rpm | Output shaft: Key
S9KD3.6B Ratio: 1/3.6 | Speed 50/60 Hz: 416 / 500 rpm | Output shaft: Key
S9KD5B Ratio: 1/5 | Speed 50/60 Hz: 300 / 360 rpm | Output shaft: Key
S9KD6B Ratio: 1/6 | Speed 50/60 Hz: 250 / 300 rpm | Output shaft: Key
S9KD7.5B Ratio: 1/7.5 | Speed 50/60 Hz: 200 / 240 rpm | Output shaft: Key
S9KD9B Ratio: 1/9 | Speed 50/60 Hz: 166 / 200 rpm | Output shaft: Key
S9KD10B Ratio: 1/10 | Speed 50/60 Hz: 150 / 180 rpm | Output shaft: Key
S9KD12.5B Ratio: 1/12.5 | Speed 50/60 Hz: 120 / 144 rpm | Output shaft: Key
S9KD15B Ratio: 1/15 | Speed 50/60 Hz: 100 / 120 rpm | Output shaft: Key
S9KD18B Ratio: 1/18 | Speed 50/60 Hz: 83 / 100 rpm | Output shaft: Key
S9KD20B Ratio: 1/20 | Speed 50/60 Hz: 75 / 90 rpm | Output shaft: Key
S9KD25B Ratio: 1/25 | Speed 50/60 Hz: 60 / 72 rpm | Output shaft: Key
S9KD30B Ratio: 1/30 | Speed 50/60 Hz: 50 / 60 rpm | Output shaft: Key
S9KD36B Ratio: 1/36 | Speed 50/60 Hz: 41 / 50 rpm | Output shaft: Key
S9KD40B Ratio: 1/40 | Speed 50/60 Hz: 37 / 45 rpm | Output shaft: Key
S9KD50B Ratio: 1/50 | Speed 50/60 Hz: 30 / 36 rpm | Output shaft: Key
S9KD60B Ratio: 1/60 | Speed 50/60 Hz: 25 / 30 rpm | Output shaft: Key
S9KD75B Ratio: 1/75 | Speed 50/60 Hz: 20 / 24 rpm | Output shaft: Key
S9KD90B Ratio: 1/90 | Speed 50/60 Hz: 16 / 20 rpm | Output shaft: Key
S9KD100B Ratio: 1/100 | Speed 50/60 Hz: 15 / 18 rpm | Output shaft: Key
S9KD120B Ratio: 1/120 | Speed 50/60 Hz: 12 / 15 rpm | Output shaft: Key
S9KD150B Ratio: 1/150 | Speed 50/60 Hz: 10 / 12 rpm | Output shaft: Key
S9KD180B Ratio: 1/180 | Speed 50/60 Hz: 8 / 10 rpm | Output shaft: Key
S9KD200B Ratio: 1/200 | Speed 50/60 Hz: 7.5 / 9 rpm | Output shaft: Key
GearheadsSPG
72 product codes available in this family
