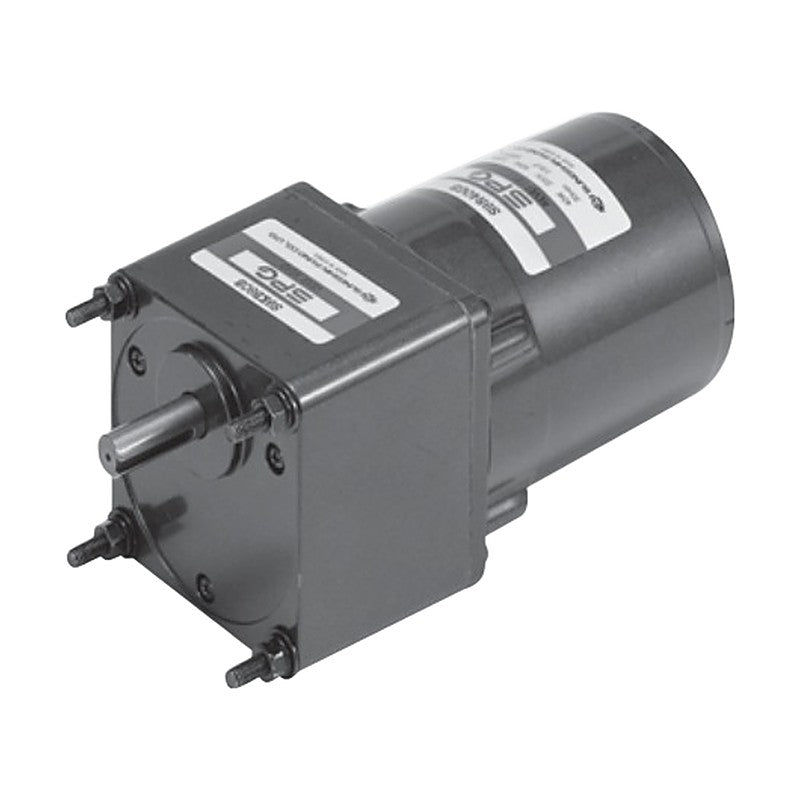

SPG 90 mm Reversible Motors (Lead Wire Type, 40–90 W)

SPG 90 mm Reversible Motors (Lead Wire Type, 40–90 W)

SPG S9R series 90 mm square single-phase reversible motors, 40–90 W, lead wire type, for frequent forward/reverse operation with a gearhead.

Key features

  • Capacitor-run single-phase motor with a built-in friction brake for quick reversing and reduced overrun
  • Rated for 30-minute duty; CW/CCW switching via capacitor connection
  • Output shaft types by code letter: Pinion (gear type), Round (straight), D-cut, Key; pinion H (heavy impact) or L (light impact) for gear type
  • (TP) models carry a built-in thermal protector; CE models are thermally/impedance protected with rear cover
  • Matching S9xB (40 W) / S9xC (60, 90 W) gearheads and S9GX10B(H,L) decimal gearheads sold separately

Specifications

Frame size 90 mm sq.
Motor type Reversible (capacitor-run, single-phase)
Poles 4
Duty 30 min
Built-in brake Friction brake (brake block + spring)
Lead wire 300 mm lead wire type
Compatible gearheads 40 W: S9xB; 60/90 W: S9xC (B/BH/BL)
Motor weight 2.34-2.99 kg
Source SPG Standard AC Geared Motor catalog, p. 84-91
S9R40GAH Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GAH(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GAHCE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GAL Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GAL(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GALCE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SA Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SA(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SACE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DA Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DA(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DACE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KA Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KA(TP) Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KACE Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GBH Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GBH(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GBHCE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GBL Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GBL(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GBLCE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SB Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SB(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SBCE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DB Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DB(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DBCE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KB Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KB(TP) Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KBCE Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GCH Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GCH(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GCHCE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GCL Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GCL(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GCLCE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SC Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SC(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SCCE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DC Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DC(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DCCE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KC Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KC(TP) Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KCCE Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GDH Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GDH(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GDHCE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GDL Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GDL(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GDLCE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SD Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SD(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SDCE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DD Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DD(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DDCE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KD Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KD(TP) Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KDCE Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GEH Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R40GEHCE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GEL Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R40GELCE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SE Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40SECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DE Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40DECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KE Output: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40KECE Output: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GXH Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R40GXHCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GXL Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R40GXLCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SX Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40SXCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DX Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40DXCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KX Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40KXCE Output: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GAH Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GAH(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GAHCE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GAL Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GAL(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GALCE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SA Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SA(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SACE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DA Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DA(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DACE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KA Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KA(TP) Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KACE Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GBH Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GBH(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GBHCE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GBL Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GBL(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GBLCE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SB Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SB(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SBCE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DB Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DB(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DBCE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KB Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KB(TP) Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KBCE Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GCH Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GCH(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GCHCE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GCL Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GCL(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GCLCE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SC Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SC(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SCCE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DC Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DC(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DCCE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KC Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KC(TP) Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KCCE Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GDH Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GDH(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GDHCE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GDL Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GDL(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GDLCE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SD Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SD(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SDCE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DD Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DD(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DDCE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KD Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KD(TP) Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KDCE Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GEH Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R60GEHCE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GEL Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R60GELCE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SE Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60SECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DE Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60DECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KE Output: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60KECE Output: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GXH Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R60GXHCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GXL Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R60GXLCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SX Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60SXCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DX Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60DXCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KX Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60KXCE Output: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GAH Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GAH(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GAHCE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GAL Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GAL(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GALCE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SA Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SA(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SACE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DA Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DA(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DACE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KA Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KA(TP) Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KACE Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GBH Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GBH(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GBHCE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GBL Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GBL(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GBLCE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SB Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SB(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SBCE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DB Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DB(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DBCE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KB Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KB(TP) Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KBCE Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GCH Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GCH(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GCHCE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GCL Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GCL(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GCLCE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SC Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SC(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SCCE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DC Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DC(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DCCE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KC Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KC(TP) Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KCCE Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GDH Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GDH(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GDHCE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GDL Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GDL(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GDLCE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SD Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SD(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SDCE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DD Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DD(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DDCE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KD Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KD(TP) Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KDCE Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GEH Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R90GEHCE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GEL Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R90GELCE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SE Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90SECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DE Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90DECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KE Output: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90KECE Output: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GXH Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R90GXHCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GXL Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R90GXLCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SX Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90SXCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DX Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90DXCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KX Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90KXCE Output: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
Reversible MotorsSPG
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 90 mm Reversible Motors (Lead Wire Type, 40–90 W)

Brand SPG·Reversible Motors

Available part numbers (240)

S9R40GAH, S9R40GAH(TP), S9R40GAHCE, S9R40GAL, S9R40GAL(TP), S9R40GALCE, S9R40SA, S9R40SA(TP), S9R40SACE, S9R40DA + 230 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S9R40GAHOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GAH(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GAHCEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GALOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GAL(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GALCEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SAOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SA(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SACEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DAOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DA(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DACEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KAOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KA(TP)Output: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KACEOutput: 40 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GBHOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GBH(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GBHCEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GBLOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GBL(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GBLCEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SBOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SB(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SBCEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DBOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DB(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DBCEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KBOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KB(TP)Output: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KBCEOutput: 40 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GCHOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GCH(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GCHCEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GCLOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GCL(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GCLCEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SCOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SC(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SCCEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DCOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DC(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DCCEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KCOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KC(TP)Output: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KCCEOutput: 40 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GDHOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R40GDH(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R40GDHCEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GDLOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R40GDL(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R40GDLCEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SDOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R40SD(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40SDCEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DDOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R40DD(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40DDCEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KDOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R40KD(TP)Output: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R40KDCEOutput: 40 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GEHOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R40GEHCEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GELOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R40GELCEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SEOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40SECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DEOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40DECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KEOutput: 40 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R40KECEOutput: 40 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40GXHOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R40GXHCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R40GXLOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R40GXLCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R40SXOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40SXCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40DXOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40DXCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R40KXOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R40KXCEOutput: 40 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GAHOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GAH(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GAHCEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GALOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GAL(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GALCEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SAOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SA(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SACEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DAOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DA(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DACEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KAOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KA(TP)Output: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KACEOutput: 60 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GBHOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GBH(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GBHCEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GBLOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GBL(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GBLCEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SBOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SB(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SBCEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DBOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DB(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DBCEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KBOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KB(TP)Output: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KBCEOutput: 60 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GCHOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GCH(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GCHCEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GCLOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GCL(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GCLCEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SCOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SC(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SCCEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DCOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DC(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DCCEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KCOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KC(TP)Output: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KCCEOutput: 60 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GDHOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R60GDH(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R60GDHCEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GDLOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R60GDL(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R60GDLCEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SDOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R60SD(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60SDCEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DDOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R60DD(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60DDCEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KDOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R60KD(TP)Output: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R60KDCEOutput: 60 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GEHOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R60GEHCEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GELOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R60GELCEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SEOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60SECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DEOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60DECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KEOutput: 60 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R60KECEOutput: 60 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60GXHOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R60GXHCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R60GXLOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R60GXLCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R60SXOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60SXCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60DXOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60DXCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R60KXOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R60KXCEOutput: 60 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GAHOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GAH(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GAHCEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GALOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GAL(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GALCEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SAOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SA(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SACEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DAOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DA(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DACEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KAOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KA(TP)Output: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KACEOutput: 90 W | Voltage: 1-ph 110 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GBHOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GBH(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GBHCEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GBLOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GBL(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GBLCEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SBOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SB(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SBCEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DBOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DB(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DBCEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KBOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KB(TP)Output: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KBCEOutput: 90 W | Voltage: 1-ph 220 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GCHOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GCH(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GCHCEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GCLOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GCL(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GCLCEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SCOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SC(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SCCEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DCOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DC(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DCCEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KCOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KC(TP)Output: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KCCEOutput: 90 W | Voltage: 1-ph 100 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GDHOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Standard
S9R90GDH(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected (TP)
S9R90GDHCEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GDLOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Standard
S9R90GDL(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected (TP)
S9R90GDLCEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SDOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Standard
S9R90SD(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90SDCEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DDOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Standard
S9R90DD(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90DDCEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KDOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Standard
S9R90KD(TP)Output: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected (TP)
S9R90KDCEOutput: 90 W | Voltage: 1-ph 200 V 50/60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GEHOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: UL, thermally protected
S9R90GEHCEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GELOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: UL, thermally protected
S9R90GELCEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SEOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90SECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DEOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90DECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KEOutput: 90 W | Voltage: 1-ph 100 V 50/60, 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: UL, thermally protected
S9R90KECEOutput: 90 W | Voltage: 1-ph 115 V 60 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90GXHOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: Thermally protected
S9R90GXHCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: H (heavy impact) | Version: CE, thermally protected
S9R90GXLOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: Thermally protected
S9R90GXLCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Pinion (gear type) | Pinion: L (light impact) | Version: CE, thermally protected
S9R90SXOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90SXCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Round (straight) | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90DXOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90DXCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: D-cut | Pinion: n/a (no pinion) | Version: CE, thermally protected
S9R90KXOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: Thermally protected
S9R90KXCEOutput: 90 W | Voltage: 1-ph 220/240 V 50 Hz | Shaft: Key | Pinion: n/a (no pinion) | Version: CE, thermally protected

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
