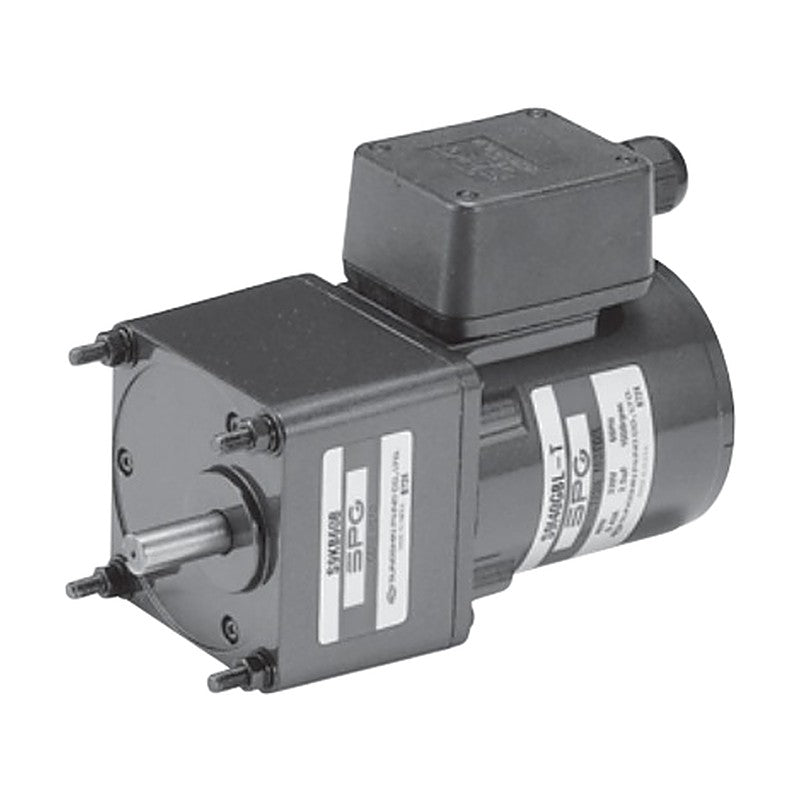

SPG 90 mm Terminal Box Reversible Motors (40–90 W)

SPG 90 mm reversible motors in terminal box construction, 40–90 W, for use with SPG K-type gearheads.

Key features

Terminal box seals the lead-wire connection against dust and moisture for harsh environments (gasket sealed)
T type: terminal block box with VDE-certified terminal block; T1 type: PCB terminal block box (80 mm 15 W and up)
Pinion (G) shaft for SPG K-type gearheads, or straight, D-cut and key round shafts per the catalog shaft table
(TP) suffix: built-in automatic-return thermal protector; CE suffix: CE certified model
H/L code letter after the voltage letter matches the gearhead H (heavy impact) or L (light impact) type
Reversible motors with built-in friction brake for instant CW/CCW reversal, 30 min rating

Specifications

Frame size	90 mm sq.
Motor type	Reversible motor, terminal box type
Duty	30 min rating
Poles	4
Insulation class	Class B (130°C)
Temperature rise	80 K max. after rated operation
Thermal protector (TP)	Auto return: open 120±5°C, close 76±15°C
Source	SPG Standard AC Geared Motor catalog, p. 138-157

S9R40GAH-T		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GAL-T		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SA-T		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DA-T		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KA-T		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GAH-T1		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GAL-T1		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SA-T1		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DA-T1		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KA-T1		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GAH-T(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GAL-T(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SA-T(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DA-T(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KA-T(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GAH-T1(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GAL-T1(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SA-T1(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DA-T1(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KA-T1(TP)		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GAH-TCE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GAL-TCE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SA-TCE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DA-TCE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KA-TCE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GAH-T1CE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GAL-T1CE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SA-T1CE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DA-T1CE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KA-T1CE		Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GBH-T		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GBL-T		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SB-T		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DB-T		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KB-T		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GBH-T1		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GBL-T1		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SB-T1		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DB-T1		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KB-T1		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GBH-T(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GBL-T(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SB-T(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DB-T(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KB-T(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GBH-T1(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GBL-T1(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SB-T1(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DB-T1(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KB-T1(TP)		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GBH-TCE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GBL-TCE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SB-TCE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DB-TCE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KB-TCE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GBH-T1CE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GBL-T1CE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SB-T1CE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DB-T1CE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KB-T1CE		Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GCH-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GCL-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SC-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DC-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KC-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GCH-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GCL-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SC-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DC-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KC-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GCH-T(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GCL-T(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SC-T(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DC-T(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KC-T(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GCH-T1(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GCL-T1(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SC-T1(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DC-T1(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KC-T1(TP)		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GCH-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GCL-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SC-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DC-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KC-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GCH-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GCL-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SC-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DC-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KC-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GDH-T		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GDL-T		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SD-T		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DD-T		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KD-T		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GDH-T1		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GDL-T1		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SD-T1		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DD-T1		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KD-T1		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GDH-T(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GDL-T(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SD-T(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DD-T(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KD-T(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GDH-T1(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R40GDL-T1(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R40SD-T1(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R40DD-T1(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R40KD-T1(TP)		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R40GDH-TCE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GDL-TCE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SD-TCE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DD-TCE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KD-TCE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GDH-T1CE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GDL-T1CE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SD-T1CE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DD-T1CE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KD-T1CE		Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GEH-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GEL-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SE-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DE-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KE-T		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GEH-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GEL-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SE-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DE-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KE-T1		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GEH-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GEL-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SE-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DE-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KE-TCE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GEH-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GEL-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SE-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DE-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KE-T1CE		Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GXH-T		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GXL-T		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SX-T		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DX-T		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KX-T		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GXH-T1		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R40GXL-T1		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R40SX-T1		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R40DX-T1		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R40KX-T1		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R40GXH-TCE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GXL-TCE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SX-TCE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DX-TCE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KX-TCE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R40GXH-T1CE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R40GXL-T1CE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R40SX-T1CE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R40DX-T1CE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R40KX-T1CE		Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GAH-T		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GAL-T		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SA-T		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DA-T		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KA-T		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GAH-T1		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GAL-T1		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SA-T1		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DA-T1		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KA-T1		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GAH-T(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GAL-T(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SA-T(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DA-T(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KA-T(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GAH-T1(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GAL-T1(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SA-T1(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DA-T1(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KA-T1(TP)		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GAH-TCE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GAL-TCE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SA-TCE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DA-TCE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KA-TCE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GAH-T1CE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GAL-T1CE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SA-T1CE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DA-T1CE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KA-T1CE		Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GBH-T		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GBL-T		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SB-T		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DB-T		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KB-T		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GBH-T1		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GBL-T1		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SB-T1		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DB-T1		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KB-T1		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GBH-T(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GBL-T(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SB-T(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DB-T(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KB-T(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GBH-T1(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GBL-T1(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SB-T1(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DB-T1(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KB-T1(TP)		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GBH-TCE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GBL-TCE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SB-TCE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DB-TCE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KB-TCE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GBH-T1CE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GBL-T1CE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SB-T1CE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DB-T1CE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KB-T1CE		Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GCH-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GCL-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SC-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DC-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KC-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GCH-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GCL-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SC-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DC-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KC-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GCH-T(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GCL-T(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SC-T(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DC-T(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KC-T(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GCH-T1(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GCL-T1(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SC-T1(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DC-T1(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KC-T1(TP)		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GCH-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GCL-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SC-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DC-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KC-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GCH-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GCL-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SC-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DC-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KC-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GDH-T		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GDL-T		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SD-T		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DD-T		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KD-T		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GDH-T1		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GDL-T1		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SD-T1		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DD-T1		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KD-T1		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GDH-T(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GDL-T(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SD-T(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DD-T(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KD-T(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GDH-T1(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R60GDL-T1(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R60SD-T1(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R60DD-T1(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R60KD-T1(TP)		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R60GDH-TCE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GDL-TCE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SD-TCE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DD-TCE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KD-TCE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GDH-T1CE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GDL-T1CE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SD-T1CE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DD-T1CE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KD-T1CE		Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GEH-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GEL-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SE-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DE-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KE-T		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GEH-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GEL-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SE-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DE-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KE-T1		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GEH-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GEL-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SE-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DE-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KE-TCE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GEH-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GEL-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SE-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DE-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KE-T1CE		Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GXH-T		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GXL-T		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SX-T		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DX-T		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KX-T		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GXH-T1		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R60GXL-T1		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R60SX-T1		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R60DX-T1		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R60KX-T1		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R60GXH-TCE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GXL-TCE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SX-TCE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DX-TCE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KX-TCE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R60GXH-T1CE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R60GXL-T1CE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R60SX-T1CE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R60DX-T1CE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R60KX-T1CE		Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GAH-T		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GAL-T		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SA-T		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DA-T		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KA-T		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GAH-T1		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GAL-T1		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SA-T1		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DA-T1		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KA-T1		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GAH-T(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GAL-T(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SA-T(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DA-T(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KA-T(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GAH-T1(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GAL-T1(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SA-T1(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DA-T1(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KA-T1(TP)		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GAH-TCE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GAL-TCE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SA-TCE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DA-TCE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KA-TCE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GAH-T1CE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GAL-T1CE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SA-T1CE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DA-T1CE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KA-T1CE		Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GBH-T		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GBL-T		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SB-T		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DB-T		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KB-T		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GBH-T1		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GBL-T1		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SB-T1		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DB-T1		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KB-T1		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GBH-T(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GBL-T(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SB-T(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DB-T(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KB-T(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GBH-T1(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GBL-T1(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SB-T1(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DB-T1(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KB-T1(TP)		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GBH-TCE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GBL-TCE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SB-TCE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DB-TCE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KB-TCE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GBH-T1CE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GBL-T1CE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SB-T1CE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DB-T1CE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KB-T1CE		Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GCH-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GCL-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SC-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DC-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KC-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GCH-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GCL-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SC-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DC-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KC-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GCH-T(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GCL-T(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SC-T(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DC-T(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KC-T(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GCH-T1(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GCL-T1(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SC-T1(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DC-T1(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KC-T1(TP)		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GCH-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GCL-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SC-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DC-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KC-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GCH-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GCL-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SC-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DC-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KC-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GDH-T		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GDL-T		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SD-T		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DD-T		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KD-T		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GDH-T1		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GDL-T1		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SD-T1		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DD-T1		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KD-T1		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GDH-T(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GDL-T(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SD-T(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DD-T(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KD-T(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GDH-T1(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
S9R90GDL-T1(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
S9R90SD-T1(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
S9R90DD-T1(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
S9R90KD-T1(TP)		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
S9R90GDH-TCE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GDL-TCE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SD-TCE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DD-TCE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KD-TCE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GDH-T1CE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GDL-T1CE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SD-T1CE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DD-T1CE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KD-T1CE		Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GEH-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GEL-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SE-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DE-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KE-T		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GEH-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GEL-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SE-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DE-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KE-T1		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GEH-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GEL-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SE-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DE-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KE-TCE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GEH-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GEL-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SE-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DE-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KE-T1CE		Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GXH-T		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GXL-T		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SX-T		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DX-T		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KX-T		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GXH-T1		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
S9R90GXL-T1		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
S9R90SX-T1		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
S9R90DX-T1		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
S9R90KX-T1		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
S9R90GXH-TCE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GXL-TCE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SX-TCE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DX-TCE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KX-TCE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
S9R90GXH-T1CE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
S9R90GXL-T1CE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
S9R90SX-T1CE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
S9R90DX-T1CE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
S9R90KX-T1CE		Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft

Reversible MotorsSPG

480 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 90 mm Terminal Box Reversible Motors (40–90 W)

Brand SPG·Reversible Motors

Available part numbers (480)

S9R40GAH-T, S9R40GAL-T, S9R40SA-T, S9R40DA-T, S9R40KA-T, S9R40GAH-T1, S9R40GAL-T1, S9R40SA-T1, S9R40DA-T1, S9R40KA-T1 + 470 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	S9R40GAH-T	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GAL-T	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SA-T	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DA-T	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KA-T	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GAH-T1	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GAL-T1	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SA-T1	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DA-T1	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KA-T1	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GAH-T(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GAL-T(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SA-T(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DA-T(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KA-T(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GAH-T1(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GAL-T1(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SA-T1(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DA-T1(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KA-T1(TP)	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GAH-TCE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GAL-TCE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SA-TCE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DA-TCE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KA-TCE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GAH-T1CE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GAL-T1CE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SA-T1CE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DA-T1CE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KA-T1CE	Output: 40 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GBH-T	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GBL-T	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SB-T	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DB-T	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KB-T	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GBH-T1	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GBL-T1	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SB-T1	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DB-T1	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KB-T1	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GBH-T(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GBL-T(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SB-T(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DB-T(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KB-T(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GBH-T1(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GBL-T1(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SB-T1(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DB-T1(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KB-T1(TP)	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GBH-TCE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GBL-TCE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SB-TCE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DB-TCE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KB-TCE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GBH-T1CE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GBL-T1CE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SB-T1CE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DB-T1CE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KB-T1CE	Output: 40 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GCH-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GCL-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SC-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DC-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KC-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GCH-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GCL-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SC-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DC-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KC-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GCH-T(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GCL-T(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SC-T(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DC-T(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KC-T(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GCH-T1(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GCL-T1(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SC-T1(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DC-T1(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KC-T1(TP)	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GCH-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GCL-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SC-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DC-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KC-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GCH-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GCL-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SC-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DC-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KC-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GDH-T	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GDL-T	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SD-T	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DD-T	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KD-T	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GDH-T1	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GDL-T1	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SD-T1	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DD-T1	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KD-T1	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GDH-T(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GDL-T(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SD-T(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DD-T(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KD-T(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GDH-T1(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R40GDL-T1(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R40SD-T1(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R40DD-T1(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R40KD-T1(TP)	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R40GDH-TCE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GDL-TCE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SD-TCE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DD-TCE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KD-TCE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GDH-T1CE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GDL-T1CE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SD-T1CE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DD-T1CE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KD-T1CE	Output: 40 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GEH-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GEL-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SE-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DE-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KE-T	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GEH-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GEL-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SE-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DE-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KE-T1	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GEH-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GEL-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SE-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DE-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KE-TCE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GEH-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GEL-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SE-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DE-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KE-T1CE	Output: 40 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GXH-T	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GXL-T	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SX-T	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DX-T	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KX-T	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GXH-T1	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R40GXL-T1	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R40SX-T1	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R40DX-T1	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R40KX-T1	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R40GXH-TCE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GXL-TCE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SX-TCE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DX-TCE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KX-TCE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R40GXH-T1CE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R40GXL-T1CE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R40SX-T1CE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R40DX-T1CE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R40KX-T1CE	Output: 40 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GAH-T	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GAL-T	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SA-T	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DA-T	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KA-T	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GAH-T1	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GAL-T1	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SA-T1	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DA-T1	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KA-T1	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GAH-T(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GAL-T(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SA-T(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DA-T(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KA-T(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GAH-T1(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GAL-T1(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SA-T1(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DA-T1(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KA-T1(TP)	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GAH-TCE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GAL-TCE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SA-TCE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DA-TCE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KA-TCE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GAH-T1CE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GAL-T1CE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SA-T1CE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DA-T1CE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KA-T1CE	Output: 60 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GBH-T	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GBL-T	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SB-T	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DB-T	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KB-T	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GBH-T1	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GBL-T1	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SB-T1	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DB-T1	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KB-T1	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GBH-T(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GBL-T(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SB-T(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DB-T(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KB-T(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GBH-T1(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GBL-T1(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SB-T1(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DB-T1(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KB-T1(TP)	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GBH-TCE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GBL-TCE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SB-TCE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DB-TCE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KB-TCE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GBH-T1CE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GBL-T1CE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SB-T1CE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DB-T1CE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KB-T1CE	Output: 60 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GCH-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GCL-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SC-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DC-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KC-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GCH-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GCL-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SC-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DC-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KC-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GCH-T(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GCL-T(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SC-T(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DC-T(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KC-T(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GCH-T1(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GCL-T1(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SC-T1(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DC-T1(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KC-T1(TP)	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GCH-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GCL-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SC-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DC-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KC-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GCH-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GCL-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SC-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DC-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KC-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GDH-T	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GDL-T	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SD-T	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DD-T	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KD-T	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GDH-T1	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GDL-T1	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SD-T1	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DD-T1	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KD-T1	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GDH-T(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GDL-T(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SD-T(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DD-T(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KD-T(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GDH-T1(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R60GDL-T1(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R60SD-T1(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R60DD-T1(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R60KD-T1(TP)	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R60GDH-TCE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GDL-TCE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SD-TCE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DD-TCE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KD-TCE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GDH-T1CE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GDL-T1CE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SD-T1CE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DD-T1CE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KD-T1CE	Output: 60 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GEH-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GEL-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SE-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DE-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KE-T	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GEH-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GEL-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SE-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DE-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KE-T1	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GEH-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GEL-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SE-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DE-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KE-TCE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GEH-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GEL-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SE-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DE-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KE-T1CE	Output: 60 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GXH-T	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GXL-T	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SX-T	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DX-T	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KX-T	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GXH-T1	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R60GXL-T1	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R60SX-T1	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R60DX-T1	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R60KX-T1	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R60GXH-TCE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GXL-TCE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SX-TCE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DX-TCE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KX-TCE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R60GXH-T1CE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R60GXL-T1CE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R60SX-T1CE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R60DX-T1CE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R60KX-T1CE	Output: 60 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GAH-T	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GAL-T	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SA-T	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DA-T	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KA-T	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GAH-T1	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GAL-T1	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SA-T1	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DA-T1	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KA-T1	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GAH-T(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GAL-T(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SA-T(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DA-T(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KA-T(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GAH-T1(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GAL-T1(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SA-T1(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DA-T1(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KA-T1(TP)	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GAH-TCE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GAL-TCE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SA-TCE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DA-TCE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KA-TCE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GAH-T1CE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GAL-T1CE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SA-T1CE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DA-T1CE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KA-T1CE	Output: 90 W \| Voltage: 1-ph 110 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GBH-T	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GBL-T	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SB-T	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DB-T	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KB-T	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GBH-T1	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GBL-T1	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SB-T1	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DB-T1	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KB-T1	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GBH-T(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GBL-T(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SB-T(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DB-T(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KB-T(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GBH-T1(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GBL-T1(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SB-T1(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DB-T1(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KB-T1(TP)	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GBH-TCE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GBL-TCE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SB-TCE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DB-TCE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KB-TCE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GBH-T1CE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GBL-T1CE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SB-T1CE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DB-T1CE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KB-T1CE	Output: 90 W \| Voltage: 1-ph 220 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GCH-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GCL-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SC-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DC-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KC-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GCH-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GCL-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SC-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DC-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KC-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GCH-T(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GCL-T(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SC-T(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DC-T(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KC-T(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GCH-T1(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GCL-T1(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SC-T1(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DC-T1(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KC-T1(TP)	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GCH-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GCL-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SC-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DC-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KC-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GCH-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GCL-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SC-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DC-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KC-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GDH-T	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GDL-T	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SD-T	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DD-T	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KD-T	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GDH-T1	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GDL-T1	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SD-T1	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DD-T1	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KD-T1	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GDH-T(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GDL-T(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SD-T(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DD-T(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KD-T(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GDH-T1(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, H type (heavy)
	S9R90GDL-T1(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Pinion, L type (light)
	S9R90SD-T1(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Straight round shaft
	S9R90DD-T1(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: D-cut round shaft
	S9R90KD-T1(TP)	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Thermal protector (TP) \| Shaft: Key round shaft
	S9R90GDH-TCE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GDL-TCE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SD-TCE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DD-TCE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KD-TCE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GDH-T1CE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GDL-T1CE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SD-T1CE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DD-T1CE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KD-T1CE	Output: 90 W \| Voltage: 1-ph 200 V 50/60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GEH-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GEL-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SE-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DE-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KE-T	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GEH-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GEL-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SE-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DE-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KE-T1	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GEH-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GEL-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SE-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DE-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KE-TCE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GEH-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GEL-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SE-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DE-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KE-T1CE	Output: 90 W \| Voltage: 1-ph 100 V 50/60, 115 V 60 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GXH-T	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GXL-T	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SX-T	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DX-T	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KX-T	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GXH-T1	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, H type (heavy)
	S9R90GXL-T1	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Pinion, L type (light)
	S9R90SX-T1	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Straight round shaft
	S9R90DX-T1	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: D-cut round shaft
	S9R90KX-T1	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: Standard \| Shaft: Key round shaft
	S9R90GXH-TCE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GXL-TCE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SX-TCE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DX-TCE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KX-TCE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T: terminal block \| Protection: CE certified type \| Shaft: Key round shaft
	S9R90GXH-T1CE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, H type (heavy)
	S9R90GXL-T1CE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Pinion, L type (light)
	S9R90SX-T1CE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Straight round shaft
	S9R90DX-T1CE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: D-cut round shaft
	S9R90KX-T1CE	Output: 90 W \| Voltage: 1-ph 220/240 V 50 Hz \| Terminal box: T1: PCB terminal block \| Protection: CE certified type \| Shaft: Key round shaft

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG 90 mm Terminal Box Reversible Motors (40–90 W)
