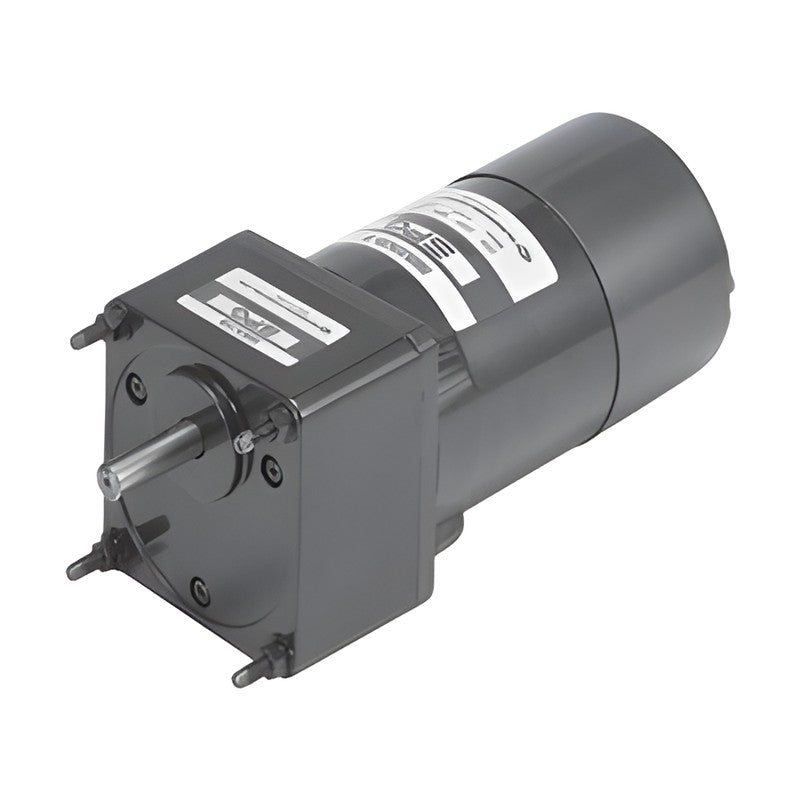

SPG SG 60 mm Electromagnetic Brake Motors (Lead Wire, 6 W)

SPG SG 60 mm Electromagnetic Brake Motors (Lead Wire, 6 W)

SPG SG series 60 mm square-flange AC electromagnetic brake motors, 6 W, lead-wire type, with a power-off (non-excitation) brake that stops the shaft and holds the load when power is removed.

Key features

  • AC non-excitation run electromagnetic brake mounted at the motor rear; brake engages instantly at power off and holds the load
  • Brake has a built-in rectifier and runs from the same AC supply as the motor; holding force 0.5 to 10 kgf·cm across the range
  • Single-phase versions are built on reversible motors (S2 30 min rating)
  • Shaft options: pinion (gear type) for SG gearheads, D-cut or straight round shaft
  • Two capacitor values per voltage code; specify AC 100 V or 200 V operation when ordering
  • Gearheads are sold separately (SG K/D/S-type gearheads of the same frame)

Specifications

Output 6 W
Motor type Reversible, 1-phase
Duty S2 (30 min)
Frame size 60 mm square
Poles 4
Insulation class B (130 °C)
Degree of protection IP23
Overheat protection Impedance protected (Z.P.)
Rated speed 1250-1350 r/min (50 Hz), 1500-1650 r/min (60 Hz)
Lead wire Lead wire type, 300 mm
Certifications UL, TUV, CCC (CE marked)
Source SPG Standard SG AC Geared Motor catalog, p. 63-67
SG6R06GA-E Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06DA-E Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06SA-E Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06GB-E Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
SG6R06DB-E Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
SG6R06SB-E Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
Brake MotorsSPG
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 60 mm Electromagnetic Brake Motors (Lead Wire, 6 W)

Brand SPG·Brake Motors

Available part numbers (6)

SG6R06GA-E, SG6R06DA-E, SG6R06SA-E, SG6R06GB-E, SG6R06DB-E, SG6R06SB-E

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG6R06GA-EShaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06DA-EShaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06SA-EShaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 4.5 uF @100 V / 3.5 uF @110-115 V
SG6R06GB-EShaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
SG6R06DB-EShaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
SG6R06SB-EShaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 1.0 uF @200 V / 0.8 uF @220-230 V
