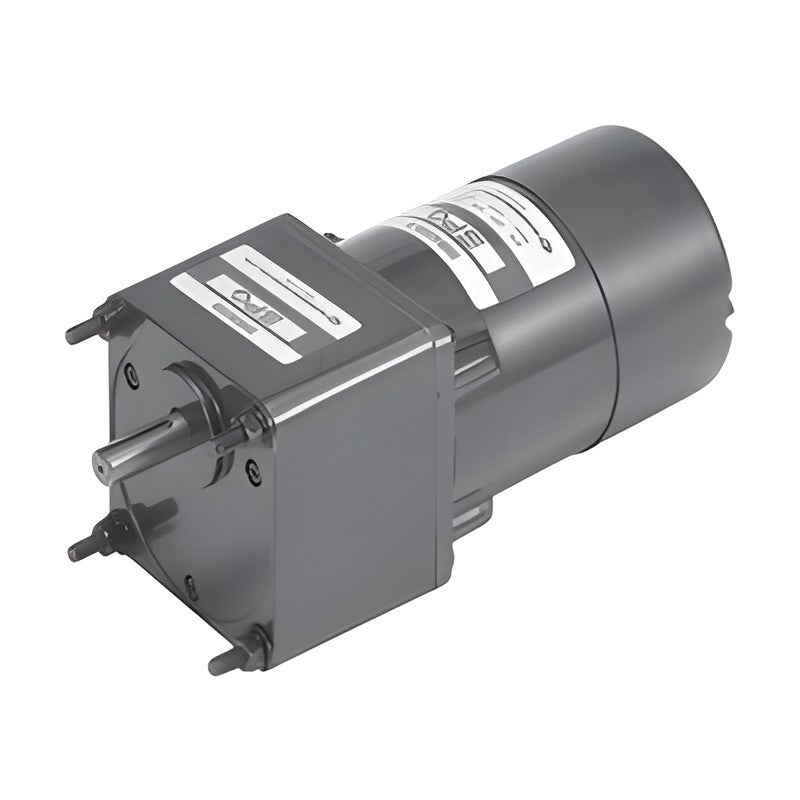

SPG SG 80 mm Electromagnetic Brake Motors (Lead Wire, 25 W)

SPG SG 80 mm Electromagnetic Brake Motors (Lead Wire, 25 W)

SPG SG series 80 mm square-flange AC electromagnetic brake motors, 25 W, lead-wire type, with a power-off (non-excitation) brake that stops the shaft and holds the load when power is removed.

Key features

  • AC non-excitation run electromagnetic brake mounted at the motor rear; brake engages instantly at power off and holds the load
  • Brake has a built-in rectifier and runs from the same AC supply as the motor; holding force 0.5 to 10 kgf·cm across the range
  • Single-phase versions are built on reversible motors (S2 30 min rating); three-phase versions on induction motors (continuous rating)
  • Shaft options: pinion (gear type) for SG gearheads, key, D-cut or straight round shaft
  • Two capacitor values per voltage code; specify AC 100 V or 200 V operation when ordering
  • Gearheads are sold separately (SG K/D/S-type gearheads of the same frame)

Specifications

Output 25 W
Frame size 80 mm square
Poles 4
Insulation class B (130 °C)
Degree of protection IP23
Overheat protection Thermal protector (T.P.), auto reset
Rated speed 1250-1350 r/min (50 Hz), 1500-1650 r/min (60 Hz)
Lead wire Lead wire type, 300 mm
Certifications UL, TUV, CCC (CE marked)
Source SPG Standard SG AC Geared Motor catalog, p. 63-65, 70-71
SG8R25GA-E Motor type: Reversible, 1-phase | Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25KA-E Motor type: Reversible, 1-phase | Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25DA-E Motor type: Reversible, 1-phase | Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25SA-E Motor type: Reversible, 1-phase | Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25GB-E Motor type: Reversible, 1-phase | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25KB-E Motor type: Reversible, 1-phase | Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25DB-E Motor type: Reversible, 1-phase | Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25SB-E Motor type: Reversible, 1-phase | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8I25GT-E Motor type: Induction, 3-phase | Shaft: Pinion (gear type) | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25KT-E Motor type: Induction, 3-phase | Shaft: Key | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25DT-E Motor type: Induction, 3-phase | Shaft: D-cut | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25ST-E Motor type: Induction, 3-phase | Shaft: Straight (round) | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25GS-E Motor type: Induction, 3-phase | Shaft: Pinion (gear type) | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25KS-E Motor type: Induction, 3-phase | Shaft: Key | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25DS-E Motor type: Induction, 3-phase | Shaft: D-cut | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25SS-E Motor type: Induction, 3-phase | Shaft: Straight (round) | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
Brake MotorsSPG
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 80 mm Electromagnetic Brake Motors (Lead Wire, 25 W)

Brand SPG·Brake Motors

Available part numbers (16)

SG8R25GA-E, SG8R25KA-E, SG8R25DA-E, SG8R25SA-E, SG8R25GB-E, SG8R25KB-E, SG8R25DB-E, SG8R25SB-E, SG8I25GT-E, SG8I25KT-E + 6 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG8R25GA-EMotor type: Reversible, 1-phase | Shaft: Pinion (gear type) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25KA-EMotor type: Reversible, 1-phase | Shaft: Key | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25DA-EMotor type: Reversible, 1-phase | Shaft: D-cut | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25SA-EMotor type: Reversible, 1-phase | Shaft: Straight (round) | Power supply: 1-ph 100 V 50/60 Hz, 110/115 V 60 Hz | Capacitor: 10.0 uF @100 V / 8.0 uF @110-115 V | Duty: S2 (30 min)
SG8R25GB-EMotor type: Reversible, 1-phase | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25KB-EMotor type: Reversible, 1-phase | Shaft: Key | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25DB-EMotor type: Reversible, 1-phase | Shaft: D-cut | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8R25SB-EMotor type: Reversible, 1-phase | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF @200 V / 2.0 uF @220-230 V | Duty: S2 (30 min)
SG8I25GT-EMotor type: Induction, 3-phase | Shaft: Pinion (gear type) | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25KT-EMotor type: Induction, 3-phase | Shaft: Key | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25DT-EMotor type: Induction, 3-phase | Shaft: D-cut | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25ST-EMotor type: Induction, 3-phase | Shaft: Straight (round) | Power supply: 3-ph 200/220/230 V 50/60 Hz | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25GS-EMotor type: Induction, 3-phase | Shaft: Pinion (gear type) | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25KS-EMotor type: Induction, 3-phase | Shaft: Key | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25DS-EMotor type: Induction, 3-phase | Shaft: D-cut | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
SG8I25SS-EMotor type: Induction, 3-phase | Shaft: Straight (round) | Power supply: 3-ph 380/400/415/440 V | Capacitor: None (3-phase) | Duty: S1 (continuous)
