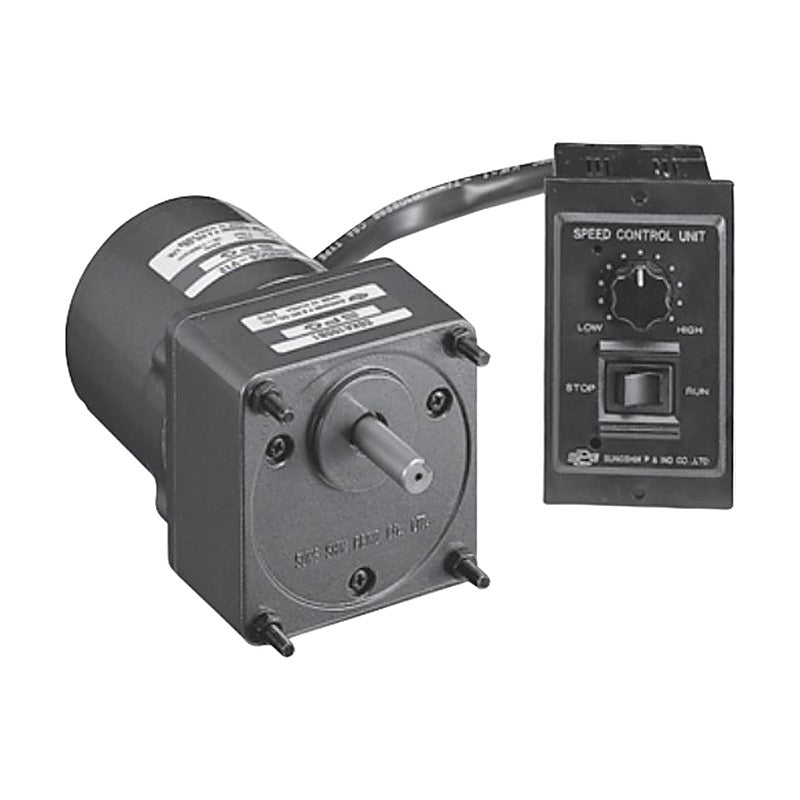

SPG SG 80 mm Reversible Speed Control Motors (25 W)

SPG SG 80 mm Reversible Speed Control Motors (25 W)

SPG SG global series SG8R25 25 W single-phase reversible speed control motor for 80 mm frame, lead wire type, run with an SR or SS pack speed controller.

Key features

  • Speed range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz) with the matching SPG speed controller
  • Built-in tacho generator: -S12/-ES12 for SR pack controllers (12 V), -S24/-ES24 for SS pack controllers (24 V)
  • Output shaft types: Pinion (gear type), Key, D-cut, Straight (round) (key type from 80 mm frame, 25 W and up)
  • Pinion-shaft motors mate with SPG SG8KA / SG8DA / SG8SA gearheads (key / D-cut / straight output, sold separately)
  • All SG series models carry UL, TUV and CCC certification; two capacitor ratings by supply voltage (AC 100 V / 200 V supplied on request)

Specifications

Series SG global series
Frame size 80 mm square
Output 25 W
Motor type Reversible
Poles 4
Duty 30 min (S2)
Insulation class B (130 C)
Protection Thermally protected (T.P.), IP23
Connection Lead wire, 300 mm
Motor weight 1.60 kg
Certifications UL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 198-200
SG8R25GA-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25KA-S12 Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25DA-S12 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25SA-S12 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25GB-S12 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25KB-S12 Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25DB-S12 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25SB-S12 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25GA-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25KA-S24 Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25DA-S24 Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25SA-S24 Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25GB-S24 Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25KB-S24 Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25DB-S24 Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25SB-S24 Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
Speed Control MotorsSPG
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 80 mm Reversible Speed Control Motors (25 W)

Brand SPG·Speed Control Motors

Available part numbers (16)

SG8R25GA-S12, SG8R25KA-S12, SG8R25DA-S12, SG8R25SA-S12, SG8R25GB-S12, SG8R25KB-S12, SG8R25DB-S12, SG8R25SB-S12, SG8R25GA-S24, SG8R25KA-S24 + 6 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG8R25GA-S12Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25KA-S12Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25DA-S12Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25SA-S12Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRA02-A
SG8R25GB-S12Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25KB-S12Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25DB-S12Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25SB-S12Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SR pack, tacho gen. 12 V | Controller: SRB02-B
SG8R25GA-S24Shaft: Pinion (gear type) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25KA-S24Shaft: Key | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25DA-S24Shaft: D-cut | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25SA-S24Shaft: Straight (round) | Voltage: 1Ph 100/110/115 V 50/60 Hz | Capacitor: 10.0 uF (100 V), 8.0 uF (110/115 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSA02-SRSSA / SHA03-SRSSA
SG8R25GB-S24Shaft: Pinion (gear type) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25KB-S24Shaft: Key | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25DB-S24Shaft: D-cut | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
SG8R25SB-S24Shaft: Straight (round) | Voltage: 1Ph 200/220/230 V 50/60 Hz | Capacitor: 2.5 uF (200 V), 2.0 uF (220/230 V) | Control type: SS pack, tacho gen. 24 V | Controller: SSB02-SRSSB / SHB03-SRSSB
