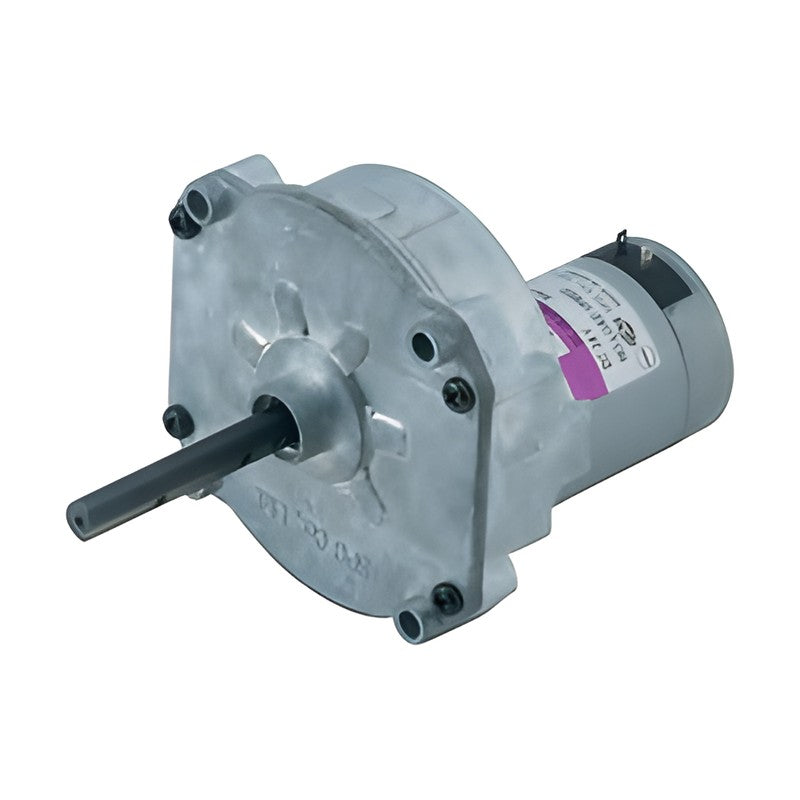

SPG SG Compact Parallel-Shaft DC Geared Motors (24 V)

SPG SG Compact Parallel-Shaft DC Geared Motors (24 V)

SPG SG series compact DC geared motors combining a 40 mm permanent-magnet DC motor with an offset gearbox, 24 V DC.

Key features

  • 40 mm permanent-magnet DC motor in five lengths (42-46)
  • Standard gear ratios: 395.7, 1218.1, 1412.5, 1620.7, 1709.9, 3238.2
  • Offset gearbox with tapped mounting holes in the cover
  • Lead wires 457 mm (red/black) as connector option
  • Other gear ratios on request

Specifications

Motor type Permanent magnet DC, 40 mm dia.
Voltage 24 V DC (B)
Standard gear ratios 395.7, 1218.1, 1412.5, 1620.7, 1709.9, 3238.2
Torque data At 24 V DC
Order code Printed base model + suffix per SPG quote
Source SPG DC Geared Motor catalog, p. 12
SG42B Motor: 40 mm, length 46.4 mm | Overall length A: 77.8 mm | Max. torque (24 V): 29.98 N-m
SG43B Motor: 40 mm, length 56.0 mm | Overall length A: 87.4 mm | Max. torque (24 V): 33.81 N-m
SG44B Motor: 40 mm, length 61.1 mm | Overall length A: 92.5 mm | Max. torque (24 V): 33.81 N-m
SG45B Motor: 40 mm, length 68.7 mm | Overall length A: 100.1 mm | Max. torque (24 V): 33.81 N-m
SG46B Motor: 40 mm, length 77.6 mm | Overall length A: 109.0 mm | Max. torque (24 V): 33.81 N-m
DC Geared MotorsSPG
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG Compact Parallel-Shaft DC Geared Motors (24 V)

Brand SPG·DC Geared Motors

Available part numbers (5)

SG42B, SG43B, SG44B, SG45B, SG46B

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG42BMotor: 40 mm, length 46.4 mm | Overall length A: 77.8 mm | Max. torque (24 V): 29.98 N-m
SG43BMotor: 40 mm, length 56.0 mm | Overall length A: 87.4 mm | Max. torque (24 V): 33.81 N-m
SG44BMotor: 40 mm, length 61.1 mm | Overall length A: 92.5 mm | Max. torque (24 V): 33.81 N-m
SG45BMotor: 40 mm, length 68.7 mm | Overall length A: 100.1 mm | Max. torque (24 V): 33.81 N-m
SG46BMotor: 40 mm, length 77.6 mm | Overall length A: 109.0 mm | Max. torque (24 V): 33.81 N-m
