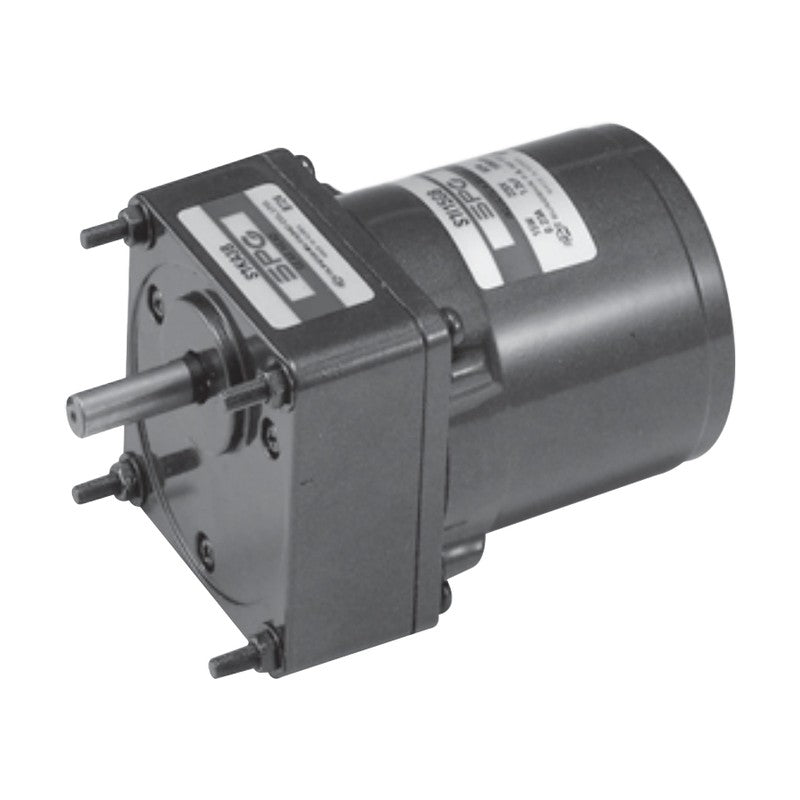

SPG SG7KA 70 mm Gearheads (Key/D-cut/Straight, 1/5-1/360)

SPG SG7KA 70 mm Gearheads (Key/D-cut/Straight, 1/5-1/360)

SPG SG global series 70 mm parallel-shaft gearheads SG7KA/SG7DA/SG7SA for 15 W (SG7I15 / SG7R15) motors, ratios 1/5 to 1/360.

Key features

  • Mates with SG 70 mm pinion-shaft (G type) motors: 15 W (SG7I15 / SG7R15)
  • Output shaft type in the code: K key, D D-cut or S straight (round) shaft
  • 25 reduction ratios from 1/5 to 1/360, ratio printed at the end of the model number
  • Ball-bearing output with heat-treated gears
  • Max. permissible torque 10.0 N.m (100 kgf.cm) (reached at the higher ratios)
  • Output direction same as or opposite to the motor depending on ratio (see catalog table)

Specifications

Frame size 70 mm square
Gearhead class A (SG coding)
Applicable motors 15 W (SG7I15 / SG7R15)
Output shaft diameter 12 mm h7
Max. permissible torque 10.0 N.m (100 kgf.cm)
Bearing Ball bearing
Output speed 1500/1800 r/min (50/60 Hz) divided by ratio
Source SPG Standard SG AC Geared Motor catalog, p. 36-37
SG7KA5 Output shaft: Key | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA6 Output shaft: Key | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7KA7.5 Output shaft: Key | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA9 Output shaft: Key | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7KA10 Output shaft: Key | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7KA12.5 Output shaft: Key | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA15 Output shaft: Key | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7KA18 Output shaft: Key | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7KA20 Output shaft: Key | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7KA25 Output shaft: Key | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7KA30 Output shaft: Key | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7KA36 Output shaft: Key | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7KA40 Output shaft: Key | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7KA50 Output shaft: Key | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7KA60 Output shaft: Key | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7KA75 Output shaft: Key | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7KA90 Output shaft: Key | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7KA100 Output shaft: Key | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7KA120 Output shaft: Key | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7KA150 Output shaft: Key | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7KA180 Output shaft: Key | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7KA200 Output shaft: Key | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7KA250 Output shaft: Key | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7KA300 Output shaft: Key | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7KA360 Output shaft: Key | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg
SG7DA5 Output shaft: D-cut | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA6 Output shaft: D-cut | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7DA7.5 Output shaft: D-cut | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA9 Output shaft: D-cut | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7DA10 Output shaft: D-cut | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7DA12.5 Output shaft: D-cut | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA15 Output shaft: D-cut | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7DA18 Output shaft: D-cut | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7DA20 Output shaft: D-cut | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7DA25 Output shaft: D-cut | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7DA30 Output shaft: D-cut | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7DA36 Output shaft: D-cut | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7DA40 Output shaft: D-cut | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7DA50 Output shaft: D-cut | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7DA60 Output shaft: D-cut | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7DA75 Output shaft: D-cut | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7DA90 Output shaft: D-cut | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7DA100 Output shaft: D-cut | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7DA120 Output shaft: D-cut | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7DA150 Output shaft: D-cut | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7DA180 Output shaft: D-cut | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7DA200 Output shaft: D-cut | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7DA250 Output shaft: D-cut | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7DA300 Output shaft: D-cut | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7DA360 Output shaft: D-cut | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg
SG7SA5 Output shaft: Straight (round) | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA6 Output shaft: Straight (round) | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7SA7.5 Output shaft: Straight (round) | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA9 Output shaft: Straight (round) | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7SA10 Output shaft: Straight (round) | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7SA12.5 Output shaft: Straight (round) | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA15 Output shaft: Straight (round) | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7SA18 Output shaft: Straight (round) | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7SA20 Output shaft: Straight (round) | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7SA25 Output shaft: Straight (round) | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7SA30 Output shaft: Straight (round) | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7SA36 Output shaft: Straight (round) | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7SA40 Output shaft: Straight (round) | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7SA50 Output shaft: Straight (round) | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7SA60 Output shaft: Straight (round) | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7SA75 Output shaft: Straight (round) | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7SA90 Output shaft: Straight (round) | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7SA100 Output shaft: Straight (round) | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7SA120 Output shaft: Straight (round) | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7SA150 Output shaft: Straight (round) | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7SA180 Output shaft: Straight (round) | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7SA200 Output shaft: Straight (round) | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7SA250 Output shaft: Straight (round) | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7SA300 Output shaft: Straight (round) | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7SA360 Output shaft: Straight (round) | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg
GearheadsSPG
75 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG7KA 70 mm Gearheads (Key/D-cut/Straight, 1/5-1/360)

Brand SPG·Gearheads

Available part numbers (75)

SG7KA5, SG7KA6, SG7KA7.5, SG7KA9, SG7KA10, SG7KA12.5, SG7KA15, SG7KA18, SG7KA20, SG7KA25 + 65 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG7KA5Output shaft: Key | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA6Output shaft: Key | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7KA7.5Output shaft: Key | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA9Output shaft: Key | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7KA10Output shaft: Key | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7KA12.5Output shaft: Key | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7KA15Output shaft: Key | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7KA18Output shaft: Key | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7KA20Output shaft: Key | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7KA25Output shaft: Key | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7KA30Output shaft: Key | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7KA36Output shaft: Key | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7KA40Output shaft: Key | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7KA50Output shaft: Key | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7KA60Output shaft: Key | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7KA75Output shaft: Key | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7KA90Output shaft: Key | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7KA100Output shaft: Key | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7KA120Output shaft: Key | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7KA150Output shaft: Key | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7KA180Output shaft: Key | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7KA200Output shaft: Key | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7KA250Output shaft: Key | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7KA300Output shaft: Key | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7KA360Output shaft: Key | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg
SG7DA5Output shaft: D-cut | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA6Output shaft: D-cut | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7DA7.5Output shaft: D-cut | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA9Output shaft: D-cut | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7DA10Output shaft: D-cut | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7DA12.5Output shaft: D-cut | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7DA15Output shaft: D-cut | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7DA18Output shaft: D-cut | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7DA20Output shaft: D-cut | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7DA25Output shaft: D-cut | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7DA30Output shaft: D-cut | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7DA36Output shaft: D-cut | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7DA40Output shaft: D-cut | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7DA50Output shaft: D-cut | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7DA60Output shaft: D-cut | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7DA75Output shaft: D-cut | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7DA90Output shaft: D-cut | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7DA100Output shaft: D-cut | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7DA120Output shaft: D-cut | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7DA150Output shaft: D-cut | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7DA180Output shaft: D-cut | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7DA200Output shaft: D-cut | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7DA250Output shaft: D-cut | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7DA300Output shaft: D-cut | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7DA360Output shaft: D-cut | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg
SG7SA5Output shaft: Straight (round) | Ratio: 1/5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA6Output shaft: Straight (round) | Ratio: 1/6 | Length L: 43 mm | Weight: 0.42 kg
SG7SA7.5Output shaft: Straight (round) | Ratio: 1/7.5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA9Output shaft: Straight (round) | Ratio: 1/9 | Length L: 43 mm | Weight: 0.42 kg
SG7SA10Output shaft: Straight (round) | Ratio: 1/10 | Length L: 43 mm | Weight: 0.42 kg
SG7SA12.5Output shaft: Straight (round) | Ratio: 1/12.5 | Length L: 43 mm | Weight: 0.42 kg
SG7SA15Output shaft: Straight (round) | Ratio: 1/15 | Length L: 43 mm | Weight: 0.42 kg
SG7SA18Output shaft: Straight (round) | Ratio: 1/18 | Length L: 43 mm | Weight: 0.42 kg
SG7SA20Output shaft: Straight (round) | Ratio: 1/20 | Length L: 43 mm | Weight: 0.42 kg
SG7SA25Output shaft: Straight (round) | Ratio: 1/25 | Length L: 43 mm | Weight: 0.42 kg
SG7SA30Output shaft: Straight (round) | Ratio: 1/30 | Length L: 43 mm | Weight: 0.42 kg
SG7SA36Output shaft: Straight (round) | Ratio: 1/36 | Length L: 43 mm | Weight: 0.42 kg
SG7SA40Output shaft: Straight (round) | Ratio: 1/40 | Length L: 43 mm | Weight: 0.42 kg
SG7SA50Output shaft: Straight (round) | Ratio: 1/50 | Length L: 43 mm | Weight: 0.42 kg
SG7SA60Output shaft: Straight (round) | Ratio: 1/60 | Length L: 43 mm | Weight: 0.42 kg
SG7SA75Output shaft: Straight (round) | Ratio: 1/75 | Length L: 43 mm | Weight: 0.42 kg
SG7SA90Output shaft: Straight (round) | Ratio: 1/90 | Length L: 43 mm | Weight: 0.42 kg
SG7SA100Output shaft: Straight (round) | Ratio: 1/100 | Length L: 43 mm | Weight: 0.42 kg
SG7SA120Output shaft: Straight (round) | Ratio: 1/120 | Length L: 43 mm | Weight: 0.42 kg
SG7SA150Output shaft: Straight (round) | Ratio: 1/150 | Length L: 48 mm | Weight: 0.52 kg
SG7SA180Output shaft: Straight (round) | Ratio: 1/180 | Length L: 48 mm | Weight: 0.52 kg
SG7SA200Output shaft: Straight (round) | Ratio: 1/200 | Length L: 48 mm | Weight: 0.52 kg
SG7SA250Output shaft: Straight (round) | Ratio: 1/250 | Length L: 48 mm | Weight: 0.52 kg
SG7SA300Output shaft: Straight (round) | Ratio: 1/300 | Length L: 48 mm | Weight: 0.52 kg
SG7SA360Output shaft: Straight (round) | Ratio: 1/360 | Length L: 48 mm | Weight: 0.52 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
