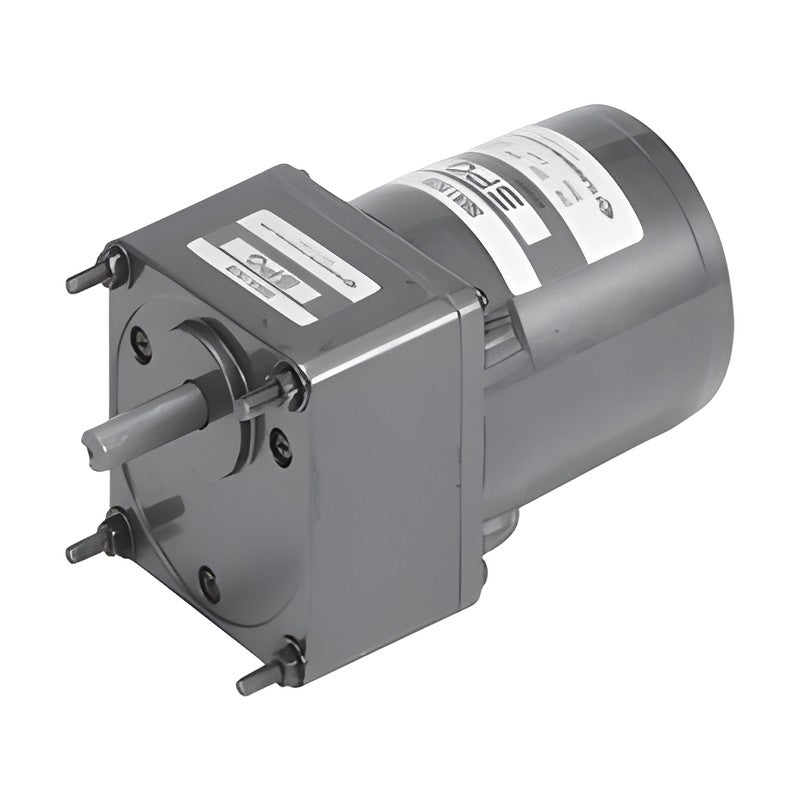

SPG SG 80 mm Reversible Motors (Lead Wire Type, 25 W)

SPG SG 80 mm Reversible Motors (Lead Wire Type, 25 W)

SPG SG global series 80 mm 25 W single-phase reversible motors with lead wires, ordered by output, shaft type and voltage code.

Key features

  • Single-phase reversible motor for instantaneous forward/reverse switching
  • Built-in simple friction brake mechanism limits overrun when stopping
  • Main and auxiliary windings identical for equal characteristics in both directions; high starting torque
  • 80 mm square frame, 25 W, 4-pole, 30-minute rating; rear cover adds approx. 4 mm length
  • Shaft options in the code: G pinion, D D-cut, S straight, K key; voltage code A (100-115 V) or B (200-230 V)
  • cUL, TUV and CCC certified; gearheads sold separately

Specifications

Motor type Reversible motor (capacitor-run, single phase), lead wire type
Frame size 80 mm square
Output 25 W
Poles 4
Duty 30 min short time (S2)
Overheat protection Thermally protected (T.P., auto reset)
Degree of protection IP23
Insulation class B (130 C)
Certifications cUL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 54-55
SG8R25GA Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 10.0/8.0 uF (250 V)
SG8R25KA Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 10.0/8.0 uF (250 V)
SG8R25DA Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 10.0/8.0 uF (250 V)
SG8R25SA Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 10.0/8.0 uF (250 V)
SG8R25GB Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 2.5/2.0 uF (450 V)
SG8R25KB Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 2.5/2.0 uF (450 V)
SG8R25DB Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 2.5/2.0 uF (450 V)
SG8R25SB Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 2.5/2.0 uF (450 V)
Reversible MotorsSPG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 80 mm Reversible Motors (Lead Wire Type, 25 W)

Brand SPG·Reversible Motors

Available part numbers (8)

SG8R25GA, SG8R25KA, SG8R25DA, SG8R25SA, SG8R25GB, SG8R25KB, SG8R25DB, SG8R25SB
