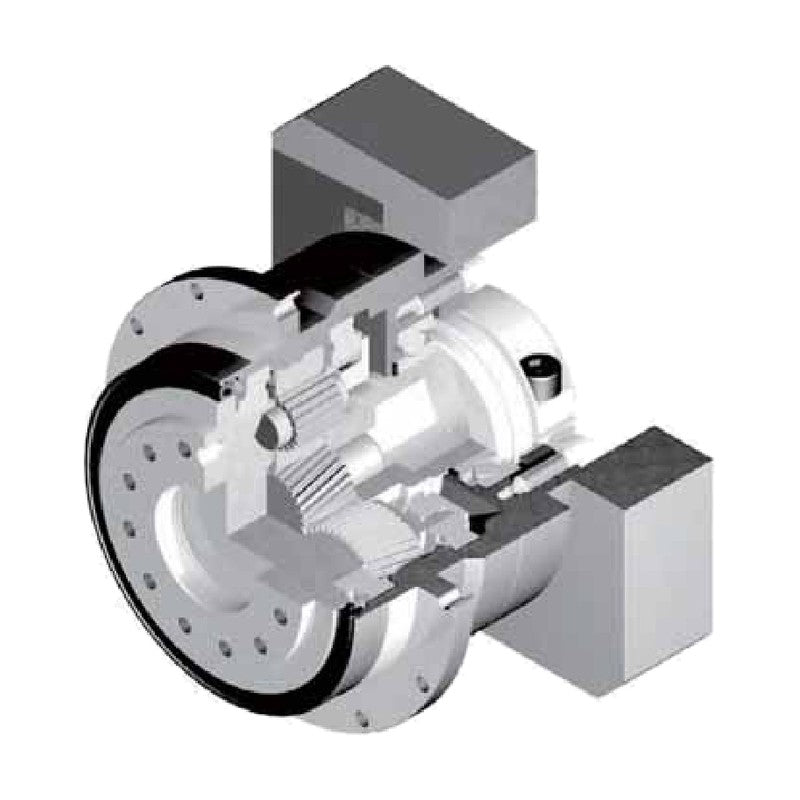

SPG SMB Precision Planetary Gearheads (Frame 042-220, 1/3-1/100)

SPG SMB series inline precision planetary gearhead for servo motors, frame 042-220, 1- and 2-stage ratios 1/3-1/100 with keyed or smooth output shaft.

Key features

Helical planetary gearing for low vibration and quiet operation
Precision class backlash ≤3 arcmin (1-stage) and ≤5 arcmin (2-stage)
Uncaged needle roller bearings raise torsional rigidity and torque capacity
Adapter-bushing input mounts to most servo motors; bushing fitted when motor shaft is smaller than input bore
High-viscosity anti-separation grease: no leakage, maintenance-free, any mounting position
Order code ends with a motor-specific mount code (input bore + adapter code, e.g. -19HB16); select from SPG's motor mount code list

Specifications

Backlash class	P (Precision class)
Rated output torque	13-2,000 Nm
Max. input speed	3,000-6,000 rpm
Max. radial load	570-10,500 N
Efficiency	≥97% (1-stage), ≥94% (2-stage)
Noise level	≤56 to ≤70 dB(A)
Accel. / emergency stop torque	1.8x / 3x rated output torque
Operating temperature	-10 to +90 °C (case surface)
Mounting position / protection	All directions / IP65
Mount code	Suffix -<bore><adapter>[motor shaft], e.g. -19HB16
Source	SPG SM Series Precision Planetary Gearhead catalog, p. 2-23

SMB042P003K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P003S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P004K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P004S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P005K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P005S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P006K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P006S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P007K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P007S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P008K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P008S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P009K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P009S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P010K		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SMB042P010S		Frame size: 042 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SMB042P015K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P015S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P016K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P016S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P020K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P020S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P025K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P025S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P028K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P028S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P030K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P030S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P035K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P035S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P040K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P040S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P045K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P045S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P050K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P050S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P060K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P060S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P070K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P070S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P080K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P080S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P090K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P090S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB042P100K		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SMB042P100S		Frame size: 042 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SMB060P003K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P003S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P004K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P004S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P005K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P005S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P006K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P006S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P007K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P007S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P008K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P008S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P009K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P009S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P010K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SMB060P010S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SMB060P015K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P015S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P016K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P016S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P020K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P020S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P025K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P025S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P028K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P028S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P030K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P030S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P035K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P035S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P040K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P040S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P045K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P045S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P050K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P050S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P060K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P060S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P070K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P070S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P080K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P080S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P090K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P090S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB060P100K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMB060P100S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMB090P003K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P003S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P004K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P004S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P005K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P005S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P006K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P006S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P007K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P007S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P008K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P008S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P009K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P009S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P010K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SMB090P010S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SMB090P015K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P015S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P016K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P016S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P020K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P020S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P025K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P025S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P028K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P028S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P030K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P030S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P035K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P035S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P040K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P040S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P045K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P045S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P050K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P050S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P060K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P060S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P070K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P070S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P080K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P080S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P090K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P090S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB090P100K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SMB090P100S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SMB115P003K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P003S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P004K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P004S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P005K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P005S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P006K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P006S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P007K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P007S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P008K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P008S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P009K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P009S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P010K		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SMB115P010S		Frame size: 115 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SMB115P015K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P015S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P016K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P016S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P020K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P020S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P025K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P025S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P028K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P028S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P030K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P030S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P035K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P035S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P040K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P040S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P045K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P045S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P050K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P050S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P060K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P060S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P070K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P070S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P080K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P080S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P090K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P090S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB115P100K		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SMB115P100S		Frame size: 115 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SMB140P003K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P003S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P004K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P004S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P005K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P005S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P006K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P006S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P007K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P007S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P008K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P008S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P009K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P009S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P010K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SMB140P010S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SMB140P015K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P015S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P016K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P016S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P020K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P020S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P025K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P025S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P028K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P028S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P030K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P030S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P035K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P035S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P040K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P040S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P045K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P045S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P050K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P050S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P060K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P060S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P070K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P070S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P080K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P080S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P090K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P090S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB140P100K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMB140P100S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMB180P003K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P003S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P004K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P004S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P005K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P005S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P006K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P006S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P007K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P007S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P008K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P008S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P009K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P009S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P010K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SMB180P010S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SMB180P015K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P015S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P016K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P016S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P020K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P020S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P025K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P025S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P028K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P028S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P030K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P030S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P035K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P035S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P040K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P040S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P045K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P045S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P050K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P050S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P060K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P060S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P070K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P070S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P080K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P080S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P090K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P090S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB180P100K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SMB180P100S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SMB220P003K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P003S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P004K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P004S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P005K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P005S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P006K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P006S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P007K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P007S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P008K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P008S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P009K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P009S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P010K		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SMB220P010S		Frame size: 220 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SMB220P015K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P015S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P016K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P016S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P020K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P020S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P025K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P025S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P028K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P028S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P030K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P030S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P035K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P035S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P040K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P040S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P045K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P045S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P050K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P050S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P060K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P060S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P070K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P070S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P080K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P080S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P090K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P090S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SMB220P100K		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SMB220P100S		Frame size: 220 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg

Planetary GearboxesSPG

322 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SMB Precision Planetary Gearheads (Frame 042-220, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (322)

SMB042P003K, SMB042P003S, SMB042P004K, SMB042P004S, SMB042P005K, SMB042P005S, SMB042P006K, SMB042P006S, SMB042P007K, SMB042P007S + 312 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SMB042P003K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P003S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P004K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P004S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P005K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P005S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P006K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P006S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P007K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P007S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P008K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P008S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P009K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P009S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P010K	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SMB042P010S	Frame size: 042 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SMB042P015K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P015S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P016K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P016S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P020K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P020S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P025K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P025S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P028K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P028S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P030K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P030S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P035K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P035S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P040K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P040S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P045K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P045S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P050K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P050S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P060K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P060S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P070K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P070S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P080K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P080S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P090K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P090S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB042P100K	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SMB042P100S	Frame size: 042 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SMB060P003K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P003S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P004K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P004S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P005K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P005S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P006K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P006S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P007K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P007S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P008K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P008S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P009K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P009S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P010K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SMB060P010S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SMB060P015K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P015S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P016K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P016S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P020K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P020S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P025K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P025S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P028K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P028S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P030K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P030S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P035K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P035S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P040K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P040S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P045K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P045S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P050K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P050S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P060K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P060S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P070K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P070S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P080K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P080S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P090K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P090S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB060P100K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMB060P100S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMB090P003K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P003S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P004K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P004S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P005K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P005S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P006K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P006S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P007K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P007S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P008K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P008S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P009K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P009S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P010K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SMB090P010S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SMB090P015K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P015S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P016K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P016S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P020K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P020S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P025K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P025S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P028K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P028S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P030K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P030S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P035K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P035S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P040K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P040S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P045K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P045S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P050K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P050S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P060K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P060S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P070K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P070S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P080K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P080S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P090K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P090S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB090P100K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SMB090P100S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SMB115P003K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P003S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P004K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P004S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P005K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P005S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P006K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P006S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P007K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P007S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P008K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P008S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P009K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P009S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P010K	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SMB115P010S	Frame size: 115 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SMB115P015K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P015S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P016K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P016S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P020K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P020S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P025K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P025S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P028K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P028S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P030K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P030S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P035K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P035S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P040K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P040S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P045K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P045S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P050K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P050S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P060K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P060S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P070K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P070S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P080K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P080S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P090K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P090S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB115P100K	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SMB115P100S	Frame size: 115 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SMB140P003K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P003S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P004K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P004S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P005K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P005S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P006K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P006S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P007K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P007S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P008K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P008S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P009K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P009S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P010K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SMB140P010S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SMB140P015K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P015S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P016K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P016S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P020K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P020S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P025K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P025S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P028K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P028S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P030K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P030S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P035K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P035S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P040K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P040S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P045K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P045S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P050K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P050S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P060K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P060S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P070K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P070S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P080K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P080S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P090K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P090S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB140P100K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMB140P100S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMB180P003K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P003S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P004K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P004S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P005K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P005S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P006K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P006S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P007K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P007S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P008K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P008S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P009K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P009S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P010K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SMB180P010S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SMB180P015K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P015S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P016K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P016S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P020K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P020S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P025K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P025S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P028K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P028S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P030K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P030S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P035K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P035S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P040K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P040S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P045K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P045S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P050K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P050S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P060K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P060S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P070K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P070S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P080K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P080S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P090K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P090S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB180P100K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SMB180P100S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SMB220P003K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P003S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P004K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P004S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P005K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P005S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P006K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P006S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P007K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P007S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P008K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P008S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P009K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P009S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P010K	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SMB220P010S	Frame size: 220 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SMB220P015K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P015S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P016K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P016S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P020K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P020S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P025K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P025S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P028K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P028S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P030K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P030S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P035K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P035S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P040K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P040S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P045K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P045S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P050K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P050S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P060K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P060S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P070K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P070S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P080K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P080S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P090K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P090S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SMB220P100K	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SMB220P100S	Frame size: 220 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG SMB Precision Planetary Gearheads (Frame 042-220, 1/3-1/100)
