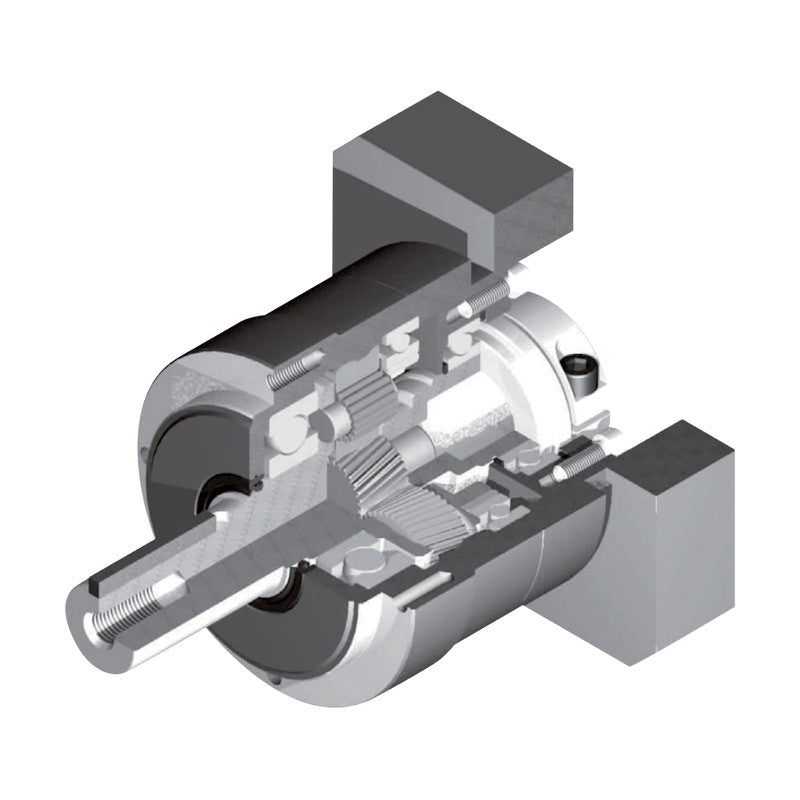

SPG SML Standard Planetary Gearheads (Frame 050-235, 1/3-1/100)

SPG SML series standard-class inline planetary gearhead for servo motors, frame 050-235, 1- and 2-stage ratios 1/3-1/100 with keyed or smooth output shaft.

Key features

Helical planetary gearing for low vibration and quiet operation
Standard class backlash ≤5 arcmin (1-stage) and ≤7 arcmin (2-stage)
Uncaged needle roller bearings for high rigidity and torque
Adapter-bushing input mounts to most servo motors
High-viscosity anti-separation grease: no leakage, maintenance-free, any mounting position
Order code ends with a motor-specific mount code (input bore + adapter code, e.g. -19HB16); select from SPG's motor mount code list

Specifications

Backlash class	S (Standard class)
Rated output torque	13-2,000 Nm
Max. input speed	3,000-6,000 rpm
Max. radial load	570-10,500 N
Efficiency	≥97% (1-stage), ≥94% (2-stage)
Noise level	≤56 to ≤70 dB(A)
Accel. / emergency stop torque	1.8x / 3x rated output torque
Operating temperature	-10 to +90 °C (case surface)
Mounting position / protection	All directions / IP65
Mount code	Suffix -<bore><adapter>[motor shaft], e.g. -19HB16
Source	SPG SM Series Precision Planetary Gearhead catalog, p. 66-87

SML050S003K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S003S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S004K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S004S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S005K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S005S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S006K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S006S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S007K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S007S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S008K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S008S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S009K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S009S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S010K		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
SML050S010S		Frame size: 050 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
SML050S015K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S015S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S016K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S016S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S020K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S020S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S025K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S025S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S028K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S028S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S030K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S030S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S035K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S035S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S040K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S040S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S045K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S045S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S050K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S050S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S060K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S060S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S070K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S070S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S080K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S080S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S090K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S090S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML050S100K		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
SML050S100S		Frame size: 050 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
SML070S003K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S003S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S004K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S004S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S005K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S005S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S006K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S006S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S007K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S007S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S008K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S008S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S009K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S009S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S010K		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
SML070S010S		Frame size: 070 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
SML070S015K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S015S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S016K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S016S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S020K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S020S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S025K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S025S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S028K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S028S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S030K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S030S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S035K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S035S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S040K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S040S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S045K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S045S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S050K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S050S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S060K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S060S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S070K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S070S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S080K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S080S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S090K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S090S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML070S100K		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SML070S100S		Frame size: 070 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SML090S003K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S003S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S004K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S004S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S005K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S005S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S006K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S006S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S007K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S007S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S008K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S008S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S009K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S009S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S010K		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
SML090S010S		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
SML090S015K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S015S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S016K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S016S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S020K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S020S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S025K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S025S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S028K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S028S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S030K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S030S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S035K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S035S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S040K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S040S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S045K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S045S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S050K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S050S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S060K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S060S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S070K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S070S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S080K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S080S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S090K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S090S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML090S100K		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
SML090S100S		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
SML120S003K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S003S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S004K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S004S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S005K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S005S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S006K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S006S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S007K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S007S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S008K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S008S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S009K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S009S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S010K		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
SML120S010S		Frame size: 120 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
SML120S015K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S015S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S016K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S016S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S020K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S020S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S025K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S025S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S028K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S028S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S030K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S030S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S035K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S035S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S040K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S040S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S045K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S045S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S050K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S050S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S060K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S060S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S070K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S070S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S080K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S080S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S090K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S090S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML120S100K		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
SML120S100S		Frame size: 120 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
SML155S003K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S003S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S004K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S004S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S005K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S005S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S006K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S006S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S007K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S007S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S008K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S008S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S009K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S009S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S010K		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
SML155S010S		Frame size: 155 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
SML155S015K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S015S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S016K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S016S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S020K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S020S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S025K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S025S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S028K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S028S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S030K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S030S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S035K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S035S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S040K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S040S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S045K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S045S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S050K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S050S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S060K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S060S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S070K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S070S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S080K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S080S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S090K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S090S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML155S100K		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SML155S100S		Frame size: 155 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SML205S003K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S003S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S004K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S004S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S005K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S005S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S006K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S006S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S007K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S007S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S008K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S008S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S009K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S009S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S010K		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
SML205S010S		Frame size: 205 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
SML205S015K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S015S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S016K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S016S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S020K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S020S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S025K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S025S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S028K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S028S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S030K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S030S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S035K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S035S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S040K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S040S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S045K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S045S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S050K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S050S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S060K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S060S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S070K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S070S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S080K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S080S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S090K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S090S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML205S100K		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
SML205S100S		Frame size: 205 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
SML235S003K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S003S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S004K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S004S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S005K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S005S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S006K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S006S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S007K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S007S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S008K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S008S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S009K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S009S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S010K		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
SML235S010S		Frame size: 235 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
SML235S015K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S015S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S016K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S016S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S020K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S020S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S025K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S025S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S028K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S028S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S030K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S030S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S035K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S035S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S040K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S040S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S045K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S045S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S050K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S050S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S060K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S060S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S070K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S070S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S080K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S080S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S090K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S090S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
SML235S100K		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
SML235S100S		Frame size: 235 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg

Planetary GearboxesSPG

322 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SML Standard Planetary Gearheads (Frame 050-235, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (322)

SML050S003K, SML050S003S, SML050S004K, SML050S004S, SML050S005K, SML050S005S, SML050S006K, SML050S006S, SML050S007K, SML050S007S + 312 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SML050S003K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S003S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S004K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S004S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S005K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S005S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S006K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S006S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S007K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S007S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S008K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S008S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S009K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S009S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S010K	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 0.6 kg
	SML050S010S	Frame size: 050 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 0.6 kg
	SML050S015K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S015S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S016K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S016S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S020K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S020S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S025K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S025S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S028K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S028S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S030K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S030S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S035K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S035S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S040K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S040S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S045K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S045S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S050K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S050S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S060K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S060S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S070K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S070S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S080K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S080S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S090K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S090S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML050S100K	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 0.7 kg
	SML050S100S	Frame size: 050 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 0.7 kg
	SML070S003K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S003S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S004K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S004S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S005K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S005S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S006K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S006S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S007K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S007S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S008K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S008S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S009K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S009S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S010K	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.4 kg
	SML070S010S	Frame size: 070 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.4 kg
	SML070S015K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S015S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S016K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S016S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S020K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S020S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S025K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S025S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S028K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S028S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S030K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S030S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S035K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S035S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S040K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S040S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S045K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S045S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S050K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S050S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S060K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S060S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S070K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S070S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S080K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S080S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S090K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S090S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML070S100K	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SML070S100S	Frame size: 070 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SML090S003K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S003S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S004K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S004S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S005K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S005S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S006K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S006S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S007K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S007S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S008K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S008S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S009K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S009S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S010K	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.7 kg
	SML090S010S	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.7 kg
	SML090S015K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S015S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S016K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S016S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S020K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S020S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S025K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S025S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S028K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S028S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S030K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S030S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S035K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S035S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S040K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S040S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S045K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S045S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S050K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S050S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S060K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S060S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S070K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S070S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S080K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S080S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S090K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S090S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML090S100K	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 4.2 kg
	SML090S100S	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 4.2 kg
	SML120S003K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S003S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S004K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S004S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S005K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S005S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S006K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S006S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S007K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S007S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S008K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S008S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S009K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S009S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S010K	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8 kg
	SML120S010S	Frame size: 120 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8 kg
	SML120S015K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S015S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S016K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S016S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S020K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S020S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S025K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S025S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S028K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S028S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S030K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S030S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S035K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S035S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S040K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S040S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S045K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S045S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S050K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S050S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S060K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S060S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S070K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S070S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S080K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S080S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S090K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S090S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML120S100K	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 8.9 kg
	SML120S100S	Frame size: 120 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 8.9 kg
	SML155S003K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S003S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S004K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S004S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S005K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S005S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S006K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S006S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S007K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S007S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S008K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S008S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S009K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S009S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S010K	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 16 kg
	SML155S010S	Frame size: 155 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 16 kg
	SML155S015K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S015S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S016K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S016S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S020K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S020S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S025K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S025S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S028K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S028S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S030K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S030S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S035K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S035S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S040K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S040S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S045K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S045S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S050K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S050S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S060K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S060S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S070K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S070S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S080K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S080S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S090K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S090S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML155S100K	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SML155S100S	Frame size: 155 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SML205S003K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S003S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S004K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S004S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S005K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S005S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S006K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S006S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S007K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S007S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S008K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S008S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S009K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S009S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S010K	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 36 kg
	SML205S010S	Frame size: 205 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 36 kg
	SML205S015K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S015S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S016K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S016S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S020K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S020S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S025K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S025S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S028K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S028S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S030K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S030S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S035K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S035S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S040K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S040S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S045K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S045S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S050K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S050S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S060K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S060S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S070K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S070S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S080K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S080S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S090K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S090S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML205S100K	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 37 kg
	SML205S100S	Frame size: 205 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 37 kg
	SML235S003K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S003S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S004K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S004S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S005K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S005S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S006K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S006S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S007K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S007S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S008K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S008S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S009K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S009S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S010K	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 53 kg
	SML235S010S	Frame size: 235 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 53 kg
	SML235S015K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S015S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S016K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S016S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S020K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S020S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S025K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S025S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S028K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S028S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S030K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S030S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S035K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S035S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S040K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S040S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S045K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S045S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S050K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S050S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S060K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S060S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S070K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S070S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S080K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S080S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S090K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S090S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg
	SML235S100K	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Keyed shaft \| Weight: 54 kg
	SML235S100S	Frame size: 235 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤7 arcmin \| Output shaft: Smooth shaft \| Weight: 54 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG SML Standard Planetary Gearheads (Frame 050-235, 1/3-1/100)
