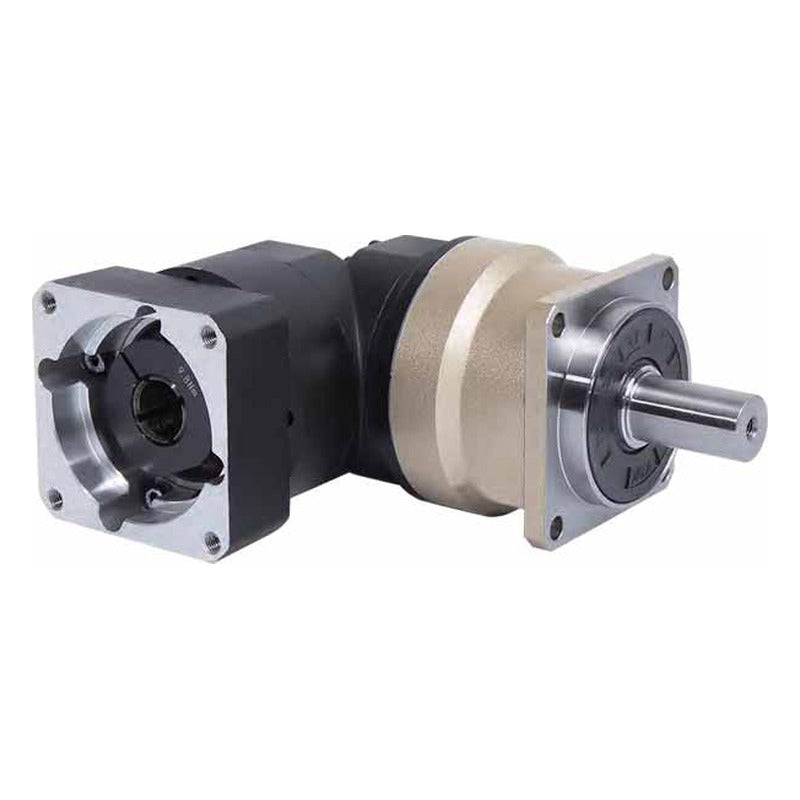

SPG SMPEB Right-Angle Planetary Gearheads (Shaft Output, 60-140)

SPG SMPEB Right-Angle Planetary Gearheads (Shaft Output, 60-140)

SPG SMPEB right-angle precision planetary gearheads combining a spiral bevel stage with a square-flange planetary output, frames 60 to 140.

Key features

  • Spiral bevel right-angle design places the motor at 90 degrees to save space
  • Keyed (K) or smooth (S) output shaft with square mounting flange
  • Uncaged needle roller bearings for high rigidity and torque
  • Adapter-bushing input fits servo motors worldwide
  • High-viscosity anti-separation grease, no leakage, maintenance-free for life
  • 2-stage 1/3-1/10 and 3-stage 1/15-1/100 ratios

Specifications

Backlash class S (standard)
Rated output torque 30-580 Nm by frame and ratio
Efficiency >= 95% (2-stage), >= 90% (3-stage)
Max. acceleration torque 1.8 x rated output torque
Lubrication High-temp. extreme-pressure grease
Mounting position All directions
Protection IP65
Operating temperature -10 to +90 C
Service life 20,000 h
Motor mount Adapter-bushing; mount code on order
Source SPG SM Series Precision Planetary Gearhead catalog, p. 163-173
SMPEB060S003K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S003S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S004K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S004S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S005K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S005S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S006K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S006S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S007K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S007S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S008K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S008S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S009K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S009S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S010K Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S010S Frame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S015K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S015S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S016K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S016S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S020K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S020S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S025K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S025S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S030K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S030S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S035K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S035S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S040K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S040S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S050K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S050S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S070K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S070S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S100K Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S100S Frame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S003K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S003S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S004K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S004S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S005K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S005S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S006K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S006S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S007K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S007S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S008K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S008S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S009K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S009S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S010K Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S010S Frame: 90 mm (090) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S015K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S015S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S016K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S016S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S020K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S020S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S025K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S025S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S030K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S030S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S035K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S035S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S040K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S040S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S050K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S050S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S070K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S070S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S100K Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S100S Frame: 90 mm (090) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S003K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S003S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S004K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S004S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S005K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S005S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S006K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S006S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S007K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S007S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S008K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S008S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S009K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S009S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S010K Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S010S Frame: 115 mm (115) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S015K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S015S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S016K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S016S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S020K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S020S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S025K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S025S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S030K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S030S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S035K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S035S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S040K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S040S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S050K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S050S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S070K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S070S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S100K Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S100S Frame: 115 mm (115) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S003K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S003S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S004K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S004S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S005K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S005S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S006K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S006S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S007K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S007S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S008K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S008S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S009K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S009S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S010K Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S010S Frame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S015K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S015S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S016K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S016S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S020K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S020S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S025K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S025S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S030K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S030S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S035K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S035S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S040K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S040S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S050K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S050S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S070K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S070S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S100K Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S100S Frame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
Planetary GearboxesSPG
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SMPEB Right-Angle Planetary Gearheads (Shaft Output, 60-140)

Brand SPG·Planetary Gearboxes

Available part numbers (144)

SMPEB060S003K, SMPEB060S003S, SMPEB060S004K, SMPEB060S004S, SMPEB060S005K, SMPEB060S005S, SMPEB060S006K, SMPEB060S006S, SMPEB060S007K, SMPEB060S007S + 134 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMPEB060S003KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S003SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S004KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S004SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S005KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S005SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S006KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S006SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S007KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S007SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S008KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S008SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S009KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S009SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S010KFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB060S010SFrame: 60 mm (060) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB060S015KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S015SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S016KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S016SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S020KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S020SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S025KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S025SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S030KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S030SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S035KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S035SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S040KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S040SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S050KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S050SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S070KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S070SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB060S100KFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB060S100SFrame: 60 mm (060) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S003KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S003SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S004KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S004SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S005KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S005SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S006KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S006SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S007KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S007SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S008KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S008SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S009KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S009SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S010KFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB090S010SFrame: 90 mm (090) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB090S015KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S015SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S016KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S016SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S020KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S020SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S025KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S025SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S030KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S030SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S035KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S035SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S040KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S040SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S050KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S050SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S070KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S070SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB090S100KFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB090S100SFrame: 90 mm (090) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S003KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S003SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S004KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S004SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S005KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S005SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S006KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S006SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S007KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S007SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S008KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S008SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S009KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S009SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S010KFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB115S010SFrame: 115 mm (115) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB115S015KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S015SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S016KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S016SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S020KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S020SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S025KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S025SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S030KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S030SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S035KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S035SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S040KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S040SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S050KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S050SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S070KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S070SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB115S100KFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB115S100SFrame: 115 mm (115) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S003KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S003SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/3 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S004KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S004SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/4 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S005KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S005SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/5 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S006KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S006SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/6 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S007KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S007SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/7 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S008KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S008SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/8 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S009KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S009SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/9 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S010KFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Keyed shaft (K)
SMPEB140S010SFrame: 140 mm (140) | Stage: 2-stage | Ratio: 1/10 | Backlash: 7 arcmin | Output: Smooth shaft (S)
SMPEB140S015KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S015SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/15 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S016KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S016SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/16 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S020KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S020SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/20 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S025KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S025SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/25 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S030KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S030SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/30 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S035KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S035SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/35 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S040KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S040SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/40 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S050KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S050SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/50 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S070KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S070SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/70 | Backlash: 10 arcmin | Output: Smooth shaft (S)
SMPEB140S100KFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Keyed shaft (K)
SMPEB140S100SFrame: 140 mm (140) | Stage: 3-stage | Ratio: 1/100 | Backlash: 10 arcmin | Output: Smooth shaft (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
