SPG Special Application DC Motors (15-225 W)

SPG special-type permanent-magnet DC motors built for medical, heavy-electric, automatic door, dual-gearhead and brake applications.

Key features

Medical drive with integrated gear bracket (S6D15-24G)
Heavy-electric drives with limit switches, 24-220 V DC, 150-225 W
Automatic door motor with worm (module 1.25, 3 starts right)

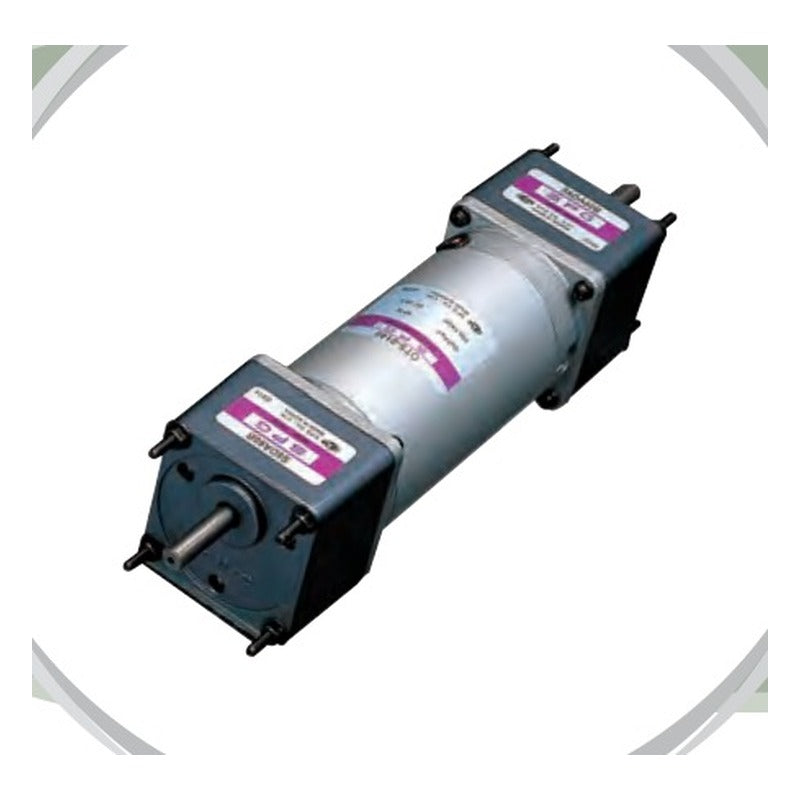

Dual gearhead motor driving two S6 gearheads
Electromagnetic non-excited 24 V brake assembly on an 80 mm motor

Specifications

Motor type	Permanent magnet brushed DC motor
Construction	Customer-specific special series
Special series no.	Suffix in brackets (OAxx/OBxx)
Frame sizes	60, 70 and 80 mm
Voltage range	24-220 V DC
Run duty	1000-2000 h
Source	SPG DC Geared Motor catalog, p. 35-39

S6D15-24G(OA23)		Application: Medical \| Output: 15 W \| Voltage: 24 V DC \| Rated load: 915 rpm, 1.6 kg-cm \| Catalog page: p. 35
S7D200-110GH(OB51)		Application: Heavy-electric \| Output: 220 W \| Voltage: 110 V DC \| Rated load: 3250 rpm, 6.0 kg-cm \| Catalog page: p. 36
S7D225-125GH(OB52)		Application: Heavy-electric \| Output: 225 W \| Voltage: 125 V DC \| Rated load: 3650 rpm, 6.0 kg-cm \| Catalog page: p. 36
S7D200-220GH(OB53)		Application: Heavy-electric \| Output: 200 W \| Voltage: 220 V DC \| Rated load: 3250 rpm, 6.0 kg-cm \| Catalog page: p. 36
S7D150-24GH(OB54)		Application: Heavy-electric \| Output: 150 W \| Voltage: 24 V DC \| Rated load: 2450 rpm, 6.0 kg-cm \| Catalog page: p. 36
S7D175-48GH(OB55)		Application: Heavy-electric \| Output: 175 W \| Voltage: 48 V DC \| Rated load: 2850 rpm, 6.0 kg-cm \| Catalog page: p. 36
S7D90-90S(OA14)		Application: Automatic door (worm) \| Output: 90 W \| Voltage: 90 V DC \| Rated load: 2000 rpm, 4.4 kg-cm \| Catalog page: p. 37
S6D35-24A(OA80)		Application: Dual gearhead \| Output: 35 W \| Voltage: 24 V DC \| Rated load: 2850 rpm, 1.2 kg-cm \| Catalog page: p. 38
S8D40-24A(OB85)		Application: Electric brake assembly \| Output: 40 W \| Voltage: 24 V DC \| Rated load: 3000 rpm, 1.3 kg-cm \| Catalog page: p. 39

DC Geared MotorsSPG

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG Special Application DC Motors (15-225 W)

Brand SPG·DC Geared Motors

Available part numbers (9)

S6D15-24G(OA23), S7D200-110GH(OB51), S7D225-125GH(OB52), S7D200-220GH(OB53), S7D150-24GH(OB54), S7D175-48GH(OB55), S7D90-90S(OA14), S6D35-24A(OA80), S8D40-24A(OB85)

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
