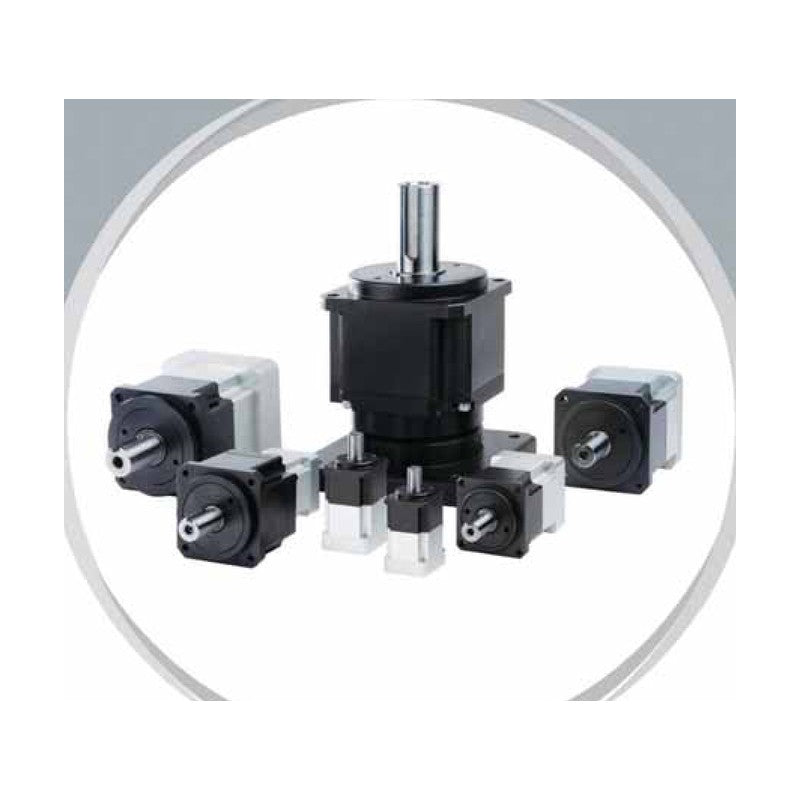

SPG SPIH In-Line Helical Planetary Gearheads (42-220, 1/3-1/100)

SPG SPIH In-Line Helical Planetary Gearheads (42-220, 1/3-1/100)

SPG SPIH helical-gear in-line precision planetary gearheads for servo motors, in frame sizes 42-220 mm with 1- and 2-stage ratios.

Key features

  • Helical gear planetary design for servo motors, in-line configuration
  • Frame sizes 42 to 220 mm square, 1- and 2-stage
  • Reduction ratios 1/3-1/100 as printed in the specification table
  • Down-size (D) input frame for smaller servo motors on 2-stage ratios
  • Input adapter flange for Mitsubishi, Yaskawa, Tamagawa, HIGEN, LS (A), Panasonic (B), Rockwell (C)
  • IP65 sealed, high-temperature extreme-pressure grease, any mounting position

Specifications

Gear type Helical planetary, in-line
Backlash (1-/2-stage) Precision (P): 3/5, Standard (S): 5/7
Nominal input speed 3,000 rpm
Max. input speed 6,000 rpm (042/060), 5,000 rpm (090+)
Efficiency >= 97% (1-stage), >= 94% (2-stage)
Service life 20,000 h
Protection IP65
Operating temperature -10 to +90 C
Lubrication High-temp. extreme-pressure grease
Motor mount Adapter flange A/B/C on order
Source SPG Planetary Gearhead catalog, p. 6-9
SPIH042P003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P006S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P006K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S006S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S006K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P008S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P008K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S008S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S008K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P060S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P060K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S060S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S060K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P080S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P080K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S080S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S080K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P015S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P015K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S015S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S015K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P060S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P060K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S060S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S060K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P080S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P080K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S080S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S080K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P015S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P015K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S015S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S015K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P060S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P060K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S060S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S060K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P080S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P080K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S080S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S080K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P006S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P006K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S006S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S006K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P008S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P008K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S008S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S008K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P015S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P015K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S015S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S015K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P060S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P060K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S060S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S060K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P080S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P080K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S080S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S080K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142P003S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P003K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S003S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S003K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P004S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P004K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S004S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S004K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P005S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P005K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S005S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S005K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P006S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P006K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S006S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S006K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P007S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P007K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S007S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S007K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P008S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P008K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S008S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S008K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P009S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P009K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S009S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S009K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P010S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P010K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S010S Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S010K Frame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P003S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P003K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S003S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S003K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P004S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P004K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S004S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S004K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P005S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P005K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S005S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S005K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P006S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P006K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S006S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S006K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P007S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P007K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S007S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S007K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P008S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P008K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S008S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S008K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P009S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P009K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S009S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S009K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P010S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P010K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S010S Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S010K Frame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P003S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P003K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S003S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S003K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P004S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P004K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S004S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S004K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P005S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P005K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S005S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S005K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P006S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P006K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S006S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S006K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P007S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P007K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S007S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S007K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P008S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P008K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S008S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S008K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P009S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P009K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S009S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S009K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P010S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P010K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S010S Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S010K Frame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060DP015S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP015K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS015S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS015K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP020S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP020K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS020S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS020K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP060S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP060K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS060S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS060K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP080S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP080K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS080S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS080K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP015S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP015K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS015S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS015K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP020S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP020K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS020S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS020K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP060S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP060K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS060S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS060K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP080S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP080K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS080S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS080K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP015S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP015K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS015S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS015K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP020S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP020K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS020S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS020K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP060S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP060K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS060S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS060K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP080S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP080K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS080S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS080K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP015S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP015K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS015S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS015K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP020S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP020K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS020S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS020K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP025S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP025K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS025S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS025K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP030S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP030K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS030S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS030K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP035S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP035K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS035S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS035K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP040S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP040K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS040S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS040K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP045S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP045K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS045S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS045K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP050S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP050K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS050S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS050K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP060S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP060K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS060S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS060K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP070S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP070K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS070S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS070K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP080S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP080K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS080S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS080K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP090S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP090K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS090S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS090K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP100S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP100K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS100S Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS100K Frame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP015S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP015K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS015S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS015K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP020S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP020K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS020S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS020K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP025S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP025K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS025S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS025K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP030S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP030K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS030S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS030K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP035S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP035K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS035S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS035K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP040S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP040K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS040S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS040K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP045S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP045K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS045S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS045K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP050S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP050K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS050S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS050K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP060S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP060K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS060S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS060K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP070S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP070K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS070S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS070K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP080S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP080K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS080S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS080K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP090S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP090K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS090S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS090K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP100S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP100K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS100S Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS100K Frame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP015S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP015K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS015S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS015K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP020S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP020K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS020S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS020K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP025S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP025K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS025S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS025K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP030S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP030K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS030S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS030K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP035S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP035K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS035S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS035K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP040S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP040K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS040S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS040K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP045S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP045K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS045S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS045K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP050S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP050K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS050S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS050K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP060S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP060K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS060S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS060K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP070S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP070K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS070S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS070K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP080S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP080K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS080S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS080K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP090S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP090K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS090S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS090K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP100S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP100K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS100S Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS100K Frame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
Planetary GearboxesSPG
744 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SPIH In-Line Helical Planetary Gearheads (42-220, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (744)

SPIH042P003S, SPIH042P003K, SPIH042S003S, SPIH042S003K, SPIH042P004S, SPIH042P004K, SPIH042S004S, SPIH042S004K, SPIH042P005S, SPIH042P005K + 734 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPIH042P003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P006SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P006KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S006SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S006KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P008SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P008KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S008SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S008KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH042P010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH042S010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH042S010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH042P015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P060SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P060KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S060SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S060KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P080SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P080KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S080SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S080KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH042P100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH042P100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH042S100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH042S100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH060P010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH060S010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH060S010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060P015SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P015KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S015SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S015KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P060SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P060KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S060SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S060KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P080SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P080KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S080SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S080KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060P100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060P100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060S100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060S100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH090P010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH090S010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH090S010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH090P015SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P015KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S015SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S015KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P060SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P060KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S060SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S060KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P080SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P080KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S080SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S080KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090P100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090P100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090S100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090S100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P006SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P006KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S006SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S006KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P008SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P008KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S008SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S008KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH115P010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH115S010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH115S010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH115P015SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P015KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S015SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S015KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P060SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P060KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S060SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S060KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P080SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P080KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S080SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S080KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115P100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115P100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115S100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115S100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142P003SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P003KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S003SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S003KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P004SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P004KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S004SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S004KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P005SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P005KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S005SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S005KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P006SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P006KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S006SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S006KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P007SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P007KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S007SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S007KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P008SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P008KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S008SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S008KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P009SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P009KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S009SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S009KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH142P010SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH142P010KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH142S010SFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH142S010KFrame: 142 mm (142) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P003SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P003KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S003SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S003KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P004SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P004KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S004SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S004KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P005SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P005KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S005SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S005KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P006SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P006KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S006SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S006KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P007SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P007KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S007SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S007KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P008SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P008KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S008SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S008KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P009SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P009KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S009SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S009KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH180P010SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH180P010KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH180S010SFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH180S010KFrame: 180 mm (180) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P003SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P003KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S003SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S003KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P004SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P004KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S004SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S004KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P005SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P005KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S005SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S005KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P006SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P006KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S006SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S006KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P007SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P007KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S007SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S007KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P008SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P008KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S008SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S008KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P009SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P009KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S009SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S009KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH220P010SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Smooth (S)
SPIH220P010KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Precision (P), 3 arcmin | Output shaft: Keyed (K)
SPIH220S010SFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Smooth (S)
SPIH220S010KFrame: 220 mm (220) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 5 arcmin | Output shaft: Keyed (K)
SPIH060DP015SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP015KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS015SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS015KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP020SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP020KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS020SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS020KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP060SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP060KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS060SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS060KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP080SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP080KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS080SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS080KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH060DP100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH060DP100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH060DS100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH060DS100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP015SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP015KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS015SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS015KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP020SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP020KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS020SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS020KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP060SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP060KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS060SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS060KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP080SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP080KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS080SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS080KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH090DP100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH090DP100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH090DS100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH090DS100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP015SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP015KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS015SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS015KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP020SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP020KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS020SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS020KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP060SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP060KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS060SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS060KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP080SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP080KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS080SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS080KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH115DP100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH115DP100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH115DS100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH115DS100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP015SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP015KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS015SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS015KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP020SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP020KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS020SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS020KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP025SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP025KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS025SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS025KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP030SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP030KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS030SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS030KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP035SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP035KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS035SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS035KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP040SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP040KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS040SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS040KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP045SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP045KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS045SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS045KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP050SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP050KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS050SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS050KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP060SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP060KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS060SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS060KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP070SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP070KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS070SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS070KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP080SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP080KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS080SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS080KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP090SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP090KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS090SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS090KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH142DP100SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH142DP100KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH142DS100SFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH142DS100KFrame: 142 mm (142) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP015SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP015KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS015SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS015KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP020SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP020KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS020SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS020KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP025SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP025KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS025SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS025KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP030SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP030KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS030SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS030KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP035SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP035KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS035SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS035KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP040SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP040KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS040SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS040KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP045SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP045KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS045SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS045KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP050SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP050KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS050SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS050KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP060SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP060KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS060SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS060KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP070SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP070KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS070SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS070KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP080SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP080KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS080SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS080KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP090SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP090KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS090SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS090KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH180DP100SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH180DP100KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH180DS100SFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH180DS100KFrame: 180 mm (180) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP015SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP015KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS015SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS015KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP020SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP020KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS020SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS020KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP025SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP025KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS025SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS025KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP030SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP030KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS030SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS030KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP035SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP035KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS035SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS035KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP040SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP040KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS040SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS040KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP045SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP045KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS045SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS045KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP050SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP050KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS050SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS050KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP060SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP060KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS060SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS060KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/60 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP070SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP070KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS070SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS070KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP080SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP080KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS080SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS080KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/80 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP090SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP090KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS090SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS090KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)
SPIH220DP100SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Smooth (S)
SPIH220DP100KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Precision (P), 5 arcmin | Output shaft: Keyed (K)
SPIH220DS100SFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Smooth (S)
SPIH220DS100KFrame: 220 mm (220) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 7 arcmin | Output shaft: Keyed (K)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
