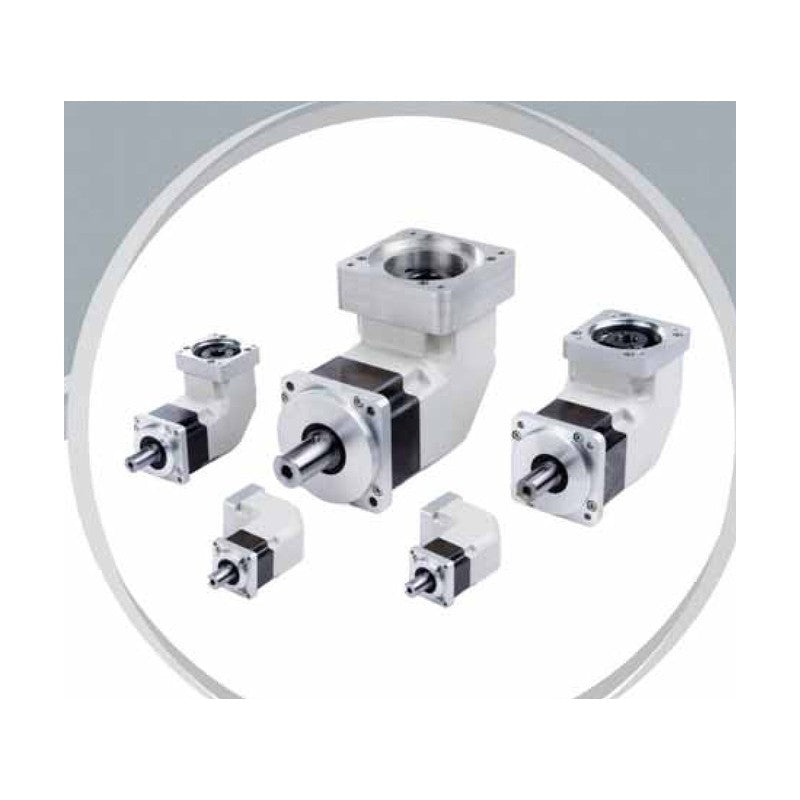

SPG SPL Right-Angle Spur Planetary Gearheads (42-115, 1/3-1/100)

SPG SPL Right-Angle Spur Planetary Gearheads (42-115, 1/3-1/100)

SPG SPL spur-gear right angle precision planetary gearheads for servo motors, in frame sizes 42-115 mm with 1- and 2-stage ratios.

Key features

  • Spur gear planetary design for servo motors, right angle configuration
  • Frame sizes 42 to 115 mm square, 1- and 2-stage
  • Reduction ratios 1/3-1/100 as printed in the specification table
  • Down-size (D) input frame for smaller servo motors on 2-stage ratios
  • Input adapter flange for Mitsubishi, Yaskawa, Tamagawa, HIGEN, LS (A), Panasonic (B), Rockwell (C)
  • IP65 sealed, high-temperature extreme-pressure grease, any mounting position

Specifications

Gear type Spur planetary, right angle
Backlash (1-/2-stage) Standard (S): 13/16 arcmin
Nominal input speed 3,000 rpm
Max. input speed 6,000 rpm (042/060), 5,000 rpm (090+)
Efficiency >= 95% (1-stage), >= 92% (2-stage)
Service life 20,000 h
Protection IP65
Operating temperature -10 to +90 C
Lubrication High-temp. extreme-pressure grease
Motor mount Adapter flange A/B/C on order
Source SPG Planetary Gearhead catalog, p. 26-29
SPL042S003S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S003K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S004S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S004K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S005S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S005K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S007S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S007K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S009S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S009K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S010S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S010K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S015S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S015K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S020S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S020K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S025S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S025K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S030S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S030K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S035S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S035K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S040S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S040K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S045S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S045K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S050S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S050K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S063S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S063K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S070S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S070K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S081S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S081K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S090S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S090K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S100S Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S100K Frame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S003S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S003K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S004S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S004K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S005S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S005K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S006S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S006K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S007S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S007K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S008S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S008K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S009S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S009K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S010S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S010K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S014S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S014K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S020S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S020K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S025S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S025K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S030S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S030K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S035S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S035K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S040S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S040K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S045S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S045K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S050S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S050K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S063S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S063K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S070S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S070K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S081S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S081K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S090S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S090K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S100S Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S100K Frame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S003S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S003K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S004S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S004K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S005S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S005K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S006S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S006K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S007S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S007K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S008S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S008K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S009S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S009K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S010S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S010K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S014S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S014K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S020S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S020K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S025S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S025K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S030S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S030K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S035S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S035K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S040S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S040K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S045S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S045K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S050S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S050K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S063S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S063K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S070S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S070K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S081S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S081K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S090S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S090K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S100S Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S100K Frame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S003S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S003K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S004S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S004K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S005S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S005K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S007S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S007K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S009S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S009K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S010S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S010K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S014S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S014K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S020S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S020K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S025S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S025K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S030S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S030K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S035S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S035K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S040S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S040K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S045S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S045K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S050S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S050K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S063S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S063K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S070S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S070K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S081S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S081K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S090S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S090K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S100S Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S100K Frame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS025S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS025K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS030S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS030K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS035S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS035K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS040S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS040K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS045S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS045K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS050S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS050K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS063S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS063K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS070S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS070K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS081S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS081K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS090S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS090K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS100S Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS100K Frame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS025S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS025K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS030S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS030K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS035S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS035K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS040S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS040K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS045S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS045K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS050S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS050K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS063S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS063K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS070S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS070K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS081S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS081K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS090S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS090K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS100S Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS100K Frame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS025S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS025K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS030S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS030K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS035S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS035K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS040S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS040K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS045S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS045K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS050S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS050K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS063S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS063K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS070S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS070K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS081S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS081K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS090S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS090K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS100S Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS100K Frame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
Planetary GearboxesSPG
226 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SPL Right-Angle Spur Planetary Gearheads (42-115, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (226)

SPL042S003S, SPL042S003K, SPL042S004S, SPL042S004K, SPL042S005S, SPL042S005K, SPL042S007S, SPL042S007K, SPL042S009S, SPL042S009K + 216 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SPL042S003SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S003KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S004SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S004KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S005SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S005KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S007SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S007KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S009SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S009KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S010SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL042S010KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL042S015SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S015KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/15 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S020SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S020KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/20 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S025SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S025KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S030SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S030KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S035SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S035KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S040SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S040KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S045SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S045KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S050SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S050KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S063SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S063KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S070SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S070KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S081SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S081KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S090SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S090KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL042S100SFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL042S100KFrame: 42 mm (042) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S003SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S003KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S004SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S004KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S005SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S005KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S006SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S006KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S007SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S007KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S008SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S008KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S009SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S009KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S010SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S010KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S014SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S014KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S020SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL060S020KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL060S025SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S025KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S030SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S030KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S035SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S035KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S040SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S040KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S045SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S045KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S050SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S050KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S063SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S063KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S070SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S070KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S081SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S081KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S090SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S090KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060S100SFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060S100KFrame: 60 mm (060) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S003SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S003KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S004SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S004KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S005SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S005KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S006SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S006KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/6 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S007SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S007KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S008SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S008KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/8 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S009SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S009KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S010SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S010KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S014SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S014KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S020SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL090S020KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL090S025SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S025KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S030SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S030KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S035SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S035KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S040SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S040KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S045SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S045KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S050SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S050KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S063SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S063KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S070SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S070KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S081SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S081KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S090SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S090KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090S100SFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090S100KFrame: 90 mm (090) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S003SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S003KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/3 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S004SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S004KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/4 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S005SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S005KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/5 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S007SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S007KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/7 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S009SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S009KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/9 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S010SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S010KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/10 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S014SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S014KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/14 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S020SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Smooth (S)
SPL115S020KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/20 (1-stage) | Backlash: Standard (S), 13 arcmin | Output shaft: Keyed (K)
SPL115S025SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S025KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S030SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S030KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S035SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S035KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S040SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S040KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S045SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S045KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S050SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S050KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S063SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S063KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S070SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S070KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S081SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S081KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S090SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S090KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115S100SFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115S100KFrame: 115 mm (115) | Input frame: Standard | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS025SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS025KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS030SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS030KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS035SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS035KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS040SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS040KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS045SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS045KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS050SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS050KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS063SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS063KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS070SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS070KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS081SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS081KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS090SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS090KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL060DS100SFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL060DS100KFrame: 60 mm (060) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS025SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS025KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS030SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS030KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS035SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS035KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS040SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS040KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS045SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS045KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS050SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS050KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS063SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS063KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS070SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS070KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS081SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS081KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS090SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS090KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL090DS100SFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL090DS100KFrame: 90 mm (090) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS025SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS025KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/25 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS030SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS030KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/30 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS035SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS035KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/35 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS040SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS040KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/40 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS045SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS045KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/45 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS050SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS050KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/50 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS063SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS063KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/63 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS070SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS070KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/70 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS081SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS081KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/81 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS090SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS090KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/90 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)
SPL115DS100SFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Smooth (S)
SPL115DS100KFrame: 115 mm (115) | Input frame: Down size (D) | Ratio: 1/100 (2-stage) | Backlash: Standard (S), 16 arcmin | Output shaft: Keyed (K)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
