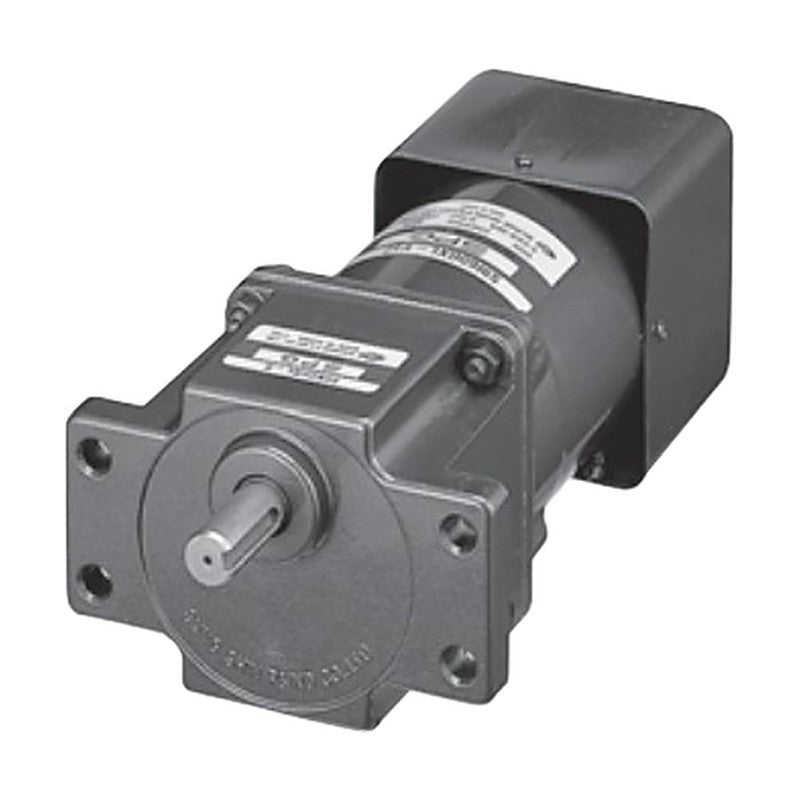

SPG Torque Motors (60-90 mm, 3-60 W, Lead Wire Type)

SPG Torque Motors (60-90 mm, 3-60 W, Lead Wire Type)

SPG S[6-9]T series single-phase 220 V 60 Hz AC torque motors from 3 W (60 mm) to 60 W (90 mm) with drooping torque-speed characteristic for winding and tension applications.

Key features

  • Drooping characteristic: maximum torque at start, torque falls as speed rises
  • Torque adjustable by applied voltage; suited to constant-tension winding and stall/lock use
  • Rated 5 min at 220 V and continuous at 140 V (1-ph 60 Hz, code B)
  • Shaft code G pinion for SPG gearheads, or round shafts S (straight), D (D-cut), K (keyed, 80/90 mm)
  • 90 mm: pinion H/L suffix to match H/L gearheads; -F box fan standard from 20 W
  • Coding options E (electromagnetic brake) and T (terminal box) available on request

Specifications

Voltage 1-ph 220 V 60 Hz (code B)
Poles 4
Duty 5 min at 220 V, continuous at 140 V
Rated speed 900 rpm
Capacitor 1.2 / 1.5 / 2.0 / 4.0 / 5.0 / 6.5 / 8.0 uF (3-60 W)
Matching gearheads S6DA, S7/S8 A, S9 B/C/D/H types; GX10B decimal
Connection Lead wire 300 mm, UL3266 AWG20
Source SPG Standard AC Geared Motor catalog, p. 305-328
S6T03GB Frame/output: 60 mm, 3 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S6T03SB Frame/output: 60 mm, 3 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S6T03DB Frame/output: 60 mm, 3 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S7T06GB Frame/output: 70 mm, 6 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S7T06SB Frame/output: 70 mm, 6 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S7T06DB Frame/output: 70 mm, 6 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S8T10GB Frame/output: 80 mm, 10 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10SB Frame/output: 80 mm, 10 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10DB Frame/output: 80 mm, 10 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10KB Frame/output: 80 mm, 10 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S9T20GBH-F Frame/output: 90 mm, 20 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20GBL-F Frame/output: 90 mm, 20 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20SB-F Frame/output: 90 mm, 20 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20DB-F Frame/output: 90 mm, 20 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20KB-F Frame/output: 90 mm, 20 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T30GBH-F Frame/output: 90 mm, 30 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30GBL-F Frame/output: 90 mm, 30 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30SB-F Frame/output: 90 mm, 30 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30DB-F Frame/output: 90 mm, 30 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30KB-F Frame/output: 90 mm, 30 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T40GBH-F Frame/output: 90 mm, 40 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40GBL-F Frame/output: 90 mm, 40 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40SB-F Frame/output: 90 mm, 40 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40DB-F Frame/output: 90 mm, 40 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40KB-F Frame/output: 90 mm, 40 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T60GB-F Frame/output: 90 mm, 60 W | Shaft: Pinion (gear type) | Pinion: H type (not marked in code) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60SB-F Frame/output: 90 mm, 60 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60DB-F Frame/output: 90 mm, 60 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60KB-F Frame/output: 90 mm, 60 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
Torque MotorsSPG
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG Torque Motors (60-90 mm, 3-60 W, Lead Wire Type)

Brand SPG·Torque Motors

Available part numbers (29)

S6T03GB, S6T03SB, S6T03DB, S7T06GB, S7T06SB, S7T06DB, S8T10GB, S8T10SB, S8T10DB, S8T10KB + 19 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6T03GBFrame/output: 60 mm, 3 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S6T03SBFrame/output: 60 mm, 3 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S6T03DBFrame/output: 60 mm, 3 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 4.2/1.4 W | Rated torque 220/140 V: 0.43/0.18 kgf-cm | Starting torque: 0.87/0.36 kgf-cm
S7T06GBFrame/output: 70 mm, 6 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S7T06SBFrame/output: 70 mm, 6 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S7T06DBFrame/output: 70 mm, 6 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 7.3/2.7 W | Rated torque 220/140 V: 0.82/0.37 kgf-cm | Starting torque: 1.57/0.67 kgf-cm
S8T10GBFrame/output: 80 mm, 10 W | Shaft: Pinion (gear type) | Pinion: Not marked (under 20 W) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10SBFrame/output: 80 mm, 10 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10DBFrame/output: 80 mm, 10 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S8T10KBFrame/output: 80 mm, 10 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 12.8/4.3 W | Rated torque 220/140 V: 1.34/0.52 kgf-cm | Starting torque: 2.41/0.98 kgf-cm
S9T20GBH-FFrame/output: 90 mm, 20 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20GBL-FFrame/output: 90 mm, 20 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20SB-FFrame/output: 90 mm, 20 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20DB-FFrame/output: 90 mm, 20 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T20KB-FFrame/output: 90 mm, 20 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 28.0/8.3 W | Rated torque 220/140 V: 2.78/0.91 kgf-cm | Starting torque: 4.95/1.83 kgf-cm
S9T30GBH-FFrame/output: 90 mm, 30 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30GBL-FFrame/output: 90 mm, 30 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30SB-FFrame/output: 90 mm, 30 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30DB-FFrame/output: 90 mm, 30 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T30KB-FFrame/output: 90 mm, 30 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 35.2/10.7 W | Rated torque 220/140 V: 3.49/1.19 kgf-cm | Starting torque: 6.38/2.39 kgf-cm
S9T40GBH-FFrame/output: 90 mm, 40 W | Shaft: Pinion (gear type) | Pinion: H (heat-treated, heavy impact) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40GBL-FFrame/output: 90 mm, 40 W | Shaft: Pinion (gear type) | Pinion: L (light impact) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40SB-FFrame/output: 90 mm, 40 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40DB-FFrame/output: 90 mm, 40 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T40KB-FFrame/output: 90 mm, 40 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 54.1/19.0 W | Rated torque 220/140 V: 5.14/1.93 kgf-cm | Starting torque: 8.76/3.52 kgf-cm
S9T60GB-FFrame/output: 90 mm, 60 W | Shaft: Pinion (gear type) | Pinion: H type (not marked in code) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60SB-FFrame/output: 90 mm, 60 W | Shaft: Straight round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60DB-FFrame/output: 90 mm, 60 W | Shaft: D-cut round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
S9T60KB-FFrame/output: 90 mm, 60 W | Shaft: Keyed round | Pinion: n/a (round shaft) | Output 220/140 V: 74.1/28.6 W | Rated torque 220/140 V: 6.57/2.66 kgf-cm | Starting torque: 10.12/4.26 kgf-cm
