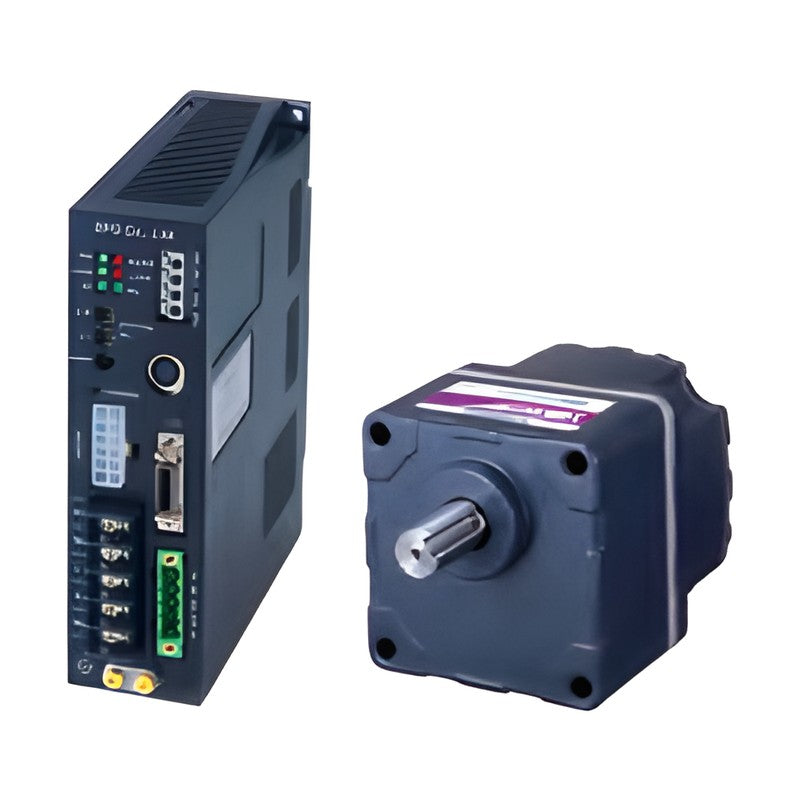

SPG XBA BLDC Geared Motors (20-400 W, 60-104 mm)

SPG XBA BLDC Geared Motors (20-400 W, 60-104 mm)

SPG X-TOR XBA series brushless DC geared motor units with a box-type driver, 20-400 W, 60/80/90/104 mm frames.

Key features

  • Combination type: dedicated XTG gearhead factory-assembled to the motor, supplied with XBD box-type driver
  • Wide speed control 200-3,000 r/min (1:15) with flat torque and +/-1% speed regulation
  • Single-phase 100-120 V, single-phase 200-230 V and three-phase 200-230 V power input versions
  • Slow run / slow stop 0.5-15 s; internal, external potentiometer (20 kOhm) or DC 0-5 V speed setting
  • Protection: overload, overvoltage, undervoltage, sensor/connector fault and overspeed (3,800 r/min)
  • Motor-to-driver distance up to 10.5 m with option cable; DIN-rail mounting plate available

Specifications

Motor type Brushless DC motor with Hall sensor feedback
Rated speed 3,000 r/min (motor)
Speed control range 200-3,000 r/min (1:15)
Speed regulation +/-1% (load, voltage, temperature)
Frequency 50/60 Hz
Gear ratios 1/5, 1/10, 1/15, 1/20, 1/30, 1/50, 1/100, 1/200
Insulation class Class B (130 C)
Degree of protection Motor IP65 (excl. shaft side)
Ambient temperature 0 to +40 C (non-freezing)
Time rating Continuous
Source SPG X-TOR BLDC Geared Motor catalog, p. 28-50
XBA620A-5K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620A-10K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620A-15K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620A-20K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620A-30K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620A-50K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620A-100K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620A-200K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA620B-5K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620B-10K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620B-15K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620B-20K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620B-30K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620B-50K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620B-100K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620B-200K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA620U-5K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620U-10K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620U-15K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620U-20K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620U-30K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620U-50K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620U-100K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620U-200K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840A-5K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840A-10K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840A-15K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840A-20K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840A-30K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840A-50K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840A-100K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840A-200K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840B-5K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840B-10K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840B-15K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840B-20K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840B-30K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840B-50K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840B-100K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840B-200K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840U-5K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840U-10K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840U-15K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840U-20K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840U-30K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840U-50K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840U-100K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840U-200K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975A-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975A-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975A-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975A-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975A-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975A-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975A-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975A-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975B-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975B-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975B-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975B-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975B-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975B-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975B-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975B-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975U-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975U-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975U-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975U-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975U-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975U-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975U-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975U-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120A-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120A-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120A-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120A-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120A-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120A-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120A-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120A-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120B-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120B-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120B-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120B-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120B-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120B-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120B-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120B-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120U-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120U-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120U-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120U-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120U-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120U-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120U-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120U-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150A-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150A-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150A-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150A-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150A-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150A-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150A-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150A-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150B-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150B-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150B-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150B-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150B-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150B-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150B-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150B-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150U-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150U-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150U-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150U-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150U-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150U-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150U-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150U-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10200B-5K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10200B-10K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10200B-15K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10200B-20K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10200B-30K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10200B-50K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10200B-100K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10200B-200K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10200U-5K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10200U-10K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10200U-15K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10200U-20K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10200U-30K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10200U-50K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10200U-100K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10200U-200K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10400U-5K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10400U-10K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10400U-15K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10400U-20K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10400U-30K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10400U-50K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10400U-100K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10400U-200K Configuration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBU620GA Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620GB Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620GU Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620DA Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU620DB Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU620DU Configuration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840GA Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840GB Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840GU Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840DA Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840DB Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840DU Configuration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975GA Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975GB Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975GU Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975DA Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975DB Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975DU Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120GA Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120GB Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120GU Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120DA Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120DB Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120DU Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150GA Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150GB Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150GU Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150DA Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150DB Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150DU Configuration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10200GB Configuration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10200GU Configuration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10200DB Configuration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10200DU Configuration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10400GU Configuration: Motor + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10400DU Configuration: Motor + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBM620G Configuration: Motor only | Frame: 60 mm | Output: 20 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM620D Configuration: Motor only | Frame: 60 mm | Output: 20 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM840G Configuration: Motor only | Frame: 80 mm | Output: 40 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM840D Configuration: Motor only | Frame: 80 mm | Output: 40 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM975G Configuration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM975D Configuration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM9120G Configuration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM9120D Configuration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM9150G Configuration: Motor only | Frame: 90 mm | Output: 150 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM9150D Configuration: Motor only | Frame: 90 mm | Output: 150 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM10200G Configuration: Motor only | Frame: 104 mm | Output: 200 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM10200D Configuration: Motor only | Frame: 104 mm | Output: 200 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM10400G Configuration: Motor only | Frame: 104 mm | Output: 400 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM10400D Configuration: Motor only | Frame: 104 mm | Output: 400 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
BLDC Geared MotorsSPG
194 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG XBA BLDC Geared Motors (20-400 W, 60-104 mm)

Brand SPG·BLDC Geared Motors

Available part numbers (194)

XBA620A-5K, XBA620A-10K, XBA620A-15K, XBA620A-20K, XBA620A-30K, XBA620A-50K, XBA620A-100K, XBA620A-200K, XBA620B-5K, XBA620B-10K + 184 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XBA620A-5KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620A-10KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620A-15KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620A-20KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620A-30KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620A-50KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620A-100KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620A-200KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA620B-5KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620B-10KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620B-15KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620B-20KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620B-30KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620B-50KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620B-100KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620B-200KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA620U-5KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA620U-10KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA620U-15KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA620U-20KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA620U-30KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA620U-50KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA620U-100KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA620U-200KConfiguration: Motor + gearhead + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840A-5KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840A-10KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840A-15KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840A-20KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840A-30KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840A-50KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840A-100KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840A-200KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840B-5KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840B-10KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840B-15KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840B-20KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840B-30KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840B-50KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840B-100KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840B-200KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA840U-5KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA840U-10KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA840U-15KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA840U-20KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA840U-30KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA840U-50KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA840U-100KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA840U-200KConfiguration: Motor + gearhead + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975A-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975A-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975A-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975A-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975A-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975A-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975A-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975A-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975B-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975B-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975B-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975B-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975B-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975B-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975B-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975B-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA975U-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA975U-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA975U-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA975U-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA975U-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA975U-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA975U-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA975U-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120A-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120A-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120A-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120A-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120A-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120A-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120A-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120A-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120B-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120B-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120B-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120B-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120B-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120B-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120B-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120B-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9120U-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9120U-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9120U-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9120U-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9120U-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9120U-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9120U-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9120U-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150A-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150A-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150A-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150A-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150A-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150A-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150A-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150A-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150B-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150B-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150B-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150B-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150B-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150B-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150B-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150B-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA9150U-5KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA9150U-10KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA9150U-15KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA9150U-20KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA9150U-30KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA9150U-50KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA9150U-100KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA9150U-200KConfiguration: Motor + gearhead + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10200B-5KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10200B-10KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10200B-15KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10200B-20KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10200B-30KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10200B-50KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10200B-100KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10200B-200KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10200U-5KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10200U-10KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10200U-15KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10200U-20KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10200U-30KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10200U-50KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10200U-100KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10200U-200KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBA10400U-5KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XBA10400U-10KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XBA10400U-15KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XBA10400U-20KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XBA10400U-30KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XBA10400U-50KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XBA10400U-100KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XBA10400U-200KConfiguration: Motor + gearhead + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XBU620GAConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620GBConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620GUConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU620DAConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU620DBConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU620DUConfiguration: Motor + driver | Frame: 60 mm | Output: 20 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840GAConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840GBConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840GUConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU840DAConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840DBConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU840DUConfiguration: Motor + driver | Frame: 80 mm | Output: 40 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975GAConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975GBConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975GUConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU975DAConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975DBConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU975DUConfiguration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120GAConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120GBConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120GUConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9120DAConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120DBConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9120DUConfiguration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150GAConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150GBConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150GUConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU9150DAConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 100-120 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150DBConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU9150DUConfiguration: Motor + driver | Frame: 90 mm | Output: 150 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10200GBConfiguration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10200GUConfiguration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10200DBConfiguration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 1-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10200DUConfiguration: Motor + driver | Frame: 104 mm | Output: 200 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBU10400GUConfiguration: Motor + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBU10400DUConfiguration: Motor + driver | Frame: 104 mm | Output: 400 W | Power supply: 3-ph 200-230 V | Gear ratio: None (motor only) | Shaft: D-cut
XBM620GConfiguration: Motor only | Frame: 60 mm | Output: 20 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM620DConfiguration: Motor only | Frame: 60 mm | Output: 20 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM840GConfiguration: Motor only | Frame: 80 mm | Output: 40 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM840DConfiguration: Motor only | Frame: 80 mm | Output: 40 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM975GConfiguration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM975DConfiguration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM9120GConfiguration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM9120DConfiguration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM9150GConfiguration: Motor only | Frame: 90 mm | Output: 150 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM9150DConfiguration: Motor only | Frame: 90 mm | Output: 150 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM10200GConfiguration: Motor only | Frame: 104 mm | Output: 200 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM10200DConfiguration: Motor only | Frame: 104 mm | Output: 200 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XBM10400GConfiguration: Motor only | Frame: 104 mm | Output: 400 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XBM10400DConfiguration: Motor only | Frame: 104 mm | Output: 400 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
