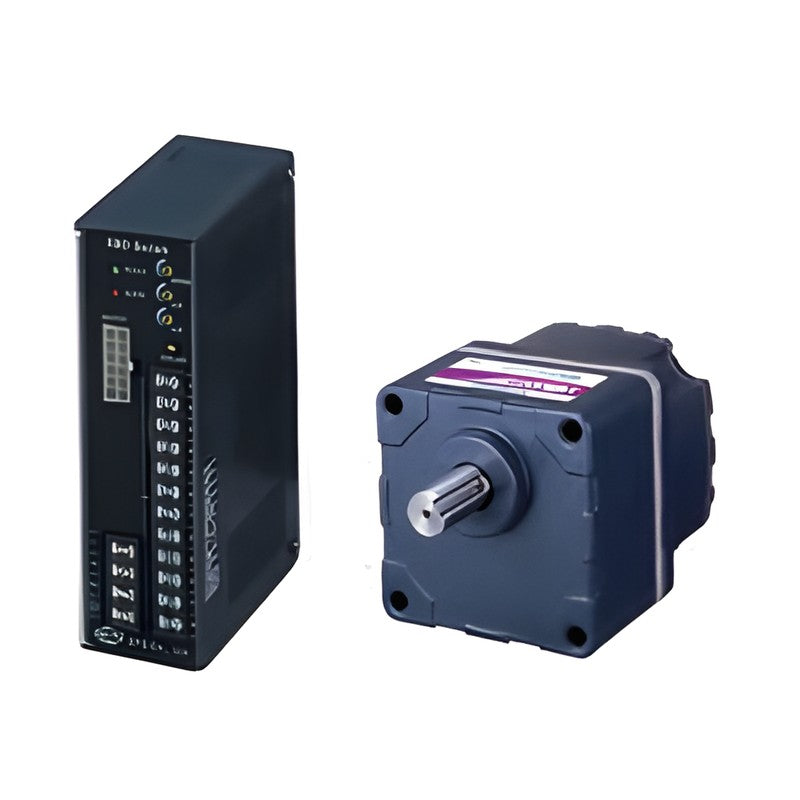

SPG XBD BLDC Box-Type Drivers (20-400 W, for XBA)

SPG XBD BLDC Box-Type Drivers (20-400 W, for XBA)

SPG XBD box-type control units for X-TOR XBA brushless DC motors, 20-400 W, single-phase 100/200 V and three-phase 200 V.

Key features

  • Box-type control unit; speed set by built-in potentiometer, external 20 kOhm potentiometer or DC 0-5 V
  • Photocoupler inputs (DC 12 V) for EXT, CW, CCW; open-collector speed and alarm outputs
  • Slow run / slow stop adjustable 0.5-15 s; multi-step speed setting
  • Alarm stop on overload, overvoltage, undervoltage, sensor fault and overspeed
  • XBD20-XBD150 0.7 kg; XBD200/XBD400U 1.0 kg with heat-sink housing

Specifications

Matching motors XBM / XBA series BLDC motors
Speed control range 200-3,000 r/min (motor)
Input signal Photocoupler, DC 12 V +/-10%
Output signal Open collector, max. 26.4 V 10 mA
Accessories External speed dial, mounting plate (option)
Source SPG X-TOR BLDC Geared Motor catalog, p. 29-41
XBD20A Motor output: 20 W | Power supply: 1-ph 100-120 V
XBD20B Motor output: 20 W | Power supply: 1-ph 200-230 V
XBD20U Motor output: 20 W | Power supply: 3-ph 200-230 V
XBD40A Motor output: 40 W | Power supply: 1-ph 100-120 V
XBD40B Motor output: 40 W | Power supply: 1-ph 200-230 V
XBD40U Motor output: 40 W | Power supply: 3-ph 200-230 V
XBD75A Motor output: 75 W | Power supply: 1-ph 100-120 V
XBD75B Motor output: 75 W | Power supply: 1-ph 200-230 V
XBD75U Motor output: 75 W | Power supply: 3-ph 200-230 V
XBD120A Motor output: 120 W | Power supply: 1-ph 100-120 V
XBD120B Motor output: 120 W | Power supply: 1-ph 200-230 V
XBD120U Motor output: 120 W | Power supply: 3-ph 200-230 V
XBD150A Motor output: 150 W | Power supply: 1-ph 100-120 V
XBD150B Motor output: 150 W | Power supply: 1-ph 200-230 V
XBD150U Motor output: 150 W | Power supply: 3-ph 200-230 V
XBD200B Motor output: 200 W | Power supply: 1-ph 200-230 V
XBD200U Motor output: 200 W | Power supply: 3-ph 200-230 V
XBD400U Motor output: 400 W | Power supply: 3-ph 200-230 V
BLDC Motor DriversSPG
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG XBD BLDC Box-Type Drivers (20-400 W, for XBA)

Brand SPG·BLDC Motor Drivers

Available part numbers (18)

XBD20A, XBD20B, XBD20U, XBD40A, XBD40B, XBD40U, XBD75A, XBD75B, XBD75U, XBD120A + 8 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XBD20AMotor output: 20 W | Power supply: 1-ph 100-120 V
XBD20BMotor output: 20 W | Power supply: 1-ph 200-230 V
XBD20UMotor output: 20 W | Power supply: 3-ph 200-230 V
XBD40AMotor output: 40 W | Power supply: 1-ph 100-120 V
XBD40BMotor output: 40 W | Power supply: 1-ph 200-230 V
XBD40UMotor output: 40 W | Power supply: 3-ph 200-230 V
XBD75AMotor output: 75 W | Power supply: 1-ph 100-120 V
XBD75BMotor output: 75 W | Power supply: 1-ph 200-230 V
XBD75UMotor output: 75 W | Power supply: 3-ph 200-230 V
XBD120AMotor output: 120 W | Power supply: 1-ph 100-120 V
XBD120BMotor output: 120 W | Power supply: 1-ph 200-230 V
XBD120UMotor output: 120 W | Power supply: 3-ph 200-230 V
XBD150AMotor output: 150 W | Power supply: 1-ph 100-120 V
XBD150BMotor output: 150 W | Power supply: 1-ph 200-230 V
XBD150UMotor output: 150 W | Power supply: 3-ph 200-230 V
XBD200BMotor output: 200 W | Power supply: 1-ph 200-230 V
XBD200UMotor output: 200 W | Power supply: 3-ph 200-230 V
XBD400UMotor output: 400 W | Power supply: 3-ph 200-230 V
