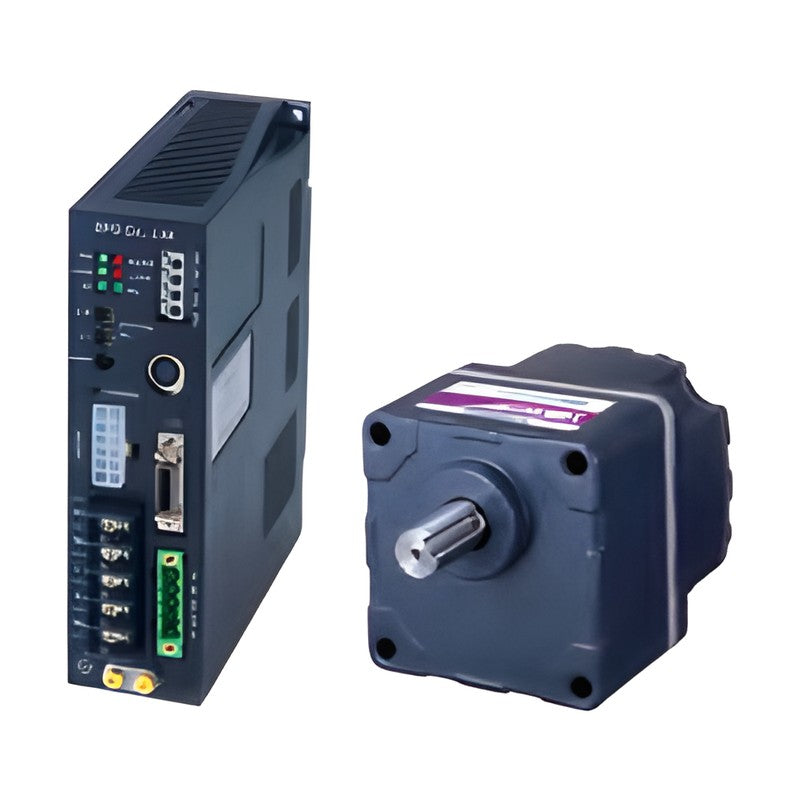

SPG XQA CC-Link BLDC Geared Motors (30-120 W, 60-90 mm)

SPG XQA CC-Link BLDC Geared Motors (30-120 W, 60-90 mm)

SPG X-TOR XQA series brushless DC geared motor units with a CC-Link box-type driver, 30-120 W, 60/80/90 mm frames.

Key features

  • CC-Link Ver.1.10 remote device station: wiring, speed/data setting and real-time monitoring over the network
  • Wide speed control 200-4,000 r/min (1:20) with +/-0.2% speed regulation
  • Single-phase or three-phase 200-240 V power input
  • Combination type with factory-assembled XTG gearhead; slow run / slow stop 0.2-15 s
  • Protection incl. overload, overspeed, sensor fault, EEPROM fault, regenerative resistor overheat and network bus error
  • Motor-to-driver distance up to 20 m with option cable; DIN-rail mounting plate available

Specifications

Motor type Brushless DC motor with Hall sensor feedback
Rated speed 3,000 r/min (motor)
Speed control range 200-4,000 r/min (1:20)
Speed regulation +/-0.2% (load, voltage, temperature)
Communication CC-Link Ver.1.10, 156 kbps-10 Mbps
Frequency 50/60 Hz
Gear ratios 1/5, 1/10, 1/15, 1/20, 1/30, 1/50, 1/100, 1/200
Insulation class Class B (130 C)
Degree of protection Motor IP65 (excl. shaft side), driver IP20
Time rating Continuous
Source SPG X-TOR BLDC Geared Motor catalog, p. 52-62
XQA630B-5K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA630B-10K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA630B-15K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA630B-20K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA630B-30K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA630B-50K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA630B-100K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA630B-200K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA630U-5K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA630U-10K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA630U-15K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA630U-20K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA630U-30K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA630U-50K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA630U-100K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA630U-200K Configuration: Motor + gearhead + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA860B-5K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA860B-10K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA860B-15K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA860B-20K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA860B-30K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA860B-50K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA860B-100K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA860B-200K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA860U-5K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA860U-10K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA860U-15K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA860U-20K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA860U-30K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA860U-50K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA860U-100K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA860U-200K Configuration: Motor + gearhead + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA975B-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA975B-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA975B-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA975B-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA975B-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA975B-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA975B-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA975B-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA975U-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA975U-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA975U-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA975U-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA975U-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA975U-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA975U-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA975U-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA9120B-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA9120B-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA9120B-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA9120B-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA9120B-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA9120B-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA9120B-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA9120B-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQA9120U-5K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/5 | Shaft: Key (gearhead)
XQA9120U-10K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/10 | Shaft: Key (gearhead)
XQA9120U-15K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/15 | Shaft: Key (gearhead)
XQA9120U-20K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/20 | Shaft: Key (gearhead)
XQA9120U-30K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/30 | Shaft: Key (gearhead)
XQA9120U-50K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/50 | Shaft: Key (gearhead)
XQA9120U-100K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/100 | Shaft: Key (gearhead)
XQA9120U-200K Configuration: Motor + gearhead + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: 1/200 | Shaft: Key (gearhead)
XQU630GB Configuration: Motor + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU630GU Configuration: Motor + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU630DB Configuration: Motor + driver | Frame: 60 mm | Output: 30 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU630DU Configuration: Motor + driver | Frame: 60 mm | Output: 30 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU860GB Configuration: Motor + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU860GU Configuration: Motor + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU860DB Configuration: Motor + driver | Frame: 80 mm | Output: 60 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU860DU Configuration: Motor + driver | Frame: 80 mm | Output: 60 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU975GB Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU975GU Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU975DB Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU975DU Configuration: Motor + driver | Frame: 90 mm | Output: 75 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU9120GB Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU9120GU Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQU9120DB Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 1-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQU9120DU Configuration: Motor + driver | Frame: 90 mm | Output: 120 W | Power supply: 3-ph 200-240 V | Gear ratio: None (motor only) | Shaft: D-cut
XQM630G Configuration: Motor only | Frame: 60 mm | Output: 30 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQM630D Configuration: Motor only | Frame: 60 mm | Output: 30 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XQM860G Configuration: Motor only | Frame: 80 mm | Output: 60 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQM860D Configuration: Motor only | Frame: 80 mm | Output: 60 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XQM975G Configuration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQM975D Configuration: Motor only | Frame: 90 mm | Output: 75 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
XQM9120G Configuration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: Gear screw (pinion)
XQM9120D Configuration: Motor only | Frame: 90 mm | Output: 120 W | Power supply: Via driver | Gear ratio: None (motor only) | Shaft: D-cut
