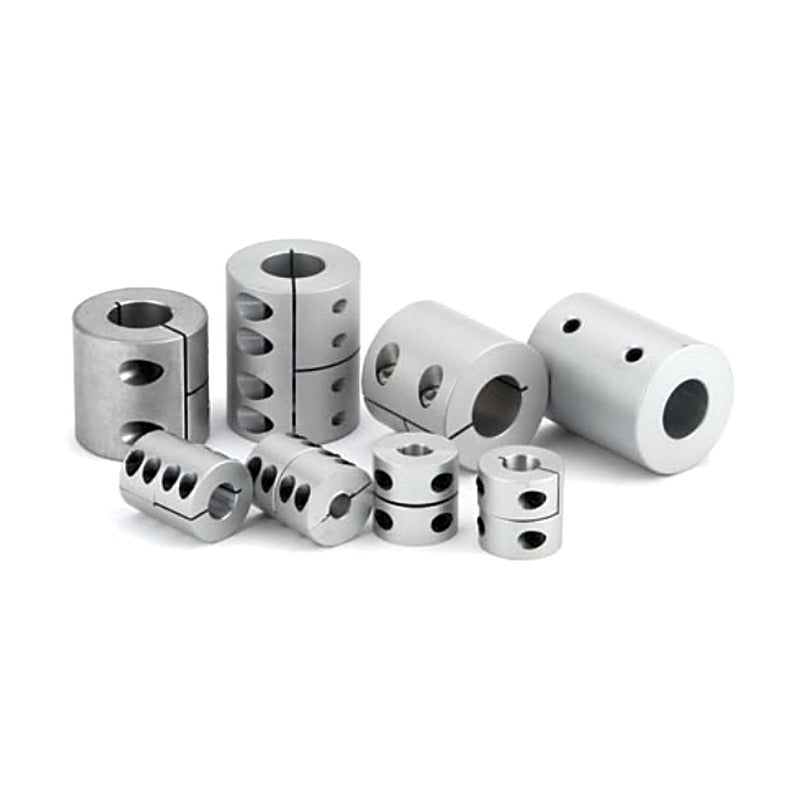

SUNGIL SRG / SRGL Rigid Coupling, Aluminum (OD 16-53 mm)

SUNGIL SRG / SRGL Rigid Coupling, Aluminum (OD 16-53 mm)

One-piece aluminum rigid coupling with no backlash or loss of motion. Shafts must be aligned accurately as it does not absorb misalignment; SRGL is the long side-clamp type.

Key features

  • One-piece body, zero backlash and no lost motion
  • Very high torsional stiffness for precision positioning
  • Set-screw (SRG), side-clamp (SRG-C) and long side-clamp (SRGL-C)
  • Hub split (CW) available on side-clamp types
  • Keyway machining available

Specifications

Body material High strength aluminum alloy, anodized
Screws SCM435, black oxide
Clamping Set-screw / side-clamp (C) / hub split (CW)
Misalignment Not absorbed; align shafts accurately
Shaft tolerance h7 recommended
Source SUNGIL Product Catalogue 2026 (SRG series, pp. 107-110)
SRG-16 Clamping: Set-screw | OD x L: 16 x 22.5 mm | Torque: 1 N·m | Max speed: 25,000 rpm | Std bores (mm): 3,4,5,6
SRG-20 Clamping: Set-screw | OD x L: 20 x 24 mm | Torque: 2.5 N·m | Max speed: 20,000 rpm | Std bores (mm): 4,5,6,8,10
SRG-25 Clamping: Set-screw | OD x L: 25 x 35 mm | Torque: 4 N·m | Max speed: 18,000 rpm | Std bores (mm): 5,6,8,10,11,12
SRG-32 Clamping: Set-screw | OD x L: 32 x 40 mm | Torque: 9 N·m | Max speed: 14,000 rpm | Std bores (mm): 6,8,10,11,12,14,15
SRG-43 Clamping: Set-screw | OD x L: 43 x 52 mm | Torque: 20 N·m | Max speed: 12,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,20,22
SRG-53 Clamping: Set-screw | OD x L: 53 x 66 mm | Torque: 25 N·m | Max speed: 8,000 rpm | Std bores (mm): 12,14,15,16,18,20,22,24
SRG-16C Clamping: Side-clamp | OD x L: 16 x 16 mm | Torque: 1 N·m | Max speed: 18,000 rpm | Std bores (mm): 3,4,5,6
SRG-16CW Clamping: Side-clamp, hub split | OD x L: 16 x 16 mm | Torque: 1 N·m | Max speed: 18,000 rpm | Std bores (mm): 3,4,5,6
SRG-20C Clamping: Side-clamp | OD x L: 20 x 20 mm | Torque: 2.5 N·m | Max speed: 15,000 rpm | Std bores (mm): 4,5,6,8,10
SRG-20CW Clamping: Side-clamp, hub split | OD x L: 20 x 20 mm | Torque: 2.5 N·m | Max speed: 15,000 rpm | Std bores (mm): 4,5,6,8,10
SRG-25C Clamping: Side-clamp | OD x L: 25 x 25 mm | Torque: 4 N·m | Max speed: 12,000 rpm | Std bores (mm): 5,6,8,10,11,12
SRG-25CW Clamping: Side-clamp, hub split | OD x L: 25 x 25 mm | Torque: 4 N·m | Max speed: 12,000 rpm | Std bores (mm): 5,6,8,10,11,12
SRG-32C Clamping: Side-clamp | OD x L: 32 x 32 mm | Torque: 9 N·m | Max speed: 10,000 rpm | Std bores (mm): 6,8,10,11,12,14,15
SRG-32CW Clamping: Side-clamp, hub split | OD x L: 32 x 32 mm | Torque: 9 N·m | Max speed: 10,000 rpm | Std bores (mm): 6,8,10,11,12,14,15
SRG-43C Clamping: Side-clamp | OD x L: 43 x 41 mm | Torque: 20 N·m | Max speed: 8,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,20,22
SRG-43CW Clamping: Side-clamp, hub split | OD x L: 43 x 41 mm | Torque: 20 N·m | Max speed: 8,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,20,22
SRG-53C Clamping: Side-clamp | OD x L: 53 x 51 mm | Torque: 25 N·m | Max speed: 6,000 rpm | Std bores (mm): 12,14,15,16,18,20,22,24
SRG-53CW Clamping: Side-clamp, hub split | OD x L: 53 x 51 mm | Torque: 25 N·m | Max speed: 6,000 rpm | Std bores (mm): 12,14,15,16,18,20,22,24
SRGL-16C Clamping: Side-clamp | OD x L: 16 x 22.5 mm | Torque: 1 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,5,6
SRGL-16CW Clamping: Side-clamp, hub split | OD x L: 16 x 22.5 mm | Torque: 1 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,5,6
SRGL-20C Clamping: Side-clamp | OD x L: 20 x 24 mm | Torque: 2.5 N·m | Max speed: 14,000 rpm | Std bores (mm): 4,5,6,8,10
SRGL-20CW Clamping: Side-clamp, hub split | OD x L: 20 x 24 mm | Torque: 2.5 N·m | Max speed: 14,000 rpm | Std bores (mm): 4,5,6,8,10
SRGL-25C Clamping: Side-clamp | OD x L: 25 x 35 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,8,10,11,12
SRGL-25CW Clamping: Side-clamp, hub split | OD x L: 25 x 35 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,8,10,11,12
SRGL-32C Clamping: Side-clamp | OD x L: 32 x 40 mm | Torque: 9 N·m | Max speed: 9,000 rpm | Std bores (mm): 6,8,10,11,12,14,15
SRGL-32CW Clamping: Side-clamp, hub split | OD x L: 32 x 40 mm | Torque: 9 N·m | Max speed: 9,000 rpm | Std bores (mm): 6,8,10,11,12,14,15
SRGL-43C Clamping: Side-clamp | OD x L: 43 x 52 mm | Torque: 20 N·m | Max speed: 7,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,20,22
SRGL-43CW Clamping: Side-clamp, hub split | OD x L: 43 x 52 mm | Torque: 20 N·m | Max speed: 7,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,20,22
SRGL-53C Clamping: Side-clamp | OD x L: 53 x 66 mm | Torque: 25 N·m | Max speed: 5,500 rpm | Std bores (mm): 12,14,15,16,18,20,22,24
SRGL-53CW Clamping: Side-clamp, hub split | OD x L: 53 x 66 mm | Torque: 25 N·m | Max speed: 5,500 rpm | Std bores (mm): 12,14,15,16,18,20,22,24
