TPC Mechatronics KG Compression Gas Spring (Body Ø15-100, up to 12,000 N)

TPC Mechatronics KG Compression Gas Spring (Body Ø15-100, up to 12,000 N)

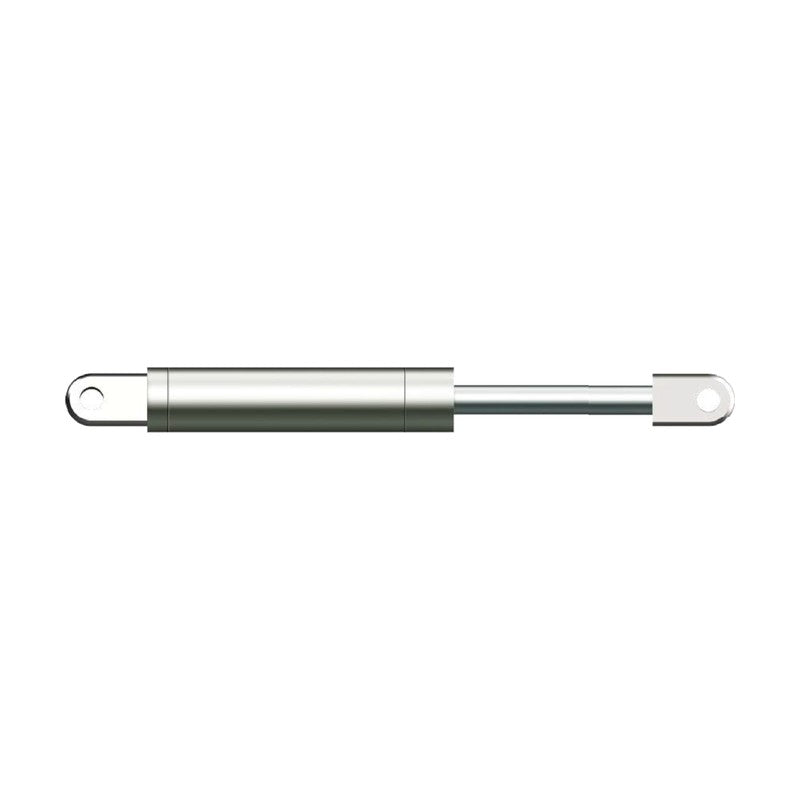

The KG series is a compression (push) type gas spring that uses high-pressure nitrogen gas to provide a stable force.

Key features

  • It offers a wide range of spring characteristics, long strokes, a low spring rate, high force from a compact size and speed control during compression, giving a more stable force than plate or coil springs
  • Body diameters range from 15 to 100 mm with maximum forces from 300 N to 12,000 N, and rod and body ends are available in several mount types (S, I, R, L, H, Y depending on size)
  • Standard operating temperature is -10 to 60°C (special version -30 to 100°C)
  • Stroke, mount types, nominal force and mounting center distance are specified at order; custom size, stroke, force and stainless steel versions are available
TPC Mechatronics KG Compression Gas Spring (Body Ø15-100, up to 12,000 N) reference 2
KG15 Max stroke: 200 mm | A: 35 mm | Rod diameter B: Ø6 mm | Body diameter C: Ø15 mm | Mount types: S, I, R, L | Thread: M6x1.0 | Max force: 300 N max
KG18 Max stroke: 250 mm | A: 40 mm | Rod diameter B: Ø8 mm | Body diameter C: Ø18 mm | Mount types: S, I, R, L, H, Y | Thread: M8x1.25 | Max force: 600 N max
KG22 Max stroke: 300 mm | A: 60 mm | Rod diameter B: Ø10 mm | Body diameter C: Ø22 mm | Mount types: S, I, R, L, H, Y | Thread: M10x1.5 | Max force: 900 N max
KG30 Max stroke: 350 mm | A: 60 mm | Rod diameter B: Ø16 mm | Body diameter C: Ø30 mm | Mount types: S, R, H | Thread: M14x2.0 | Max force: 1,200 N max
KG35 Max stroke: 400 mm | A: 70 mm | Rod diameter B: Ø20 mm | Body diameter C: Ø35 mm | Mount types: S, R, H | Thread: M16x1.5 | Max force: 2,000 N max
KG40 Max stroke: 500 mm | A: 70 mm | Rod diameter B: Ø20 mm | Body diameter C: Ø40 mm | Mount types: S, R, H | Thread: M18x1.5 | Max force: 3,000 N max
KG50 Max stroke: 700 mm | A: 80 mm | Rod diameter B: Ø25 mm | Body diameter C: Ø50 mm | Mount types: S, R, H | Thread: M20x1.5 | Max force: 5,000 N max
KG75 Max stroke: 1,000 mm | A: 140 mm | Rod diameter B: Ø35 mm | Body diameter C: Ø75 mm | Mount types: S, R, H | Thread: M24x2.0 | Max force: 8,000 N max
KG100 Max stroke: 1,300 mm | A: 170 mm | Rod diameter B: Ø40 mm | Body diameter C: Ø100 mm | Mount types: S, R, H | Thread: M30x2.0 | Max force: 12,000 N max
Gas SpringsTPC Mechatronics
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics KG Compression Gas Spring (Body Ø15-100, up to 12,000 N)

Brand TPC Mechatronics·Gas Springs

Available part numbers (9)

KG15, KG18, KG22, KG30, KG35, KG40, KG50, KG75, KG100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics KG Compression Gas Spring (Body Ø15-100, up to 12,000 N) reference 2
0 selected
RFQ List (0)
Product codeSpec
KG15Max stroke: 200 mm | A: 35 mm | Rod diameter B: Ø6 mm | Body diameter C: Ø15 mm | Mount types: S, I, R, L | Thread: M6x1.0 | Max force: 300 N max
KG18Max stroke: 250 mm | A: 40 mm | Rod diameter B: Ø8 mm | Body diameter C: Ø18 mm | Mount types: S, I, R, L, H, Y | Thread: M8x1.25 | Max force: 600 N max
KG22Max stroke: 300 mm | A: 60 mm | Rod diameter B: Ø10 mm | Body diameter C: Ø22 mm | Mount types: S, I, R, L, H, Y | Thread: M10x1.5 | Max force: 900 N max
KG30Max stroke: 350 mm | A: 60 mm | Rod diameter B: Ø16 mm | Body diameter C: Ø30 mm | Mount types: S, R, H | Thread: M14x2.0 | Max force: 1,200 N max
KG35Max stroke: 400 mm | A: 70 mm | Rod diameter B: Ø20 mm | Body diameter C: Ø35 mm | Mount types: S, R, H | Thread: M16x1.5 | Max force: 2,000 N max
KG40Max stroke: 500 mm | A: 70 mm | Rod diameter B: Ø20 mm | Body diameter C: Ø40 mm | Mount types: S, R, H | Thread: M18x1.5 | Max force: 3,000 N max
KG50Max stroke: 700 mm | A: 80 mm | Rod diameter B: Ø25 mm | Body diameter C: Ø50 mm | Mount types: S, R, H | Thread: M20x1.5 | Max force: 5,000 N max
KG75Max stroke: 1,000 mm | A: 140 mm | Rod diameter B: Ø35 mm | Body diameter C: Ø75 mm | Mount types: S, R, H | Thread: M24x2.0 | Max force: 8,000 N max
KG100Max stroke: 1,300 mm | A: 170 mm | Rod diameter B: Ø40 mm | Body diameter C: Ø100 mm | Mount types: S, R, H | Thread: M30x2.0 | Max force: 12,000 N max
