• UDT UGP-10 Hydraulic Hydraulic Gear Puller
1 1

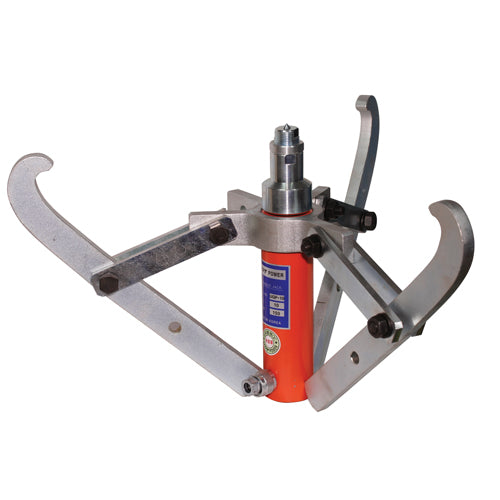

UDT UGP-10 Hydraulic Hydraulic Gear Puller

UDT UGP-10 Hydraulic Hydraulic Gear Puller

The UDT UGP-10 Hydraulic Gear Puller is a hydraulic-driven extraction tool designed to remove gears, bearings, pulleys, and hubs from shafts with controlled, even force, sourced direct from Korea.

Key features

  • Hydraulic gear pullers are widely used in mechanical maintenance and repair operations across industries such as manufacturing, heavy equipment servicing, and automotive, where press-fit components must be removed without damaging surrounding parts

Specifications

Stroke 150
501-9049 MPN: UGP-10 | UGP-10 (Pump Separate) | Max Opening: 220 | Weight: 15.2 | Stroke: 150 | Working Capacity: 10 | Compatible Pump: UP-1B | Max Depth: 210 | Jaw Length A: 390
501-9058 MPN: UGP-20 | UGP-20(Pump Sold Separately) | Max Opening: 330 | Weight: 30 | Stroke: 150 | Working Capacity: 20 | Compatible Pump: UP-2A | Max Depth: 280 | Jaw Length A: 475
501-9067 MPN: UGP-30 | UGP-30 (Pump Sold Separately) | Max Opening: 350 | Weight: 38 | Stroke: 150 | Working Capacity: 30 | Compatible Pump: UP-2A | Max Depth: 290 | Jaw Length A: 475
501-9076 MPN: UGP-50 | UGP-50 (Pump Separate) | Max Opening: 380 | Weight: 85.3 | Stroke: 150 | Working Capacity: 50 | Compatible Pump: UP-3A | Max Depth: 350 | Jaw Length A: 720
Hydraulic Construction ToolsUDT
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT UGP-10 Hydraulic Hydraulic Gear Puller

Brand UDT·Hydraulic Construction Tools

Available part numbers (4)

501-9049, 501-9058, 501-9067, 501-9076

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
501-9049MPN: UGP-10 | UGP-10 (Pump Separate) | Max Opening: 220 | Weight: 15.2 | Stroke: 150 | Working Capacity: 10 | Compatible Pump: UP-1B | Max Depth: 210 | Jaw Length A: 390
501-9058MPN: UGP-20 | UGP-20(Pump Sold Separately) | Max Opening: 330 | Weight: 30 | Stroke: 150 | Working Capacity: 20 | Compatible Pump: UP-2A | Max Depth: 280 | Jaw Length A: 475
501-9067MPN: UGP-30 | UGP-30 (Pump Sold Separately) | Max Opening: 350 | Weight: 38 | Stroke: 150 | Working Capacity: 30 | Compatible Pump: UP-2A | Max Depth: 290 | Jaw Length A: 475
501-9076MPN: UGP-50 | UGP-50 (Pump Separate) | Max Opening: 380 | Weight: 85.3 | Stroke: 150 | Working Capacity: 50 | Compatible Pump: UP-3A | Max Depth: 350 | Jaw Length A: 720
