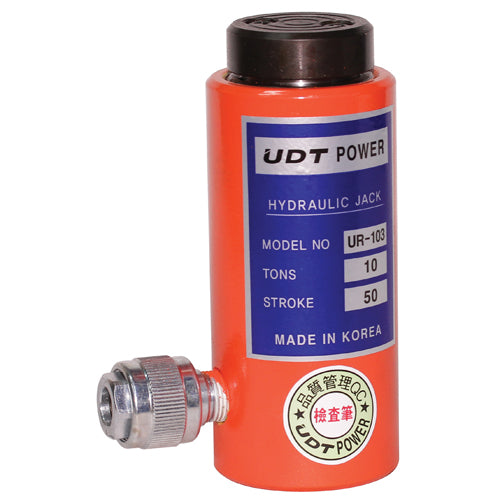

• UDT UR-103 Hydraulic Hydraulic Ram
1 1

UDT UR-103 Hydraulic Hydraulic Ram

UDT UR-103 Hydraulic Hydraulic Ram

The UDT UR-103 Hydraulic Ram is a powerful hydraulic pushing and pressing tool sourced direct from Korea.

Key features

  • Hydraulic rams of this type are commonly used in construction, maintenance, and fabrication work to apply controlled linear force for tasks such as straightening, aligning, or pressing structural components into position
501-8749 MPN: UR-103 | 10T * 50MM(UR-103) | Outer Diameter: 62 | Weight: 2.7 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 140 | Set Price: 234/000 | Tonnage: 10
501-8758 MPN: UR-102 | 10T * 100MM(UR-102) | Outer Diameter: 62 | Weight: 3.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 190 | Set Price: 248/000 | Tonnage: 10
501-8767 MPN: UR-101 | 10T * 150MM(UR-101) | Outer Diameter: 62 | Weight: 4.4 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 240 | Set Price: 267/000 | Tonnage: 10
501-8776 MPN: UR-203 | 20T * 50MM(UR-203) | Outer Diameter: 88 | Weight: 5 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 142 | Set Price: 286/000 | Tonnage: 20
501-8785 MPN: UR-202 | 20T * 100MM(UR-202) | Outer Diameter: 88 | Weight: 6.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 192 | Set Price: 317/000 | Tonnage: 20
501-8794 MPN: UR-201 | 20T * 150MM(UR-201) | Outer Diameter: 88 | Weight: 9.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 242 | Set Price: 347/000 | Tonnage: 20
501-8800 MPN: UR-303 | 30T * 50MM(UR-303) | Outer Diameter: 103 | Weight: 6.6 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 147 | Set Price: 314/000 | Tonnage: 30
501-8819 MPN: UR-302 | 30T * 100MM(UR-302) | Outer Diameter: 103 | Weight: 11.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 197 | Set Price: 340/000 | Tonnage: 30
501-8828 MPN: UR-301 | 30T * 150MM(UR-301) | Outer Diameter: 103 | Weight: 12.6 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 247 | Set Price: 395/000 | Tonnage: 30
501-8837 MPN: UR-503 | 50T * 50MM(UR-503) | Outer Diameter: 128 | Weight: 11.4 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 151 | Set Price: 366/000 | Tonnage: 50
501-8846 MPN: UR-502 | 50T * 100MM(UR-502) | Outer Diameter: 128 | Weight: 16.4 | Stroke: 100 | Compatible Pump: UP-2A | Self Height: 202 | Set Price: 388/000 | Tonnage: 50
501-8855 MPN: UR-501 | 50T * 150MM(UR-501) | Outer Diameter: 128 | Weight: 19.4 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 252 | Set Price: 435/000 | Tonnage: 50
501-8864 MPN: UR-1003 | 100T * 50MM(UR-1003) | Outer Diameter: 178 | Weight: 24 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 160 | Set Price: 544/000 | Tonnage: 100
501-8873 MPN: UR-1002 | 100T * 100MM(UR-1002) | Outer Diameter: 178 | Weight: 35.7 | Stroke: 100 | Compatible Pump: UP-3A | Self Height: 225 | Set Price: 820/000 | Tonnage: 100
501-8882 MPN: UR-1001 | 100T * 150MM(UR-1001) | Outer Diameter: 178 | Weight: 41.7 | Stroke: 150 | Compatible Pump: UP-3A | Self Height: 275 | Set Price: 869/000 | Tonnage: 100
501-9012 MPN: UP-1B | UP-1B | Overall Length: 620 | Weight: 7 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 800 | Compatible Ram: 30T-100mm
501-9021 MPN: UP-2A | UP-2A | Overall Length: 656 | Weight: 9 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/000 | Compatible Ram: 100T-50mm
501-9030 MPN: UP-3A | UP-3A | Overall Length: 656 | Weight: 10.5 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm
516-3243 MPN: UP-3AN | ★UP-3AN | Overall Length: 675 | Weight: 16.2 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm
592-9463 MPN: UR-054 | 5T * 50MM(UR-054) | Outer Diameter: 46 | Weight: 1.1 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 145 | Set Price: 248/700 | Tonnage: 5
592-9472 MPN: UR-055 | 5T * 100MM(UR-055) | Outer Diameter: 46 | Weight: 1.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 195 | Set Price: 262/000 | Tonnage: 5
592-9481 MPN: UR-056 | 5T * 150MM(UR-056) | Outer Diameter: 46 | Weight: 2.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 245 | Set Price: 314/000 | Tonnage: 5
593-7143 MPN: UP-1BC | ★UP-1BN | Overall Length: 600 | Weight: 10.6 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 700 | Compatible Ram: 30T-100mm
593-7152 MPN: UP-2AC | ★UP-2AN | Overall Length: 715 | Weight: 16 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/700 | Compatible Ram: 100T-50mm
Hydraulic Construction ToolsUDT
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT UR-103 Hydraulic Hydraulic Ram

Brand UDT·Hydraulic Construction Tools

Available part numbers (24)

501-8749, 501-8758, 501-8767, 501-8776, 501-8785, 501-8794, 501-8800, 501-8819, 501-8828, 501-8837 + 14 more — see full table ↓

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
501-8749MPN: UR-103 | 10T * 50MM(UR-103) | Outer Diameter: 62 | Weight: 2.7 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 140 | Set Price: 234/000 | Tonnage: 10
501-8758MPN: UR-102 | 10T * 100MM(UR-102) | Outer Diameter: 62 | Weight: 3.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 190 | Set Price: 248/000 | Tonnage: 10
501-8767MPN: UR-101 | 10T * 150MM(UR-101) | Outer Diameter: 62 | Weight: 4.4 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 240 | Set Price: 267/000 | Tonnage: 10
501-8776MPN: UR-203 | 20T * 50MM(UR-203) | Outer Diameter: 88 | Weight: 5 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 142 | Set Price: 286/000 | Tonnage: 20
501-8785MPN: UR-202 | 20T * 100MM(UR-202) | Outer Diameter: 88 | Weight: 6.7 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 192 | Set Price: 317/000 | Tonnage: 20
501-8794MPN: UR-201 | 20T * 150MM(UR-201) | Outer Diameter: 88 | Weight: 9.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 242 | Set Price: 347/000 | Tonnage: 20
501-8800MPN: UR-303 | 30T * 50MM(UR-303) | Outer Diameter: 103 | Weight: 6.6 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 147 | Set Price: 314/000 | Tonnage: 30
501-8819MPN: UR-302 | 30T * 100MM(UR-302) | Outer Diameter: 103 | Weight: 11.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 197 | Set Price: 340/000 | Tonnage: 30
501-8828MPN: UR-301 | 30T * 150MM(UR-301) | Outer Diameter: 103 | Weight: 12.6 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 247 | Set Price: 395/000 | Tonnage: 30
501-8837MPN: UR-503 | 50T * 50MM(UR-503) | Outer Diameter: 128 | Weight: 11.4 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 151 | Set Price: 366/000 | Tonnage: 50
501-8846MPN: UR-502 | 50T * 100MM(UR-502) | Outer Diameter: 128 | Weight: 16.4 | Stroke: 100 | Compatible Pump: UP-2A | Self Height: 202 | Set Price: 388/000 | Tonnage: 50
501-8855MPN: UR-501 | 50T * 150MM(UR-501) | Outer Diameter: 128 | Weight: 19.4 | Stroke: 150 | Compatible Pump: UP-2A | Self Height: 252 | Set Price: 435/000 | Tonnage: 50
501-8864MPN: UR-1003 | 100T * 50MM(UR-1003) | Outer Diameter: 178 | Weight: 24 | Stroke: 50 | Compatible Pump: UP-2A | Self Height: 160 | Set Price: 544/000 | Tonnage: 100
501-8873MPN: UR-1002 | 100T * 100MM(UR-1002) | Outer Diameter: 178 | Weight: 35.7 | Stroke: 100 | Compatible Pump: UP-3A | Self Height: 225 | Set Price: 820/000 | Tonnage: 100
501-8882MPN: UR-1001 | 100T * 150MM(UR-1001) | Outer Diameter: 178 | Weight: 41.7 | Stroke: 150 | Compatible Pump: UP-3A | Self Height: 275 | Set Price: 869/000 | Tonnage: 100
501-9012MPN: UP-1B | UP-1B | Overall Length: 620 | Weight: 7 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 800 | Compatible Ram: 30T-100mm
501-9021MPN: UP-2A | UP-2A | Overall Length: 656 | Weight: 9 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/000 | Compatible Ram: 100T-50mm
501-9030MPN: UP-3A | UP-3A | Overall Length: 656 | Weight: 10.5 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm
516-3243MPN: UP-3AN | ★UP-3AN | Overall Length: 675 | Weight: 16.2 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 3/000 | Compatible Ram: 100T-150mm
592-9463MPN: UR-054 | 5T * 50MM(UR-054) | Outer Diameter: 46 | Weight: 1.1 | Stroke: 50 | Compatible Pump: UP-1B | Self Height: 145 | Set Price: 248/700 | Tonnage: 5
592-9472MPN: UR-055 | 5T * 100MM(UR-055) | Outer Diameter: 46 | Weight: 1.6 | Stroke: 100 | Compatible Pump: UP-1B | Self Height: 195 | Set Price: 262/000 | Tonnage: 5
592-9481MPN: UR-056 | 5T * 150MM(UR-056) | Outer Diameter: 46 | Weight: 2.1 | Stroke: 150 | Compatible Pump: UP-1B | Self Height: 245 | Set Price: 314/000 | Tonnage: 5
593-7143MPN: UP-1BC | ★UP-1BN | Overall Length: 600 | Weight: 10.6 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 700 | Compatible Ram: 30T-100mm
593-7152MPN: UP-2AC | ★UP-2AN | Overall Length: 715 | Weight: 16 | Note: Hose: 1.8m Thread Coupler | Tank Capacity: 2/700 | Compatible Ram: 100T-50mm
