• UDT UW200-18 Winch Electric Wire Winch
1 1

UDT UW200-18 Winch Electric Wire Winch

UDT UW200-18 Winch Electric Wire Winch

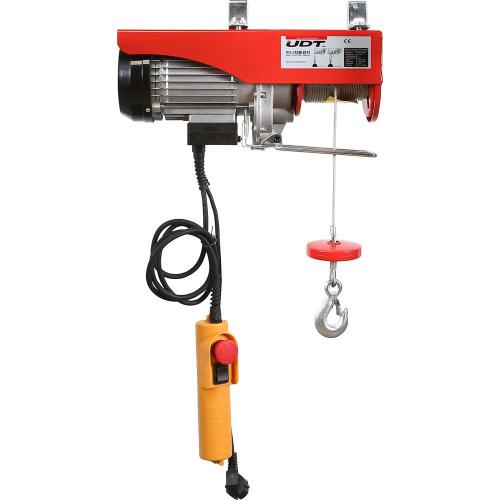

The UDT UW200-18 is an electric wire winch designed for powered lifting and pulling applications, sourced direct from Korea.

Key features

  • Electric wire winches of this type are commonly used in construction, manufacturing, and workshop environments where controlled cable-driven load movement is required

Specifications

Speed 8
Power Source Single-Phase 220V
Wire Length 18
500-4056 MPN: UW200-18 | UW200-18(=PA-200C) | Capacity: 100 | Weight: 11.5 | Motor: 450 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18
500-4065 MPN: UW300-18 | UW300-18(=PA-300C) | Capacity: 150 | Weight: 12.5 | Motor: 550 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18
500-4074 MPN: UW500-18 | UW500-18(=PA-500C) | Capacity: 250 | Weight: 17.5 | Motor: 900 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 4.2 | Wire Length: 18
501-4327 MPN: UW400-18 | UW400-18(=PA-400C) | Capacity: 200 | Weight: 16.5 | Motor: 750 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.8 | Wire Length: 18
501-4336 MPN: UW600-18 | UW600-18(=PA-600C) | Capacity: 300 | Weight: 23.0 | Motor: 1/050 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 4.5 | Wire Length: 18
501-4345 MPN: UW800-18 | UW800-18(=PA-800C) | Capacity: 400 | Weight: 25.0 | Motor: 1/350 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 5.1 | Wire Length: 18
501-4354 MPN: UW1000-18 | UW1000-18(=PA-1000C) | Capacity: 490 | Weight: 34.5 | Motor: 1/600 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 5.6 | Wire Length: 18
593-0283 MPN: UW250-18 | UW250-18(=PA-250C) | Capacity: 125 | Weight: 12.0 | Motor: 500 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18
Hoists & WinchesUDT
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

UDT UW200-18 Winch Electric Wire Winch

Brand UDT·Hoists & Winches

Available part numbers (8)

500-4056, 500-4065, 500-4074, 501-4327, 501-4336, 501-4345, 501-4354, 593-0283

How to order

Send the UDT part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
500-4056MPN: UW200-18 | UW200-18(=PA-200C) | Capacity: 100 | Weight: 11.5 | Motor: 450 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18
500-4065MPN: UW300-18 | UW300-18(=PA-300C) | Capacity: 150 | Weight: 12.5 | Motor: 550 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18
500-4074MPN: UW500-18 | UW500-18(=PA-500C) | Capacity: 250 | Weight: 17.5 | Motor: 900 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 4.2 | Wire Length: 18
501-4327MPN: UW400-18 | UW400-18(=PA-400C) | Capacity: 200 | Weight: 16.5 | Motor: 750 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.8 | Wire Length: 18
501-4336MPN: UW600-18 | UW600-18(=PA-600C) | Capacity: 300 | Weight: 23.0 | Motor: 1/050 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 4.5 | Wire Length: 18
501-4345MPN: UW800-18 | UW800-18(=PA-800C) | Capacity: 400 | Weight: 25.0 | Motor: 1/350 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 5.1 | Wire Length: 18
501-4354MPN: UW1000-18 | UW1000-18(=PA-1000C) | Capacity: 490 | Weight: 34.5 | Motor: 1/600 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 5.6 | Wire Length: 18
593-0283MPN: UW250-18 | UW250-18(=PA-250C) | Capacity: 125 | Weight: 12.0 | Motor: 500 | Speed: 8 | Power Source: Single-Phase 220V | Wire Diameter: 3.0 | Wire Length: 18

Need a different model, or a part not listed here? Send us your parts list →
