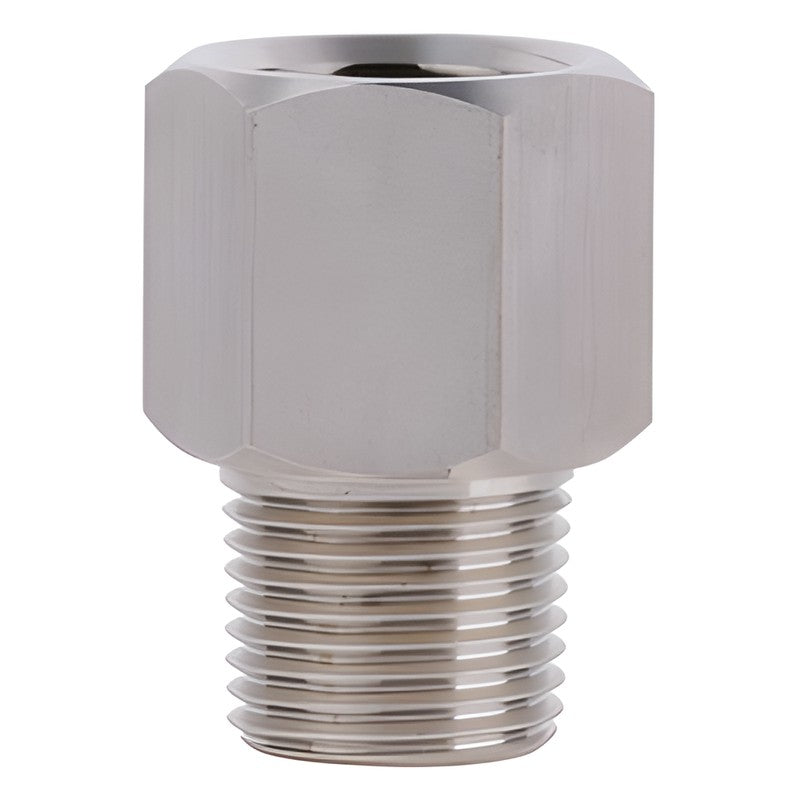

WISE A010 Union Adapter for Pressure Instruments

WISE A010 Union Adapter for Pressure Instruments

The WISE A010 union adapts a pressure tap to a pressure instrument with a different thread size. It is supplied as a union, nipple or plug in stainless steel or PVC.

Key features

  • Adapts process tap size to instrument thread size
  • Union, nipple and plug versions
  • Stainless steel up to 40 MPa at 20 °C (G½")
  • PF, PT, NPT, G, UNF and BSP thread options
  • Nipple lengths 75 mm and 100 mm available

Specifications

Union type Union, nipple, plug
Material 304SS, 316SS, 316L SS, 304L SS, PVC
Max. working pressure Stainless steel: up to 40 MPa at 20 °C, G½"
Working temperature -10 to 120 °C
Gauge connection size ⅛" to ½"
Gauge connection type PF, PT, NPT, G (F); UNF; NPT (M); BSP (F)
Process connection size ⅛" to 1", ⁷⁄₁₆"
Process connection type PF, PT, G, NPT (M); UNF; BSP (M); S.W; NPT (F)
Ordering options Union type, material, connection sizes/types, vent cock plug, nipple length
Source WISE data sheet AD00-01
A010 Type: Union/nipple/plug | Max. pressure: 40 MPa | Temp.: -10 to 120 °C
Gauge AccessoriesWISE
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A010 Union Adapter for Pressure Instruments

Brand WISE·Gauge Accessories

Available part numbers (1)

A010

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A010Type: Union/nipple/plug | Max. pressure: 40 MPa | Temp.: -10 to 120 °C
