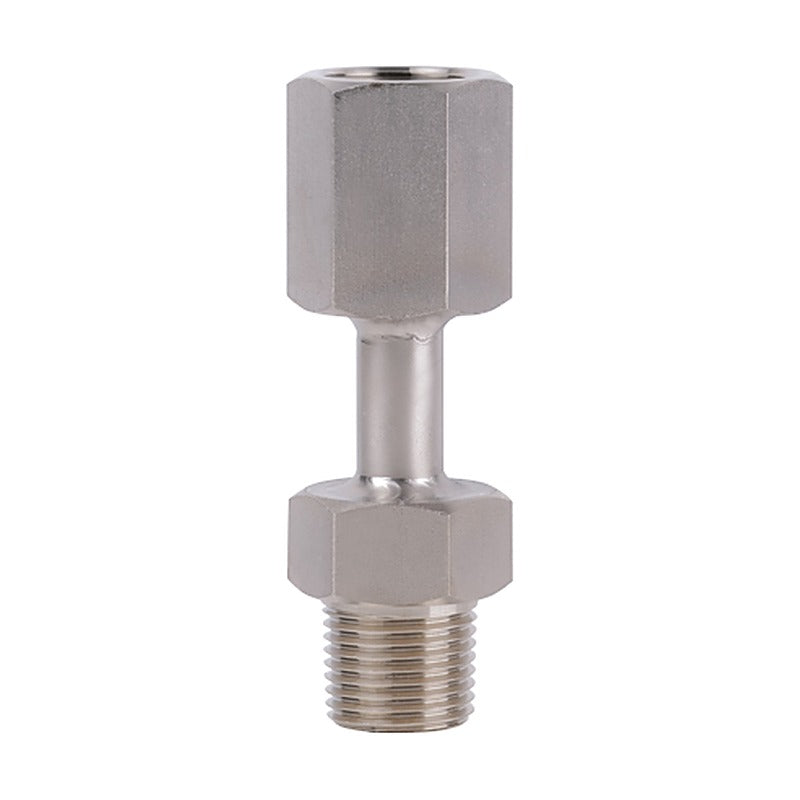

WISE A020 Gauge Union

WISE A020 Gauge Union

The WISE A020 gauge union provides positive sealing while allowing the pressure gauge to be oriented in any direction. Taper thread, straight thread, tube end, socket weld, pipe end and flanged versions are available.

Key features

  • Gauge can be turned to any direction while sealing positively
  • Max. working pressure 200 bar
  • Six process-side types: taper, straight, tube end, socket weld, pipe end, flange
  • 304SS, 316SS, 316L SS, Monel and Hastelloy-C276
  • ASME B16.5 and JIS flange ratings for flanged type

Specifications

Union type Taper thread (Q), straight thread (P), tube end (N), socket welding (R), pipe end (S), flange (T)
Material 304SS, 316SS, 316L SS, Monel, Hastelloy-C276
Max. working pressure 200 bar
Working temperature -10 to 120 °C
Gauge connection ⅜", ½" PF, PT, NPT (F)
Process connection ⅜", ½", ¾" PT/NPT/PF (M), Ø10.5 tube end, S.W, pipe end
Flange (type T) ½" to 2" (15A to 50A), B16.5 150#/300#/600#, JIS 10K to 30K, RF/FF
Ordering options Union type, material, connection sizes/types, flange size/rating, pipe size
Source WISE data sheet AD00-02
A020 Max. pressure: 200 bar | Temp.: -10 to 120 °C | Types: Q, P, N, R, S, T
