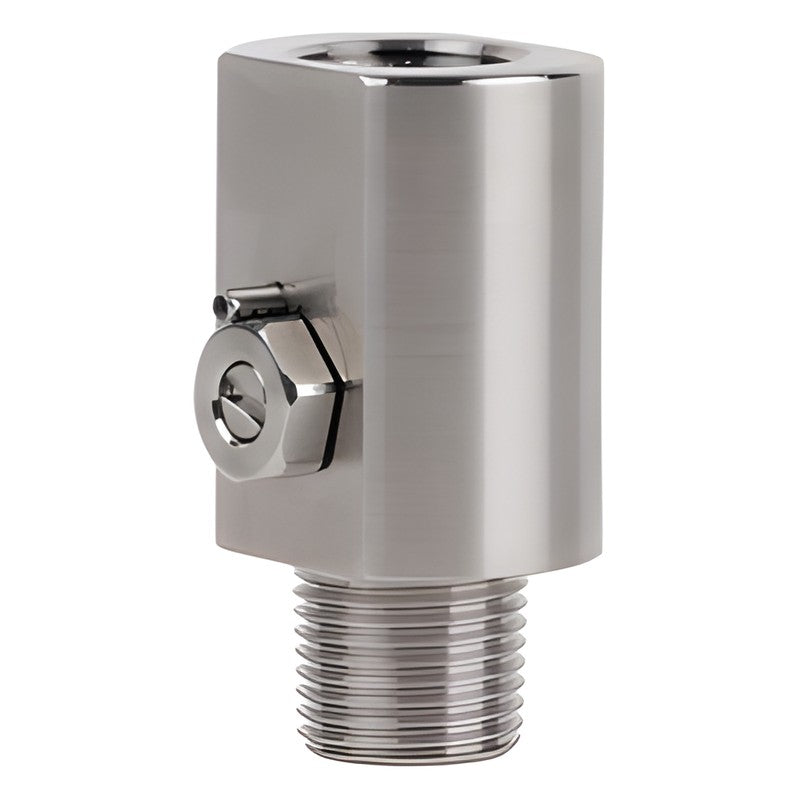

WISE A040 Pulsation Dampener

The WISE A040 pulsation dampener reduces the pressure pulsation from pumps or air compressors so the pressure gauge can be read easily.

Key features

Reduces pressure pulsation from pumps and compressors
Max. static pressure up to 35 MPa
Max. working temperature 232 °C
PTFE packing (-54 to 232 °C)
316SS, 316L SS or Monel body

Specifications

Material	316SS, 316L SS, Monel
Max. static pressure	Up to 35 MPa
Max. working temperature	232 °C
Packing	PTFE (-54 to 232 °C)
Gauge connection	¼", ⅜", ½" PF, PT, NPT (F)
Process connection	¼", ⅜", ½" PF, PT, NPT (M)
Ordering options	Material, gauge/process connection size and type
Source	WISE data sheet AD00-04

A040

Max. pressure: 35 MPa | Max. temp.: 232 °C | Packing: PTFE
