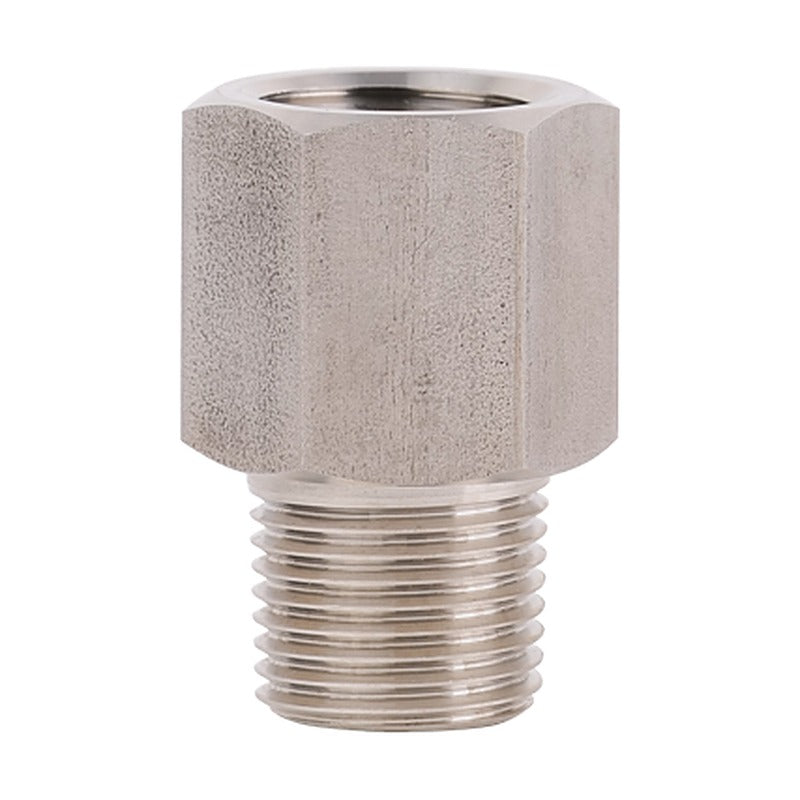

WISE A050 Snubber with Adjustable Needle Valve

WISE A050 Snubber with Adjustable Needle Valve

The WISE A050 snubber suppresses the effect of pressure pulses and pressure spikes. An adjustable needle valve restricts the flow as operating conditions demand.

Key features

  • Suppresses pressure pulses and spikes
  • Adjustable needle valve to restrict flow
  • Stainless steel up to 35 MPa at 20 °C (G½")
  • Working temperature -10 to 120 °C
  • PF, PT and NPT threads ¼" to ½"

Specifications

Material 316SS, 316L SS
Max. working pressure Stainless steel: up to 35 MPa at 20 °C, G½"
Working temperature -10 to 120 °C
Gauge connection ¼", ⅜", ½" PF, PT, NPT (F)
Process connection ¼", ⅜", ½" PF, PT, NPT (M)
Ordering options Material, gauge/process connection size and type
Source WISE data sheet AD00-05
A050 Max. pressure: 35 MPa | Temp.: -10 to 120 °C | Needle valve: Adjustable
Gauge AccessoriesWISE
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A050 Snubber with Adjustable Needle Valve

Brand WISE·Gauge Accessories

Available part numbers (1)

A050

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A050Max. pressure: 35 MPa | Temp.: -10 to 120 °C | Needle valve: Adjustable
