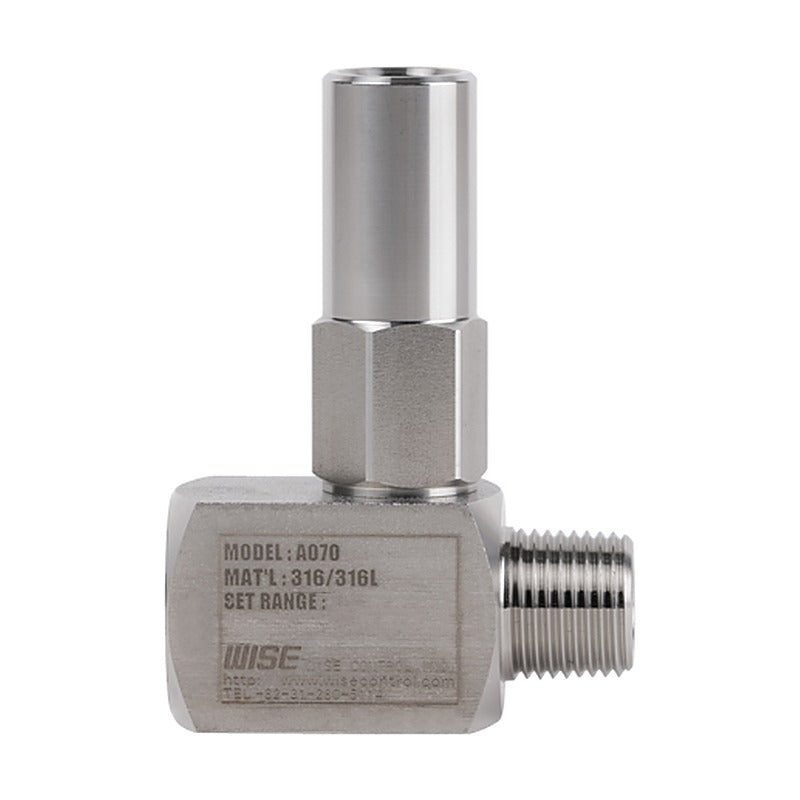

WISE A070 Gauge Protector for Overpressure

The WISE A070 gauge protector shields pressure gauges from overpressure by closing at an adjusted set-point pressure.

Key features

Closes at the adjusted set-point pressure
Set-point accuracy ±10 % of setting pressure
Set ranges from 1 kPa to 25 MPa
Cap type with anti-loosening cap available
316SS, 316L SS, Monel or Hastelloy-C

Specifications

Accuracy	±10 % of setting pressure
Set pressure ranges	1-3 kPa, 3-15 kPa, 15-50 kPa, 40-60 kPa, 60 kPa-0.3 MPa, 0.3-4 MPa, 4-25 MPa
Max. working pressure	Codes M, N, H, U, O, P, Q, R: 25 MPa; codes B, P, L: 10 bar (at 20 °C, G½")
Max. working temperature	80 °C
Material	316SS, 316L SS, Monel, Hastelloy-C
Gauge connection	⅜", ½" PF, PT, NPT, BSP (G)
Process connection	⅜", ½" PF, PT, BSP (G), NPT
Ordering options	Pressure range (standard or cap type), material, connection sizes/types
Source	WISE data sheet AD00-07

A070

Set range: 1 kPa to 25 MPa | Accuracy: ±10 % of setting

Gauge AccessoriesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A070 Gauge Protector for Overpressure

Brand WISE·Gauge Accessories

Available part numbers (1)

A070

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	A070	Set range: 1 kPa to 25 MPa \| Accuracy: ±10 % of setting
