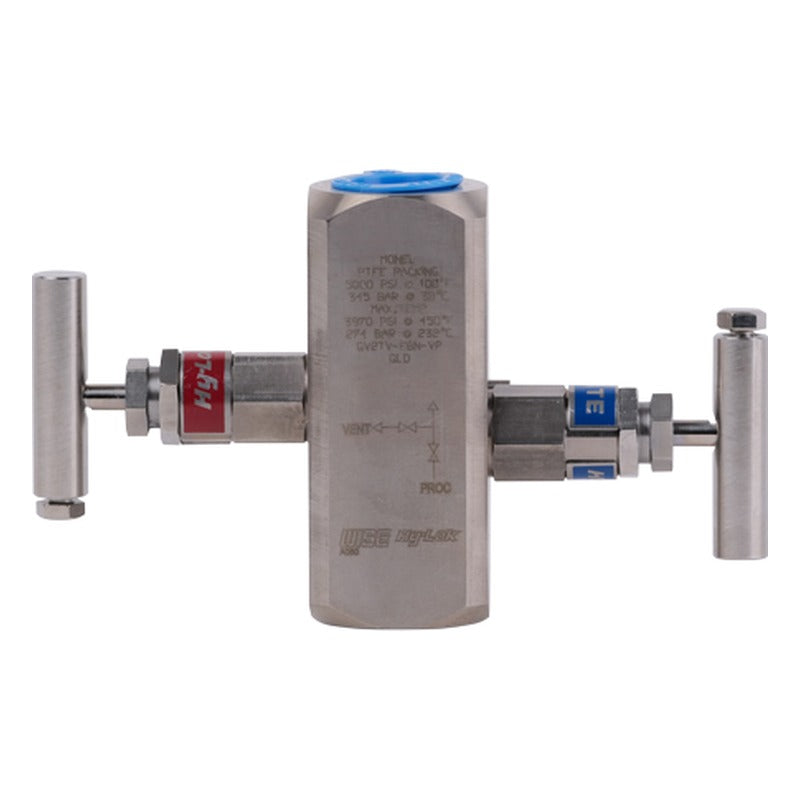

WISE A080 (S,W) Instrument Valve

WISE A080 (S,W) Instrument Valve

The WISE A080 (S,W) instrument valve switches flow between one common connection and two other connections. It is used with pressure gauges and pressure transmitters.

Key features

  • Isolation valve and 2-way manifold valve types
  • Max. static pressure up to 41 MPa
  • PTFE packing (-54 to 232 °C) or graphite (-54 to 648 °C)
  • NPT (F) or NPT (M) connections ¼" to ¾"
  • Optional bleed with plug

Specifications

Valve type Isolation valve (S), 2-way manifold valve mount type (V), 2-way manifold valve (W)
Max. static pressure Up to 41 MPa
Max. working temperature 232 °C
Packing PTFE (-54 to 232 °C), graphite (-54 to 648 °C)
Material 316SS, 316L SS, Hastelloy-C, Monel, Inconel
Gauge / process connection ¼", ½", ¾" NPT (F) or NPT (M)
Bleed None, bleed, bleed with plug; ¼" or ½" NPT (F)
Ordering options Valve type, connection sizes/types, packing, bleed and plug, material
Source WISE data sheet AD00-08
A080 (S,W) Max. pressure: 41 MPa | Types: Isolation/2-way manifold
