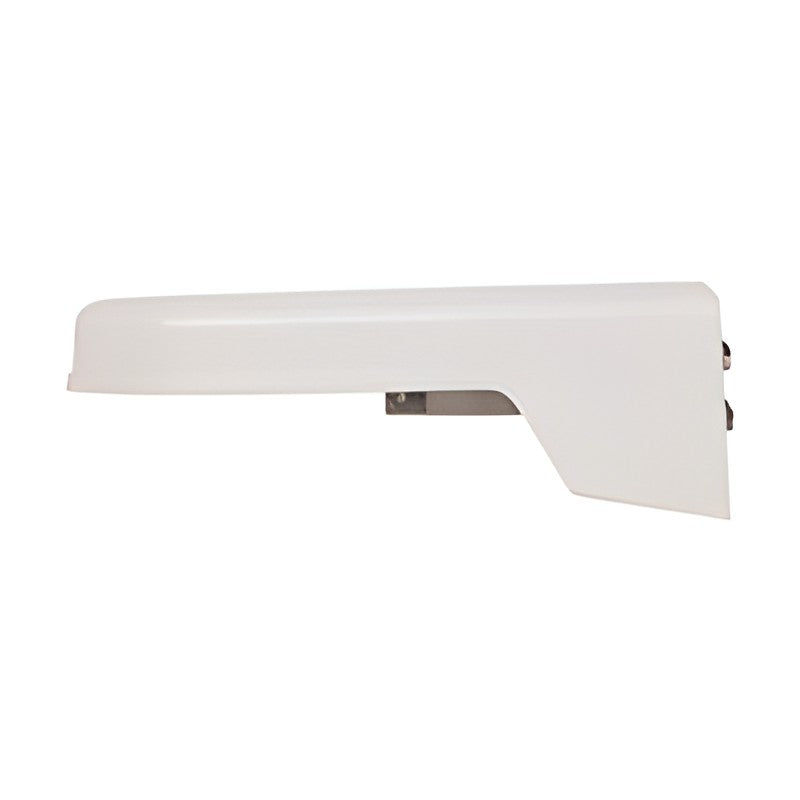

WISE A090 Instrument Sunshade

The WISE A090 sunshade protects field instruments from solar radiation, dirt accumulation and atmospheric exposure, preventing calibration drift caused by temperature changes. It mounts on a 2" stanchion pipe and removes easily for full access.

Key features

Reduces instrument and enclosure surface temperature
Minimizes instrument drift
UV coating; operating temperature -15 to 100 °C
Six standard sizes SS230 to SS410
Mounts on a typical 2" stanchion pipe

Specifications

Sunshade types (W x D x H)	SS230 (230x370x125), SS280 (280x350x125), SS300 (300x350x170), SS320 (300x300x130), SS400 (400x400x170), SS410 (410x350x170) mm
Sunshade material	GRP 3.5 t; 304SS, 316SS, carbon steel 1.5 t; ABS (SS280 only)
Bracket material	304SS, 316SS, 316L SS
Operating temperature	-15 to 100 °C
Gauge bracket size	Ø90, Ø93, Ø103, Ø130 mm
Bracket mounting	Back, top, 2" U bolt, pipe band, L-type, special
Option	Anti electrostatic
Ordering options	Sunshade type, material, gauge bracket, mounting position, stanchion pipe
Source	WISE data sheet AD00-10

A090

Sizes: SS230 to SS410 | Material: GRP/SS/CS/ABS

Gauge AccessoriesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A090 Instrument Sunshade

Brand WISE·Gauge Accessories

Available part numbers (1)

A090

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	A090	Sizes: SS230 to SS410 \| Material: GRP/SS/CS/ABS
