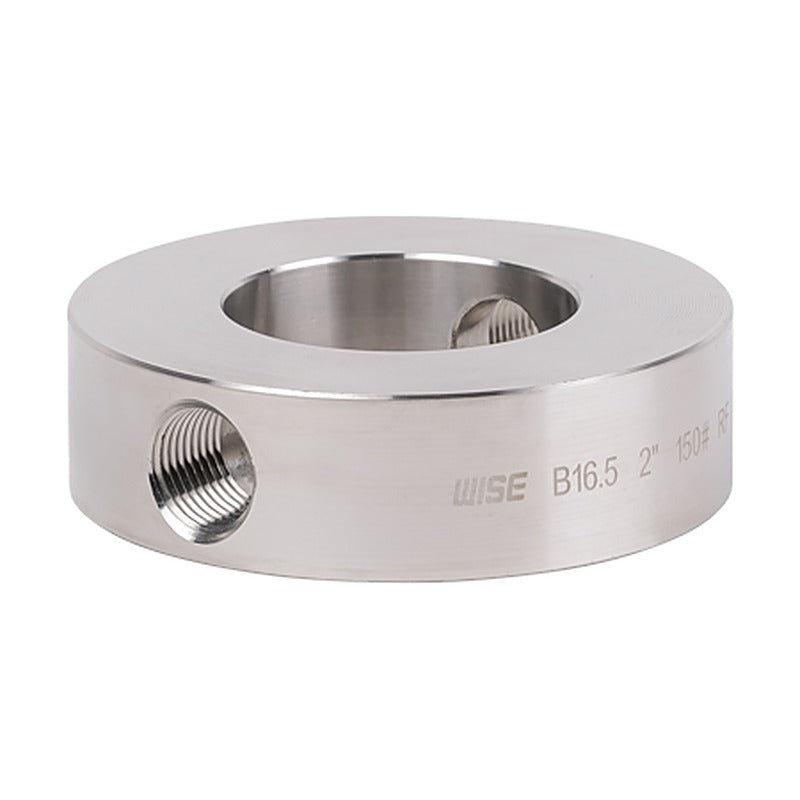

WISE A100 Flushing Ring for Diaphragm Seals

The WISE A100 flushing ring is sandwiched between the process flange and a flange, pancake or inline diaphragm seal. Lateral NPT ports flush out process medium collected in front of the diaphragm and can also vent the process.

Key features

Fits between process flange and diaphragm seal
One or two lateral NPT flushing ports
Process connections ½" to 4" per ASME
Stainless, Monel, Hastelloy-C, PTFE-coated and PTFE/PVC materials
Optional plugs, nipples and isolation valves

Specifications

Process connection	ANSI ½" to 4" per ASME; JIS flanges available
Flange ratings	B16.5 Class 150 to 2,500 (RF/FF/RTJ), JIS 10K to 40K
Ring material	304SS, 304L SS, 316SS, 316L SS, Monel, Hastelloy-C, PTFE-coated SS, PTFE, PVC
Flushing ports	One or two, ¼", ⅜", ½" NPT (F)
Nipple / plug	With plug, with nipple, plug and nipple
Isolation valve material	316SS/316L SS, Monel, Hastelloy-C, Teflon
Gaskets	Valve: Teflon, graphite; flange: Teflon, spiral wound, oval (RTJ)
Ordering options	Material, process connection, port size, nipple/plug, valve, gaskets
Source	WISE data sheet AD01-01

A100

Process conn.: ½" to 4" ASME | Ports: ¼" to ½" NPT
