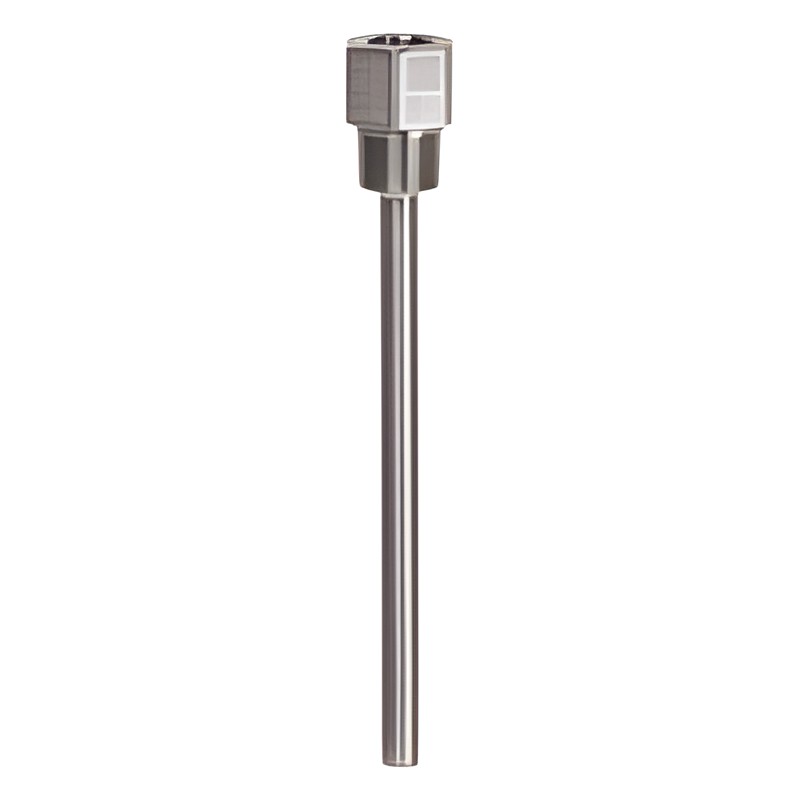

WISE A500, A510 Close-End Tube Type Thermowell

WISE A500/A510 series thermowells are pipe or tube wells with one end sealed, protecting temperature sensors and gauges in slow-flow process lines and vessels. A500 uses a thread connection and A510 a flange connection, with insertion length made to order.

Key features

Pipe or tube construction with sealed tip
Thread (A500) or flange (A510) process connection, with or without extension
Metallic and ceramic (SSA-S, GK-SiC) well materials
Insertion length U from 80 mm to 10,000 mm
Optional plug and chain; supplied as well only or for gauge / sensor

Specifications

Construction	Pipe or tube with one end sealed
Well material	304SS, 316SS, 304L SS, 316L SS, 310SS, 321SS, Inconel 600, Hastelloy C276, Monel400, SSA-S, GK-SiC
Instrument connection	½" / ¾" NPT, PT, PF
Process connection (A500)	NPT, PT, PF ½" to 2"
Process connection (A510)	Flange per process connection table
Metal pipe (tube) OD x t	10 x 1t to 21.7 x 2.8t mm
Non-metal pipe OD x t	13 x 2t to 25 x 2.5t mm
Insertion length U	80 to 10,000 mm
"T" length	45 mm (A500); 45 / 50 / 70 mm (A510)
Ordering options	Connector / flange material, sleeve OD, plug and chain, well only / for TG / for TE
Source	WISE data sheet AD05-01

A5001		Connection: Thread \| Extension: Yes
A5100		Connection: Flange \| Extension: No
A5101		Connection: Flange \| Extension: Yes

ThermowellsWISE

3 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A500, A510 Close-End Tube Type Thermowell

Brand WISE·Thermowells

Available part numbers (3)

A5001, A5100, A5101

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	A5001	Connection: Thread \| Extension: Yes
	A5100	Connection: Flange \| Extension: No
	A5101	Connection: Flange \| Extension: Yes
