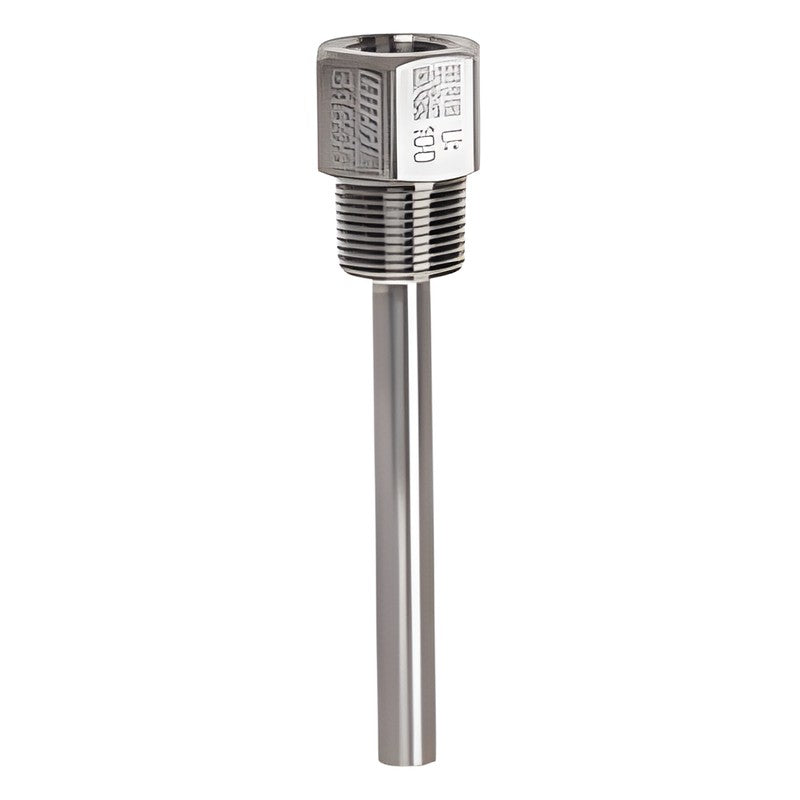

WISE A600 Bar Stock Thermowell with Thread Connection

WISE A600 series thermowells are machined from solid round bar with no welded areas and screw directly into the process line. They are intended for lines with pressure and flow, in straight, tapered or stepped profiles.

Key features

Seamless solid bar stock construction, no welds
Straight, tapered and stepped profiles, with or without extension
NPT, PT or PF process thread up to 1"
Standard wall thickness 3.5 mm (min. 2.5 mm)
Wake frequency calculation to ASME PTC 19.3 available as engineering service

Specifications

Construction	Solid round bar, internally bored
Well material	304SS, 316SS, 304L SS, 316L SS, 310SS, 321SS, 446SS, A182F304, Inconel 600, Hastelloy C276, Monel400, Titanium, other
Instrument connection	½" / ¾" NPT, PT, PF
Process connection	NPT, PT, PF ½" / ¾" / 1" (max. root dia. 17 / 22 / 27 mm)
Bore / tip OD	7/14 to 12/19 mm
"T" length	45 mm (WISE std.) or longer
Wall thickness	3.5 mm standard, 2.5 mm minimum
Ordering options	Root diameter, immersion length U, step length U1, plug and chain, well only / for TG / for TE
Source	WISE data sheet AD06-01

A6001		Profile: Straight \| Extension: Yes
A6010		Profile: Tapered \| Extension: No
A6011		Profile: Tapered \| Extension: Yes
A6020		Profile: Stepped \| Extension: No
A6021		Profile: Stepped \| Extension: Yes

ThermowellsWISE

5 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A600 Bar Stock Thermowell with Thread Connection

Brand WISE·Thermowells

Available part numbers (5)

A6001, A6010, A6011, A6020, A6021

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	A6001	Profile: Straight \| Extension: Yes
	A6010	Profile: Tapered \| Extension: No
	A6011	Profile: Tapered \| Extension: Yes
	A6020	Profile: Stepped \| Extension: No
	A6021	Profile: Stepped \| Extension: Yes
