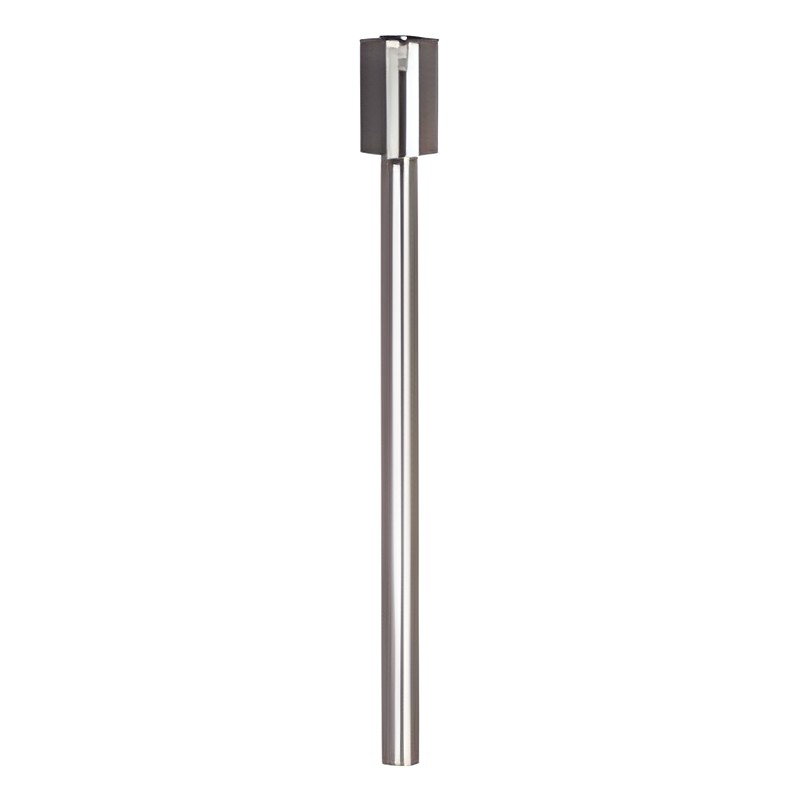

WISE A630 Bar Stock Thermowell with Welded Connection

WISE A630 Bar Stock Thermowell with Welded Connection

WISE A630 series bar stock thermowells are welded directly onto a socket or pipe for semi-permanent installation in high steam or vapour lines. Material and specification should be fixed before welding.

Key features

  • Solid bar stock well for welded installation
  • Straight, tapered and stepped socket-weld profiles
  • Tapered weld-in (W.I) version A6311
  • Socket weld sizes ¾" to 2"
  • Wake frequency calculation to ASME PTC 19.3 available as engineering service

Specifications

Construction Solid bar stock, welded process connection
Well material 304SS, 316SS, 304L SS, 316L SS, 310SS, 321SS, 446SS, A182F304/F316/F11, A105, Inconel 600, Incoloy800, Hastelloy C276, Monel400, Titanium
Process connection ¾", 1", 1¼", 1½", 2" S.W (Ø26.5 to Ø60); W.I for A6311
Instrument connection ½" / ¾" NPT, PT, PF
"T" length 45 mm (WISE std.) or longer
Immersion length U From 80 mm, made to order
Surface options Buffing, electro polishing, PTFE coating, PTFE/PFA lining
Ordering options Bore / tip OD, root diameter, step length U1, accessories
Source WISE data sheet AD06-04
A6300 Profile: Straight | Connection: Socket weld
A6310 Profile: Tapered | Connection: Socket weld
A6320 Profile: Stepped | Connection: Socket weld
A6311 Profile: Tapered | Connection: Weld-in
ThermowellsWISE
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A630 Bar Stock Thermowell with Welded Connection

Brand WISE·Thermowells

Available part numbers (4)

A6300, A6310, A6320, A6311

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A6300Profile: Straight | Connection: Socket weld
A6310Profile: Tapered | Connection: Socket weld
A6320Profile: Stepped | Connection: Socket weld
A6311Profile: Tapered | Connection: Weld-in
