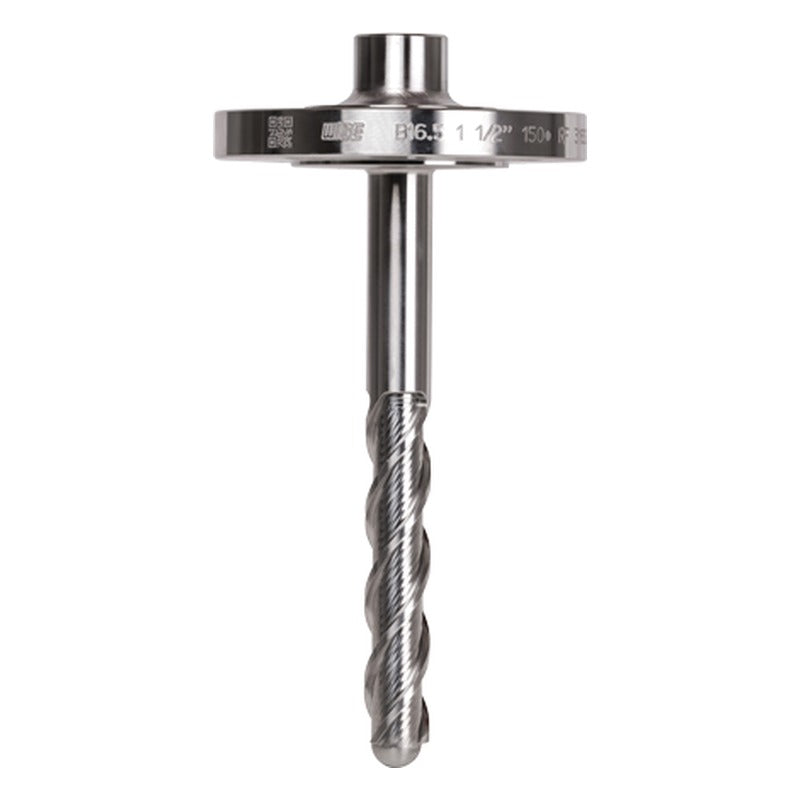

WISE A650 Helical Strake Type Thermowell

WISE A650 Helical Strake Type Thermowell

WISE A650 series thermowells carry helical strakes that suppress vortex-induced vibration (VIV), reducing oscillation amplitude by 70 % per the data sheet. They can often be installed without a support collar or nozzle change.

Key features

  • Helical strake profile reduces vortex-induced vibration
  • Calculated per ASME PTC 19.3 TW-2016
  • Flanged, Vanstone and socket types
  • Flanges PN10 to PN40, 150Lb to 2500Lb, JIS 10K/20K
  • Optional full-penetration welding (flanged type)

Specifications

Well / flange material 304SS, 316SS, 304L SS, 316L SS, 310SS, other
Internal connection ½" NPT, PF, PT
Flange size 1" (25A) to 4" (100A)
Process connection type PN10-PN40 RF; 150-2500Lb FF/RF/RFSF/RTJ; 10K/20K FF/RF/RFSF
Insertion length U 200 to 1,000 mm
"T" length 45 mm, below 50 mm, above 50 mm
Ordering options Tip OD / bore, plug and chain, F.P welding (flanged only)
Source WISE data sheet AD06-06
A6510 Type: Flanged
A6520 Type: Vanstone
A6530 Type: Socket
ThermowellsWISE
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE A650 Helical Strake Type Thermowell

Brand WISE·Thermowells

Available part numbers (3)

A6510, A6520, A6530

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
A6510Type: Flanged
A6520Type: Vanstone
A6530Type: Socket
