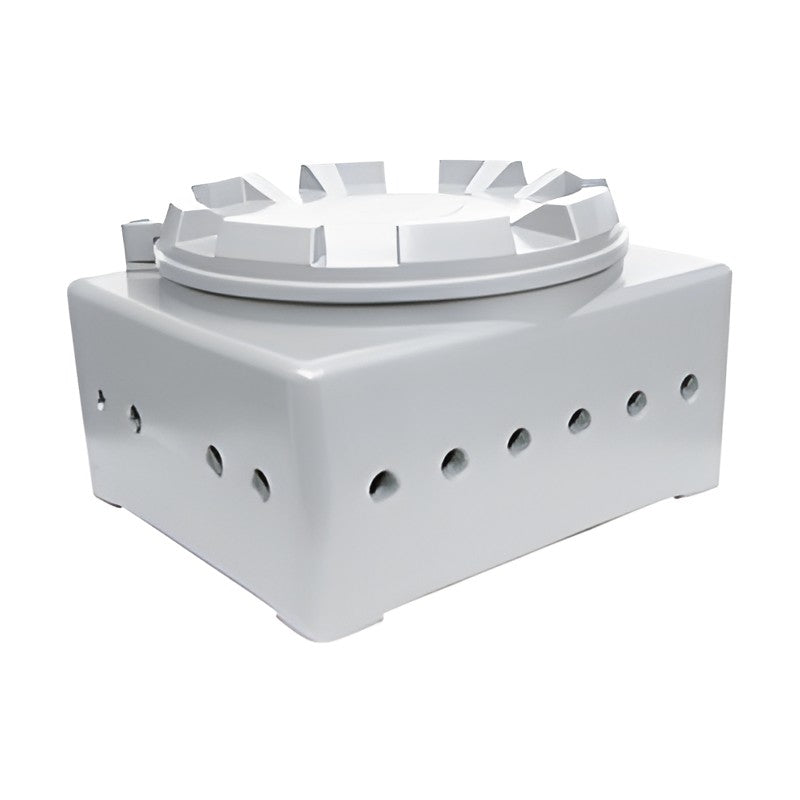

WISE B500 Explosion Proof Field Junction Box

WISE B500 series field junction boxes are cast aluminium enclosures for terminating instrument wiring in hazardous areas. They carry ATEX and IECEx certification for Ex d, Ex e, Ex ia/ib and dust (Ex tb) protection.

Key features

ATEX and IECEx certified enclosure
IP67 / IP68 ingress protection
Two sizes: 250 x 200 x 209 mm and 350 x 300 x 210 mm
Cast aluminium alloy body
Suitable for RTD, thermocouple and DC signal circuits

Specifications

Certificates	ATEX II 2G Ex d ia/ib IIC T6 Gb, II 2G Ex e IIC T6 Gb, II 2D Ex tb IIIC T85 °C Db; IECEx Ex d ia/ib IIC T6 Gb, Ex e IIC T6 Gb, Ex tb IIIC T85 °C Db
Degree of protection	IP67 / IP68 (IEC 60529)
Size (W x L x H)	250 x 200 x 209 mm; 350 x 300 x 210 mm
Material	Cast aluminium alloy
Ambient temperature	-40 to +70 °C
Electrical rating	Max. 250 V, 20 A
Signals	RTD 1 mA (max. 5 mA); TC 0-80 mV; DC max. 36 V 20 mA
Ordering options	Explosion proof type, box size, cable entries
Source	WISE data sheet BD05-01

B500

Size: 250x200 or 350x300 mm | IP: 67/68

Junction BoxesWISE

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

WISE B500 Explosion Proof Field Junction Box

Brand WISE·Junction Boxes

Available part numbers (1)

B500

How to order

Send the WISE part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
